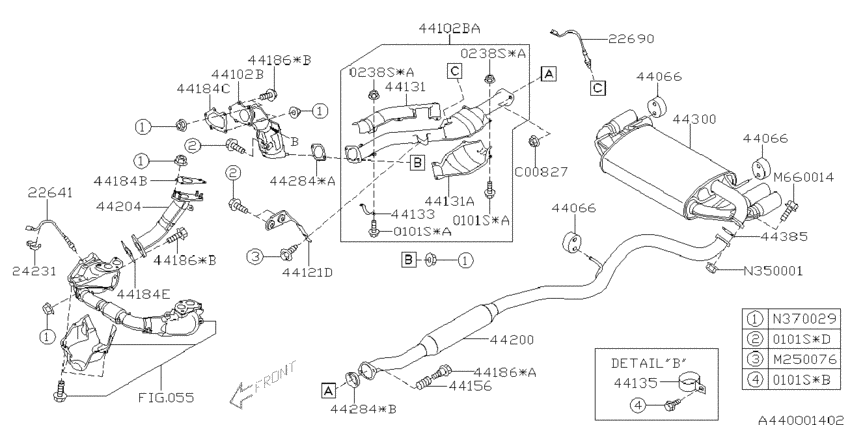

Exhaust (EXHAUST & MUFFLER; 257; 2007-06-01~) Diagram Subaru IMPREZA
- Year
- 2007 - 2011
- Sales region
- Europe
- Engine
- 257
- drive
- 4W
- transmission
- 6MT
- grade
- STI
- body
- W
- Destinat
- LH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0101S
|
0101S
010106160 FLANGE BOLT-PILOT2007-06-01 ~ 2008-10-01; 257 |
010106160 |
US $0.28 |
||
|
0101S
|
0101S
010106200 FLANGE BOLT2007-06-01 ~ 2008-10-01; 257 |
010106200 |
from US $0.46 |
||
|
0101S
|
0101S
010110250 FLANGE BOLTPLT2007-06-01 ~ 2008-10-01; 257 |
010110250 |
from US $0.48 |
||
|
0101S
|
0101S
010106160 FLANGE BOLT-PILOT2007-06-01 ~ 2008-10-01; 257 |
010106160 |
US $0.28 |
||
|
0101S
|
0101S
010106200 FLANGE BOLT2007-06-01 ~ 2008-10-01; 257 |
010106200 |
from US $0.46 |
||
|
0101S
|
0101S
010110250 FLANGE BOLTPLT2007-06-01 ~ 2008-10-01; 257 |
010110250 |
from US $0.48 |
||
|
0101S
|
0101S
010106160 FLANGE BOLT-PILOT2007-06-01 ~ 2008-10-01; 257 |
010106160 |
US $0.28 |
||
|
0101S
|
0101S
010106200 FLANGE BOLT2007-06-01 ~ 2008-10-01; 257 |
010106200 |
from US $0.46 |
||
|
0101S
|
0101S
010110250 FLANGE BOLTPLT2007-06-01 ~ 2008-10-01; 257 |
010110250 |
from US $0.48 |
||
|
0101S
|
0101S
010106160 FLANGE BOLT-PILOT2007-06-01 ~ 2008-10-01; 257 |
010106160 |
US $0.28 |
||
|
0101S
|
0101S
010106200 FLANGE BOLT2007-06-01 ~ 2008-10-01; 257 |
010106200 |
from US $0.46 |
||
|
0101S
|
0101S
010110250 FLANGE BOLTPLT2007-06-01 ~ 2008-10-01; 257 |
010110250 |
from US $0.48 |
||
|
0238S
|
0238S
023806000 FLANGE NUT2007-06-01 ~ 2008-10-01; 257 |
023806000 |
from US $0.28 |
||
| replacement | |||||
|
0238S
|
0238S
023806006 FLANGE NUT2007-06-01 ~ 2008-10-01; 257 |
023806006 |
US $0.28 |
||
|
0238S
|
0238S
023806000 FLANGE NUT2007-06-01 ~ 2008-10-01; 257 |
023806000 |
from US $0.28 |
||
| replacement | |||||
|
0238S
|
0238S
023806006 FLANGE NUT2007-06-01 ~ 2008-10-01; 257 |
023806006 |
US $0.28 |
||
|
22641
|
22641
22641AA510 SEN AYAF RATIO2007-06-01 ~ 2008-10-01; 257; ND |
22641AA510 |
from US $181.71 |
||
|
22690
|
22690
22690AA850 SEN ASSYOXYGEN2007-06-01 ~ 2008-10-01; 257; ND |
22690AA850 |
from US $123.91 |
||
|
24231
|
24231
24231AA140 ｸﾘﾂﾌﾟ,NO.22007-06-01 ~ 2008-10-01; 257 |
24231AA140 |
US $2.27 |
||
|
44066
|
44066
44066AE001 CUSHIONEXH2007-06-01 ~ 2008-10-01; 257 |
44066AE001 |
from US $4.11 |
||
|
44066
|
44066
44066AE001 CUSHIONEXH2007-06-01 ~ 2008-10-01; 257 |
44066AE001 |
from US $4.11 |
||
|
44066
|
44066
44066AE001 CUSHIONEXH2007-06-01 ~ 2008-10-01; 257 |
44066AE001 |
from US $4.11 |
||
|
44102B
|
44102B
44612AA380 PIPE ASSY CTREXH2007-06-01 ~ 2008-10-01; 257 |
44612AA380 |
from US $2,156.57 |
||
|
44102BA
|
44102BA
44611AA260
PIPE AY CTREXHR
2007-06-01 ~ 2008-10-01; 257 |
44611AA260 |
— | ||
|
44121D
|
44121D
44021FE030 BRKT HGR 4WDMT2007-06-01 ~ 2008-10-01; 257 |
44021FE030 |
US $23.08 |
||
|
44131
|
44131
44132AG150 COVER PIPE R CPL UPR2007-06-01 ~ 2008-10-01; 257 |
44132AG150 |
US $41.63 |
||
|
44131A
|
44131A
44131FE100
Cover complete-front exhaust,center low
2007-06-01 ~ 2008-10-01; 257 |
44131FE100 |
— | ||
|
44133
|
44133
44133AG070 CLAMP CPL2007-06-01 ~ 2008-10-01; 257 |
44133AG070 |
US $5.38 |
||
|
44135
|
44135
44135AG000 BAND COMPL2007-06-01 ~ 2008-10-01; 257 |
44135AG000 |
US $4.53 |
||
|
44156
|
44156
44044AA010 SPRING2007-06-01 ~ 2008-10-01; 257 |
44044AA010 |
from US $1.96 |
||
|
44184B
|
44184B
44022AA150 GASKET T INLET2007-06-01 ~ 2008-10-01; 257 |
44022AA150 |
from US $3.94 |
||
|
44184C
|
44184C
44022AA180 GASKET-EXHAUST TURBO OUTLET2007-06-01 ~ 2008-10-01; 257 |
44022AA180 |
from US $5.31 |
||
|
44184E
|
44184E
44022AA170 GASKET M R2007-06-01 ~ 2008-10-01; 257 |
44022AA170 |
from US $4.13 |
||
|
44186
|
44186
44059AA010 BOLT2007-06-01 ~ 2008-10-01; 257 |
44059AA010 |
from US $1.44 |
||
|
44186
|
44186
44059AA030 FLANGE BOLT F2007-06-01 ~ 2008-10-01; 257 |
44059AA030 |
from US $3.70 |
||
|
44186
|
44186
44059AA010 BOLT2007-06-01 ~ 2008-10-01; 257 |
44059AA010 |
from US $1.44 |
||
|
44186
|
44186
44059AA030 FLANGE BOLT F2007-06-01 ~ 2008-10-01; 257 |
44059AA030 |
from US $3.70 |
||
|
44186
|
44186
44059AA010 BOLT2007-06-01 ~ 2008-10-01; 257 |
44059AA010 |
from US $1.44 |
||
|
44186
|
44186
44059AA030 FLANGE BOLT F2007-06-01 ~ 2008-10-01; 257 |
44059AA030 |
from US $3.70 |
||
|
44200
|
44200
44200FG050 EXH PIPE ASSY R2007-06-01 ~ 2008-10-01; 257 |
44200FG050 |
US $475.78 |
||
|
44204
|
44204
44614AA000 PIPE AY JTTURBO2007-06-01 ~ 2008-10-01; 257 |
44614AA000 |
US $369.58 |
||
|
44284
|
44284
44011AG000 GSKT2007-06-01 ~ 2008-10-01; 257 |
44011AG000 |
from US $9.53 |
||
|
44284
|
44284
44022AA122
GASKETCR
2007-06-01 ~ 2008-10-01; 257 |
44022AA122 |
— | ||
| replacement | |||||
|
44284
|
44284
44022AA123 GASKETCR2007-06-01 ~ 2008-10-01; 257 |
44022AA123 |
from US $10.82 |
||
|
44284
|
44284
44011AG000 GSKT2007-06-01 ~ 2008-10-01; 257 |
44011AG000 |
from US $9.53 |
||
|
44284
|
44284
44022AA122
GASKETCR
2007-06-01 ~ 2008-10-01; 257 |
44022AA122 |
— | ||
| replacement | |||||
|
44284
|
44284
44022AA123 GASKETCR2007-06-01 ~ 2008-10-01; 257 |
44022AA123 |
from US $10.82 |
||
|
44300
|
44300
44300FG120 MUFFLER ASSY2007-06-01 ~ 2008-10-01; 257 |
44300FG120 |
from US $960.83 |
||
|
44385
|
44385
44022AA131 GASKET2007-06-01 ~ 2008-10-01; 257 |
44022AA131 |
from US $3.94 |
||
|
C00827
|
C00827
802008270 NUT8X752007-06-01 ~ 2008-10-01; 257 |
802008270 |
from US $0.96 |
||
|
M250076
|
M250076
901250076 BOLT WASHER M102007-06-01 ~ 2008-10-01; 257 |
901250076 |
from US $0.44 |
||
|
M660014
|
M660014
901660014 BOLT2007-06-01 ~ 2008-10-01; 257 |
901660014 |
from US $0.54 |
||
|
N350001
|
N350001
902350001 SELF LOCK NUT102007-06-01 ~ 2008-10-01; 257 |
902350001 |
from US $0.31 |
||
|
N370029
|
N370029
902370029 FLANGE NUT2007-06-01 ~ 2008-10-01; 257 |
902370029 |
from US $0.67 |
||
