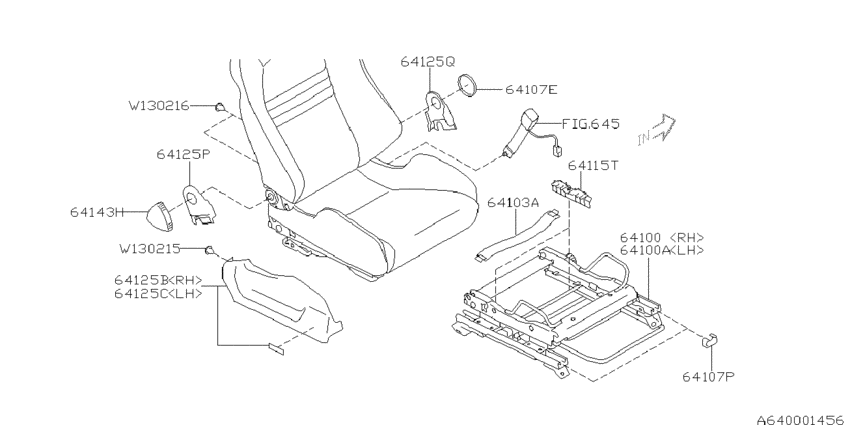

Front seat (SLIDE RAIL&HINGE(RECARO STD TYPE); W.STI; 2007-06-01~) Diagram Subaru IMPREZA
- Year
- 2007 - 2011
- Sales region
- Europe
- Engine
- 257
- drive
- 4W
- transmission
- 6MT
- grade
- STI
- body
- W
- Destinat
- LH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
64100
|
64100
64100FG020
Frame assembly-front cushion,right
2007-06-01 ~ 2008-10-01; *W.STI.LH |
64100FG020 |
— | ||
|
64100
|
64100
64100FG080
Frame assembly-front cushion,right
2007-06-01 ~ 2008-10-01; *W.STI.LH |
64100FG080 |
— | ||
|
64100A
|
64100A
64100FG010
Frame assembly-front cushion,left
2007-06-01 ~ 2008-10-01; *W.STI.LH |
64100FG010 |
— | ||
|
64100A
|
64100A
64100FG070
Frame assembly-front cushion,left
2007-06-01 ~ 2008-10-01; *W.STI.LH |
64100FG070 |
— | ||
|
64103A
|
64103A
64103AE000 ﾊﾞﾝﾄﾞ,ﾌﾛﾝﾄ ｼｰﾄ A2007-06-01 ~ 2008-10-01; W.STI |
64103AE000 |
US $1.70 |
||
|
64103A
|
64103A
64103AG000 ﾊﾞﾝﾄﾞ,ﾌﾛﾝﾄ ｼｰﾄ A2007-06-01 ~ 2008-10-01; W.STI |
64103AG000 |
US $1.56 |
||
|
64103A
|
64103A
64103FG010 ﾊﾞﾝﾄﾞ,ﾌﾛﾝﾄ ｼｰﾄ A2007-06-01 ~ 2008-10-01; *W.STI.LH |
64103FG010 |
US $52.11 |
||
|
64107E
|
64107E
64115FG220 ｷﾔﾂﾌﾟ,ﾋﾝｼﾞ ｶﾊﾞｰ2007-06-01 ~ 2008-10-01; *W.STI.LH |
64115FG220 |
US $11.89 |
||
|
64107P
|
64107P
64107FG000 CAP2007-06-01 ~ 2008-10-01; *W.STI.LH |
64107FG000 |
from US $3.81 |
||
|
64115T
|
64115T
64115FG140 ｶﾊﾞｰ2007-06-01 ~ 2008-10-01; *W.STI.LH |
64115FG140 |
US $29.74 |
||
|
64125B
|
64125B
64115AG200JC COVER HINGE OUTRH2007-06-01 ~ 2008-10-01; OFF BLACK; *W.STI.LH; T |
64115AG200JC |
US $16.85 |
||
|
64125B
|
64125B
64115FG260
Cover-hinge,front seat outer right
2007-06-01 ~ 2008-05-01; *W.STI.LH |
64115FG260 |
— | ||
|
64125B
|
64125B
64115FG261
Cover-hinge,front seat outer right
2008-06-01 ~ 2008-10-01; *W.STI.LH |
64115FG261 |
— | ||
|
64125C
|
64125C
64115AG240JC
Cover-hinge,front seat outer left
2007-06-01 ~ 2008-10-01; OFF BLACK; *W.STI.LH; T |
64115AG240JC |
— | ||
|
64125C
|
64125C
64115FG250
Cover-hinge,front seat outer left
2007-06-01 ~ 2008-05-01; *W.STI.LH |
64115FG250 |
— | ||
|
64125C
|
64125C
64115FG251
Cover-hinge,front seat outer left
2008-06-01 ~ 2008-10-01; *W.STI.LH |
64115FG251 |
— | ||
|
64125P
|
64125P
64115FG200 ｶﾊﾞｰ,ﾋﾝｼﾞ ﾌﾛﾝﾄ ｼｰﾄ ﾗｲﾄ2007-06-01 ~ 2008-10-01; *W.STI.LH |
64115FG200 |
US $14.87 |
||
|
64125Q
|
64125Q
64115FG210 ｶﾊﾞｰ,ﾋﾝｼﾞ ﾌﾛﾝﾄ ｼｰﾄ ﾚﾌﾄ2007-06-01 ~ 2008-10-01; *W.STI.LH |
64115FG210 |
US $14.87 |
||
|
64143H
|
64143H
64143FG040 KNOB DIAL2007-06-01 ~ 2008-10-01; *W.STI.LH |
64143FG040 |
US $37.24 |
||
|
W130215
|
W130215
909130215 ｸﾘﾂﾌﾟ2007-06-01 ~ 2008-10-01; *W.STI.LH |
909130215 |
US $0.99 |
||
|
W130216
|
W130216
909130216 ｸﾘﾂﾌﾟ2007-06-01 ~ 2008-10-01; *W.STI.LH |
909130216 |
US $0.99 |
