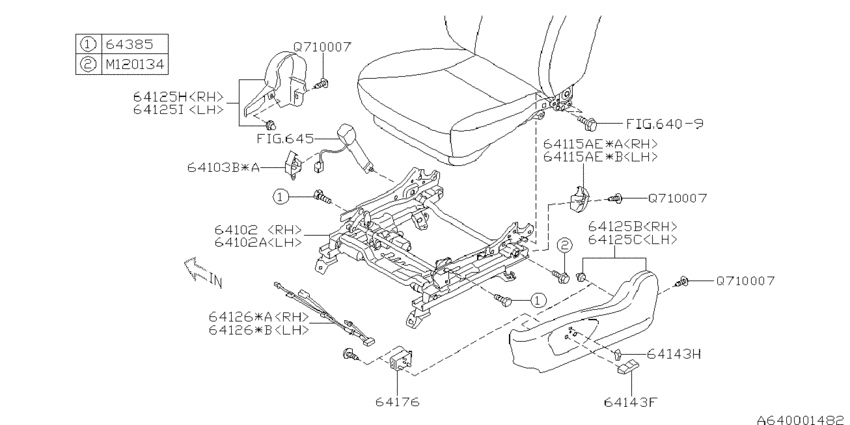

Front seat (SLIDE RAIL&HINGE(POWER); S.(20RS+WRXS+WRXSS) +W.(20RS+WRXS+WRXSS+20TDS+STI); 2008-04-01~) Diagram Subaru IMPREZA

Year
2007 - 2011
Sales region
Europe
Engine
257
drive
4W
transmission
6MT
grade
STI
body
W
Destinat
LH

Difficulties in parts search?

Parts list
Front seat

Difficulties in parts search?

Front seat
Description OEM Part # Price
64103B
64103B

64103AG010

バンド,フロント シート B

2007-06-01 ~ 2008-10-01; W.STI

64103AG010

US $1.56

64103B
64103B

64103FG000

バンド,フロント シート B

2007-06-01 ~ 2008-10-01; W.STI

64103FG000

US $1.56

64125B
64125B

64115AG200JC

COVER HINGE OUTRH

2007-06-01 ~ 2008-10-01; OFF BLACK; *W.STI.LH; T

64115AG200JC

US $16.85

64125B
64125B
64115FG260
Cover-hinge,front seat outer right

2007-06-01 ~ 2008-05-01; *W.STI.LH

64115FG260

64125B
64125B
64115FG261
Cover-hinge,front seat outer right

2008-06-01 ~ 2008-10-01; *W.STI.LH

64115FG261

64125C
64125C
64115AG240JC
Cover-hinge,front seat outer left

2007-06-01 ~ 2008-10-01; OFF BLACK; *W.STI.LH; T

64115AG240JC

64125C
64125C
64115FG250
Cover-hinge,front seat outer left

2007-06-01 ~ 2008-05-01; *W.STI.LH

64115FG250

64125C
64125C
64115FG251
Cover-hinge,front seat outer left

2008-06-01 ~ 2008-10-01; *W.STI.LH

64115FG251

64143H
64143H

64143FG040

KNOB DIAL

2007-06-01 ~ 2008-10-01; *W.STI.LH

64143FG040

US $37.24

Q710007
Q710007

904710007

Screw tap

2007-06-01 ~ 2008-10-01; W.STI

904710007

US $0.42

Q710007
Q710007

904710007

Screw tap

2007-06-01 ~ 2008-10-01; W.STI

904710007

US $0.42

Q710007
Q710007

904710007

Screw tap

2007-06-01 ~ 2008-10-01; W.STI

904710007

US $0.42

Front seat (SLIDE RAIL&HINGE(POWER); S.(20RS+WRXS+WRXSS) +W.(20RS+WRXS+WRXSS+20TDS+STI); 2008-04-01~) Diagram Subaru IMPREZA Europe 1093088-120046
