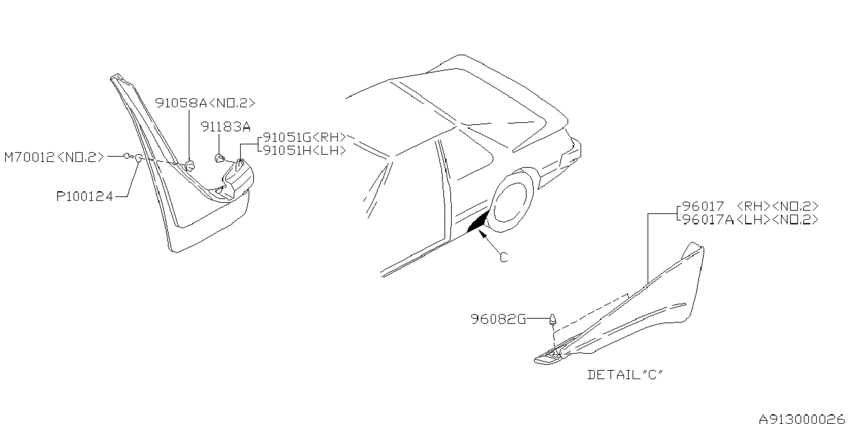

Protector (ﾏﾂﾄﾞｶﾞ-ﾄﾞ; 3C; 1985-10-01~1989-01-01) Diagram Subaru LEONE
- Year
- 1985 - 1988
- Sales region
- Japan
- body
- 3C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
91051G
|
91051G
91022GA500
SPLASH BOARD REA RH
1984-10-01 ~ 1986-04-01; S +3C |
91022GA500 |
— | ||
|
91051G
|
91051G
91022GA502
SPLASH BOARD REA RH
1986-05-01 ~ 1986-09-01; S +3C |
91022GA502 |
— | ||
|
91051G
|
91051G
91022GA503
SPLASH BOARD REA RH
1986-10-01 ~ 1989-01-01; S +3C; 4WD |
91022GA503 |
— | ||
|
91051H
|
91051H
91022GA510
SPLASH BOARD REA LH
1984-07-01 ~ 1986-04-01; S +3C |
91022GA510 |
— | ||
|
91051H
|
91051H
91022GA512
SPLASH BOARD REA LH
1986-05-01 ~ 1986-09-01; S +3C |
91022GA512 |
— | ||
|
91051H
|
91051H
91022GA513
SPLASH BOARD REA LH
1986-10-01 ~ 1989-01-01; S +3C; 4WD |
91022GA513 |
— | ||
|
91058A
|
91058A
791029030 NUTMUD GUARD1984-07-01 ~ 1986-04-01; S +VA +W +3C; <NO.2> |
791029030 |
US $0.85 |
||
|
96017
|
96017
96018GA140 AIR FLAP ASSY RH1985-11-01 ~ 1989-01-01; 3C.EA82T; <NO.2> |
96018GA140 |
US $136.36 |
||
|
96017A
|
96017A
96018GA150 AIR FLAP ASSY LH1985-11-01 ~ 1989-01-01; 3C.EA82T; <NO.2> |
96018GA150 |
US $136.36 |
||
|
96082G
|
96082G
96015GA100 CLIP AIR FLAP1985-11-01 ~ 1989-01-01; 3C.EA82T |
96015GA100 |
US $1.27 |
||
|
M70012
|
M70012
901700120 BOLT5X201984-07-01 ~ 1986-04-01; S +VA +W +3C; <NO.2> |
901700120 |
US $0.42 |
||
|
P100124
|
P100124
903100124 WASHER55X18X11984-07-01 ~ 1986-04-01; S +VA +W +3C |
903100124 |
US $0.30 |
