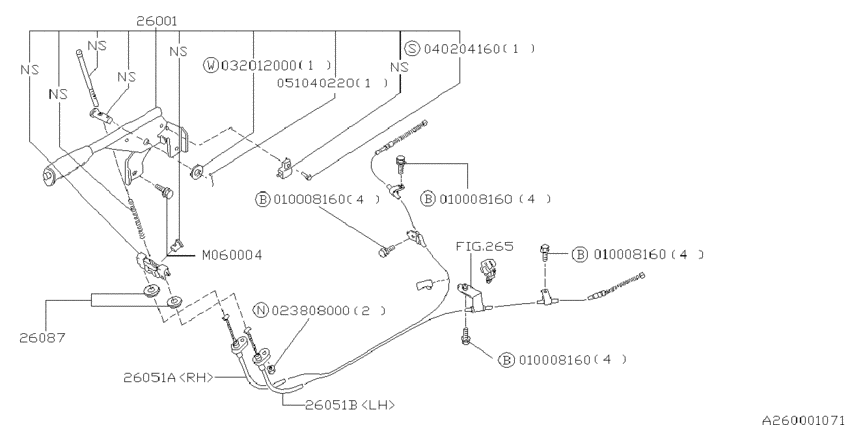

Hand brake system (V; 2000-09-01~) Diagram Subaru SAMBAR
- Year
- 2000 - 2011
- Sales region
- Japan
- Engine
- EV
- drive
- 2W
- transmission
- AT
- grade
- VC
- body
- V
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
26001
|
26001
26010TA002 ﾚﾊﾞｰ ｱｾﾝﾌﾞﾘ,ﾊﾝﾄﾞ ﾌﾞﾚｰｷ2002-06-01 ~ 2003-02-01; V |
26010TA002 |
US $50.55 |
||
|
26051A
|
26051A
26051TC040 ｹｰﾌﾞﾙ ｱｾﾝﾌﾞﾘ,ﾊﾝﾄﾞ ﾌﾞﾚｰｷ ﾗｲﾄ2002-06-01 ~ 2003-02-01; V |
26051TC040 |
US $50.13 |
||
|
26051B
|
26051B
26051TC050 ｹｰﾌﾞﾙ ｱｾﾝﾌﾞﾘ,ﾊﾝﾄﾞ ﾌﾞﾚｰｷ ﾚﾌﾄ2002-06-01 ~ 2003-02-01; V |
26051TC050 |
US $50.13 |
||
|
26087
|
26087
26027TC010 ｸﾞﾛﾒﾂﾄ,ﾊﾝﾄﾞ ﾌﾞﾚｰｷ2002-06-01 ~ 2003-02-01; V |
26027TC010 |
US $1.56 |
||
|
M060004
|
M060004
901060004 FT BOLT2002-06-01 ~ 2003-02-01; V |
901060004 |
from US $0.54 |
||
|
010008160
|
010008160
010008160 FLANGE BOLT-PILOT |
010008160 |
from US $0.26 |
||
|
023808000
|
023808000
023808000 FLANGE NUT |
023808000 |
US $0.42 |
||
|
032012000
|
032012000
032012000 SPRING WASHER |
032012000 |
US $0.14 |
||
|
040204160
|
040204160
040204160 FLANGE SCREW |
040204160 |
US $0.14 |
||
|
051040220
|
051040220
051040220 New Genuine Part |
051040220 |
US $0.14 |
