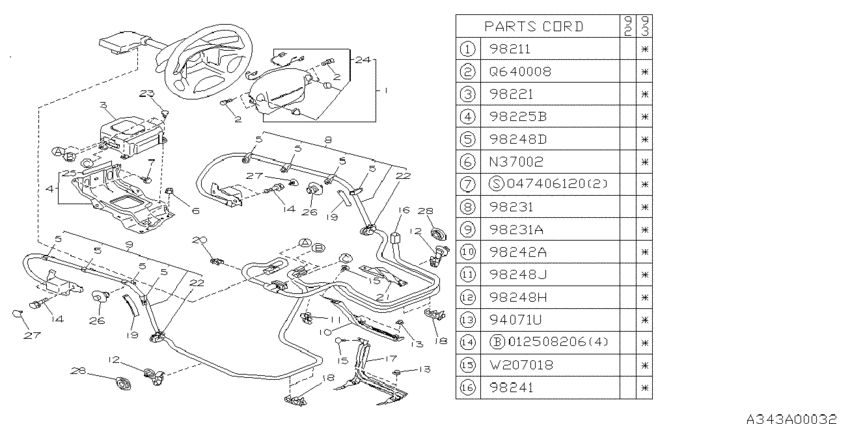

Air bag (RH; 2C.(RHD+AUST); 1992-10-01~) Diagram Subaru SVX
- Year
- 1992 - 2011
- Sales region
- Europe
- drive
- 4WD
- body
- 2C
- Destinat
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
94071U
|
94071U
94099AA020 CLIP SD SILL LWR1992-10-01 ~ 1994-01-01; <RH>2C.(RHD+AUST) |
94099AA020 |
US $1.13 |
||
|
98211
|
98211
98211PA001ML ｴｱ ﾊﾞﾂｸﾞ ﾓｼﾞﾕｰﾙ ｱｾﾝﾌﾞﾘ,ﾄﾞﾗｲﾊﾞ1992-10-01 ~ 1994-01-01; OFF BLACK; <RH>2C.(RHD+AUST); BLACK |
98211PA001ML |
US $1,168.20 |
||
|
98221
|
98221
98221AA000 ｺﾝﾄﾛｰﾙ ﾕﾆﾂﾄ,ｴｱ ﾊﾞﾂｸﾞ1992-10-01 ~ 1994-01-01; <RH>2C.(RHD+AUST); ND |
98221AA000 |
US $1,270.15 |
||
|
98225B
|
98225B
98225PA010 ﾌﾞﾗｹﾂﾄ,ｺﾝﾄﾛｰﾗ1992-10-01 ~ 1994-01-01; <RH>2C.(RHD+AUST) |
98225PA010 |
US $25.91 |
||
|
98231
|
98231
98231PA020 ｾﾝｻ ｱｾﾝﾌﾞﾘ,ｴｱ ﾊﾞﾂｸﾞ ﾌﾛﾝﾄ ﾗｲﾄ1992-10-01 ~ 1994-01-01; <RH>2C.(RHD+AUST) |
98231PA020 |
US $683.93 |
||
|
98231A
|
98231A
98231PA030 ｾﾝｻ ｱｾﾝﾌﾞﾘ,ｴｱ ﾊﾞﾂｸﾞ ﾌﾛﾝﾄ ﾚﾌﾄ1992-10-01 ~ 1994-01-01; <RH>2C.(RHD+AUST) |
98231PA030 |
US $683.93 |
||
|
98241
|
98241
98241PA010 ﾒｰﾝ ﾊｰﾈｽ,ｴｱ ﾊﾞﾂｸﾞ1992-10-01 ~ 1994-01-01; <RH>2C.(RHD+AUST) |
98241PA010 |
US $414.89 |
||
|
98242A
|
98242A
98242PA000 PROTECTOR H RH1992-10-01 ~ 1994-01-01; <RH>2C.(RHD+AUST) |
98242PA000 |
US $9.77 |
||
|
98248D
|
98248D
98248PA000 CLIP HARNESS1992-10-01 ~ 1994-01-01; <RH>2C.(RHD+AUST) |
98248PA000 |
US $5.52 |
||
|
98248H
|
98248H
98248PA040 CLIP SIDE SILL1992-10-01 ~ 1994-01-01; <RH>2C.(RHD+AUST) |
98248PA040 |
US $5.52 |
||
|
98248J
|
98248J
98248PA060 ｸﾘﾂﾌﾟ,ｺﾝﾄﾛｰﾙ ﾕﾆﾂﾄ B1992-10-01 ~ 1994-01-01; <RH>2C.(RHD+AUST) |
98248PA060 |
US $1.98 |
||
|
N37002
|
N37002
902370020 FLANGE NUT1992-10-01 ~ 1994-01-01; <RH>2C.(RHD+AUST) |
902370020 |
US $1.13 |
||
|
Q640008
|
Q640008
904640008 SCREWAB MODUL1992-10-01 ~ 1994-01-01; <RH>2C.(RHD+AUST) |
904640008 |
US $1.70 |
||
|
W207018
|
W207018
909207018 CLIP1992-10-01 ~ 1994-01-01; <RH>2C.(RHD+AUST) |
909207018 |
US $1.70 |
||
|
012508206
|
012508206
012508206 BOLTWASH ASSY |
012508206 |
US $0.57 |
||
|
047406120
|
047406120
047406120
TAPPING SCREW-HEXAGON FLANGE HEAD
|
047406120 |
— | ||
| replacement | |||||
|
047406120
|
047406120
904740011 TAPPING SCREW |
904740011 |
from US $0.28 |
||
