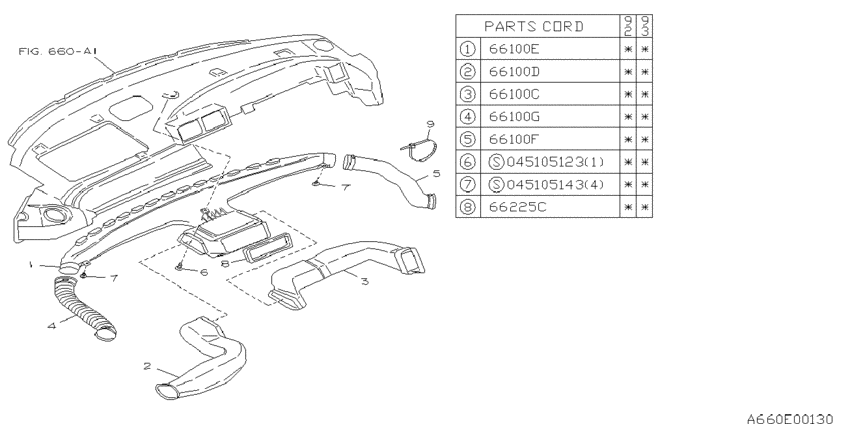

Instrument panel (DUCT; 2C.(RHD+AUST); 1992-03-01~) Diagram Subaru SVX
- Year
- 1992 - 2011
- Sales region
- Europe
- drive
- 4WD
- body
- 2C
- Destinat
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
66100C
|
66100C
66057PA020 ﾀﾞｸﾄ,ｻｲﾄﾞ ﾍﾞﾝﾁﾚｰﾀ ﾄﾞﾗｲﾊﾞ1992-03-01 ~ 1994-01-01; 2C.(RHD+AUST) |
66057PA020 |
US $32.57 |
||
|
66100D
|
66100D
66057PA040 ﾀﾞｸﾄ,ｻｲﾄﾞ ﾍﾞﾝﾁﾚｰﾀ ﾊﾟﾂｾﾝｼﾞﾔ1992-03-01 ~ 1994-01-01; 2C.(RHD+AUST) |
66057PA040 |
US $30.30 |
||
|
66100E
|
66100E
66057PA060 ﾀﾞｸﾄ ｺﾝﾌﾟﾘｰﾄ,ﾌﾛﾝﾄ ﾃﾞﾌﾛｽﾀ1992-03-01 ~ 1994-01-01; 2C.(RHD+AUST) |
66057PA060 |
US $78.45 |
||
|
66100F
|
66100F
66057PA080 ﾀﾞｸﾄ,ﾌﾛﾝﾄ ﾃﾞﾌﾛｽﾀ ﾄﾞﾗｲﾊﾞ1992-03-01 ~ 1994-01-01; 2C.(RHD+AUST) |
66057PA080 |
US $15.72 |
||
|
66100G
|
66100G
66057PA100 DUCT SDEF P RH1992-03-01 ~ 1994-01-01; 2C.(RHD+AUST) |
66057PA100 |
US $11.61 |
||
|
66225C
|
66225C
66036PA010 PACKING1992-03-01 ~ 1994-01-01; 2C.(RHD+AUST) |
66036PA010 |
US $4.25 |
||
|
045105123
|
045105123
045105123 TAPPING SCREW |
045105123 |
US $0.28 |
||
|
045105143
|
045105143
045105143 TAPPING SCREW |
045105143 |
US $0.28 |
