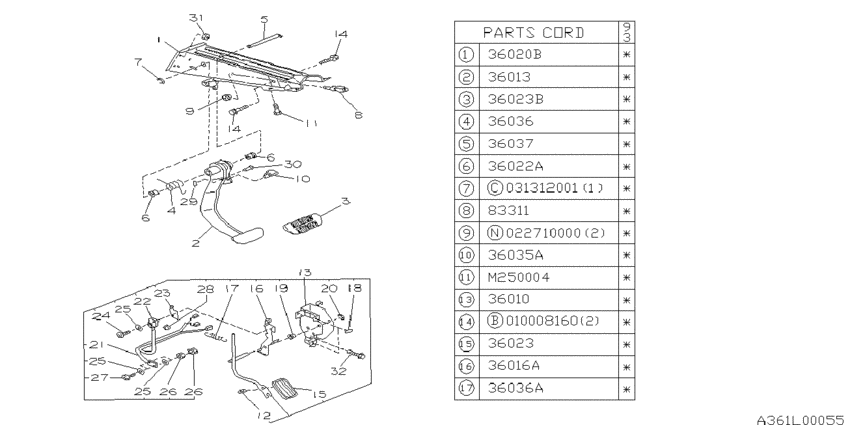

Pedal system (at) (L.H.D; EUR.LHD.2WD.GLI; 1992-08-01~) Diagram Subaru VIVIO
- Year
- 1992 - 1993
- Sales region
- Europe
- drive
- 2WD
- Number of doors
- 5D
- grade
- GLI
- Destinat
- EUR
- Steering
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
36010
|
36010
36010KC040
Pedal assembly-accelerator
1992-08-01 ~ 1993-07-01; <ECVT> EUR.LHD.2WD |
36010KC040 |
— | ||
|
36013
|
36013
36012KC030
Pedal complete-brake
1992-08-01 ~ 1993-07-01; <ECVT> EUR.LHD.2WD |
36012KC030 |
— | ||
|
36016A
|
36016A
36016KC020
Lever-accelerator switch
1992-08-01 ~ 1993-07-01; <ECVT> EUR.LHD.2WD |
36016KC020 |
— | ||
|
36020B
|
36020B
36021KC000 ﾌﾞﾗｹﾂﾄ ｺﾝﾌﾟﾘｰﾄ,ﾌﾞﾚｰｷ ﾍﾟﾀﾞﾙ1992-08-01 ~ 1993-07-01; <ECVT> EUR.LHD.2WD |
36021KC000 |
US $64.43 |
||
|
36022A
|
36022A
736013000 BUSHING PEDAL1992-08-01 ~ 1993-07-01; <ECVT> EUR.LHD.2WD |
736013000 |
from US $1.27 |
||
|
36023
|
36023
36024KC000 ﾊﾟﾂﾄﾞ,ｱｸｾﾙ ﾍﾟﾀﾞﾙ1992-08-01 ~ 1993-07-01; <ECVT> EUR.LHD.2WD |
36024KC000 |
US $4.81 |
||
|
36023B
|
36023B
36015GA120 ﾊﾟﾂﾄﾞ,ﾌﾞﾚｰｷ ﾍﾟﾀﾞﾙ AT1992-08-01 ~ 1993-07-01; <ECVT> EUR.LHD.2WD |
36015GA120 |
US $6.51 |
||
|
36035A
|
36035A
36035KC010 ｽﾄﾂﾊﾟ,ﾍﾟﾀﾞﾙ B1992-08-01 ~ 1993-07-01; <ECVT> EUR.LHD.2WD |
36035KC010 |
US $1.84 |
||
|
36035A
|
36035A
36035KC030
Stopper-pedal,b
1992-08-01 ~ 1993-07-01; <ECVT> EUR.LHD.2WD |
36035KC030 |
— | ||
|
36036
|
36036
36036KC040
Spring assist-brake
1992-08-01 ~ 1993-07-01; <ECVT> EUR.LHD.2WD |
36036KC040 |
— | ||
|
36036A
|
36036A
36036KC050
Spring assist-accelerator
1992-08-01 ~ 1993-07-01; <ECVT> EUR.LHD.2WD |
36036KC050 |
— | ||
|
36037
|
36037
36037KC010 ｼﾔﾌﾄ,ﾍﾟﾀﾞﾙ1992-08-01 ~ 1993-07-01; <ECVT> EUR.LHD.2WD |
36037KC010 |
US $8.92 |
||
|
83311
|
83311
83311AA010 SWITCH-STOP LAMP1992-08-01 ~ 1993-07-01; <ECVT> EUR.LHD.2WD |
83311AA010 |
US $16.43 |
||
|
M250004
|
M250004
901250004 BOLT WASHER1992-08-01 ~ 1993-07-01; <ECVT> EUR.LHD.2WD |
901250004 |
US $1.70 |
||
|
010008160
|
010008160
010008160 FLANGE BOLT-PILOT |
010008160 |
from US $0.26 |
||
|
022710000
|
022710000
022710000
NUT
|
022710000 |
— | ||
| replacement | |||||
|
022710000
|
022710000
022810000 NUT |
022810000 |
from US $0.42 |
||
|
031312001
|
031312001
031312001 CLIP |
031312001 |
US $0.42 |
||
