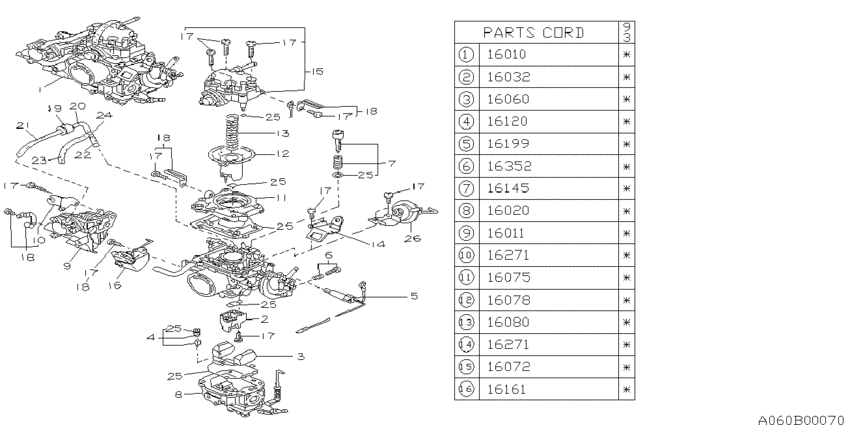

Carburetor (BODY; GEN.(VAN+LX+GL); 1992-08-01~1993-07-01) Diagram Subaru VIVIO
- Year
- 1992 - 1993
- Sales region
- Europe
- drive
- 2WD
- Number of doors
- 5D
- grade
- GL
- Destinat
- GEN
- Steering
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16010
|
16010
16010KB660 ｷﾔﾌﾞﾚｰﾀ ｱｾﾝﾌﾞﾘ1992-08-01 ~ 1993-07-01; GEN.(LX+GL+VAN); MT(EXC.A/C) |
16010KB660 |
US $999.70 |
||
|
16010
|
16010
16010KB680 ｷﾔﾌﾞﾚｰﾀ ｱｾﾝﾌﾞﾘ1992-08-01 ~ 1993-07-01; GEN.RHD.GL; ECVT |
16010KB680 |
US $1,043.59 |
||
|
16011
|
16011
16011KA920 ﾁﾔﾝﾊﾞ ｱｾﾝﾌﾞﾘ,ﾁﾖｰｸ1992-08-01 ~ 1993-07-01; GEN.RHD.GL; ECVT |
16011KA920 |
US $134.52 |
||
|
16011
|
16011
16011KA930 CHAMBER ASSEMBLY-CHOKE1992-08-01 ~ 1993-07-01; GEN.(LX+GL+VAN); MT |
16011KA930 |
US $134.52 |
||
|
16020
|
16020
16020KB140 ﾁﾔﾝﾊﾞ ｱｾﾝﾌﾞﾘ,ﾌﾛｰﾄ1992-08-01 ~ 1993-07-01; GEN.RHD.GL; ECVT |
16020KB140 |
US $135.79 |
||
|
16020
|
16020
16020KB150 CHAMBER ASSEMBLY-FLOAT1992-08-01 ~ 1993-07-01; GEN.(LX+GL+VAN); MT |
16020KB150 |
US $123.62 |
||
|
16032
|
16032
16032KA050 JET CASE ASSEMBLY1992-08-01 ~ 1993-07-01; GEN.(LX+GL+VAN); MT |
16032KA050 |
US $65.14 |
||
|
16032
|
16032
16032KA080 ｹｰｽ ｱｾﾝﾌﾞﾘ,ｼﾞｴﾂﾄ1992-08-01 ~ 1993-07-01; GEN.RHD.GL; ECVT |
16032KA080 |
US $81.28 |
||
|
16060
|
16060
16060KA050
FLOAT SET
1992-08-01 ~ 1993-07-01; GEN.(LX+GL+VAN) |
16060KA050 |
— | ||
|
16072
|
16072
16072KA020 ｹｰｽ ｾﾂﾄ,ﾋﾟｽﾄﾝ ﾊﾞﾙﾌﾞ1992-08-01 ~ 1993-07-01; GEN.RHD.GL; ECVT |
16072KA020 |
US $51.54 |
||
|
16072
|
16072
16072KA030 CASE SET-PISTON VALVE1992-08-01 ~ 1993-07-01; GEN.(LX+GL+VAN); MT |
16072KA030 |
US $51.54 |
||
|
16075
|
16075
16075KA020
ｶﾊﾞｰ,ﾋﾟｽﾄﾝ ﾊﾞﾙﾌﾞ
1992-08-01 ~ 1993-07-01; GEN.(LX+GL+VAN) |
16075KA020 |
— | ||
|
16078
|
16078
16078KA020 ﾊﾞﾙﾌﾞ,ﾋﾟｽﾄﾝ ｷﾔﾌﾞﾚｰﾀ1992-08-01 ~ 1993-07-01; GEN.(LX+GL+VAN) |
16078KA020 |
US $120.93 |
||
|
16080
|
16080
16080KA000 SPRING-PISTON VALVE,CARBURETOR1992-08-01 ~ 1993-07-01; GEN.(LX+GL+VAN) |
16080KA000 |
US $2.27 |
||
|
16120
|
16120
16120KB130
NEEDLE VALVE SET
1992-08-01 ~ 1993-07-01; GEN.(LX+GL+VAN) |
16120KB130 |
— | ||
|
16145
|
16145
16145KA020 SCREW ASSEMBLY-IDLE ADJUSTER1992-08-01 ~ 1993-07-01; GEN.(LX+GL+VAN) |
16145KA020 |
US $64.29 |
||
|
16161
|
16161
16161KA130 DASHPOT AND BRACKET ASSEMBLY1992-08-01 ~ 1993-07-01; GEN.(LX+GL+VAN); MT |
16161KA130 |
US $56.07 |
||
|
16161
|
16161
16161KA140 ﾀﾞﾂｼﾕ ﾎﾟﾂﾄ ｱﾝﾄﾞ ﾌﾞﾗｹﾂﾄ ｱｾﾝﾌﾞﾘ1992-08-01 ~ 1993-07-01; GEN.RHD.GL; ECVT |
16161KA140 |
US $61.74 |
||
|
16199
|
16199
16199KA090 VALVE-CARBURETOR SOLENOID1992-08-01 ~ 1993-07-01; GEN.(LX+GL+VAN) |
16199KA090 |
US $83.12 |
||
|
16271
|
16271
16271KA140 BRACKET-CARBURETOR1992-08-01 ~ 1993-07-01; GEN.(LX+GL+VAN) |
16271KA140 |
US $9.35 |
||
|
16271
|
16271
16271KA150 ﾌﾞﾗｹﾂﾄ,ｷﾔﾌﾞﾚｰﾀ1992-08-01 ~ 1993-07-01; GEN.RHD.GL; ECVT |
16271KA150 |
US $10.34 |
||
|
16271
|
16271
16271KA140 BRACKET-CARBURETOR1992-08-01 ~ 1993-07-01; GEN.(LX+GL+VAN) |
16271KA140 |
US $9.35 |
||
|
16271
|
16271
16271KA150 ﾌﾞﾗｹﾂﾄ,ｷﾔﾌﾞﾚｰﾀ1992-08-01 ~ 1993-07-01; GEN.RHD.GL; ECVT |
16271KA150 |
US $10.34 |
||
|
16352
|
16352
16352KA020 SCREW SET-THROTTLE1992-08-01 ~ 1993-07-01; GEN.(LX+GL+VAN) |
16352KA020 |
US $8.64 |
