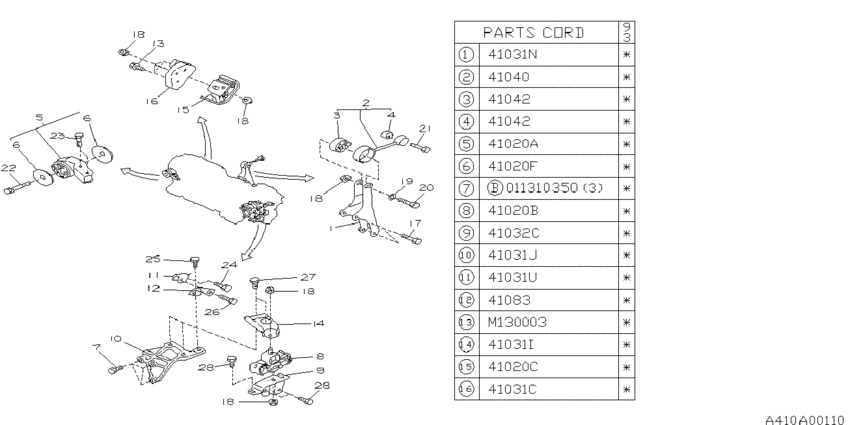

Engine mounting (2WD MT; GEN.2WD +EUR.2WD; 1992-08-01~) Diagram Subaru VIVIO
- Year
- 1992 - 1993
- Sales region
- Europe
- drive
- 2WD
- Number of doors
- 5D
- grade
- GLI
- Destinat
- GEN
- Steering
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
41020A
|
41020A
41022KC000
CUSH RUB ASSY RH
1992-08-01 ~ 1993-07-01; <ECVT> GEN.RHD.GL# +EUR.LHD.2WD +EUR.RHD.2WD.GL# |
41022KC000 |
— | ||
|
41020B
|
41020B
41022KA360 ｸﾂｼﾖﾝ ﾗﾊﾞｰ,ｴﾝｼﾞﾝ ﾚﾌﾄ1992-08-01 ~ 1993-07-01; <ECVT> GEN.RHD.GL# +EUR.LHD.2WD +EUR.RHD.2WD.GL# |
41022KA360 |
US $33.70 |
||
|
41020C
|
41020C
41022KC090 ｸﾂｼﾖﾝ ﾗﾊﾞｰ,ﾄﾗﾝｽﾐﾂｼﾖﾝ1992-08-01 ~ 1993-07-01; <ECVT> GEN.RHD.GL# +EUR.LHD.2WD +EUR.RHD.2WD.GL# |
41022KC090 |
US $40.78 |
||
|
41020F
|
41020F
41022KA460 ｸﾂｼﾖﾝ ﾗﾊﾞｰ,ｽﾄﾂﾊﾟ1992-08-01 ~ 1993-07-01; <ECVT> GEN.RHD.GL# +EUR.LHD.2WD +EUR.RHD.2WD.GL# |
41022KA460 |
US $4.96 |
||
|
41031C
|
41031C
41031KC050 ﾌﾞﾗｹﾂﾄ ｺﾝﾌﾟﾘｰﾄ,ﾘﾔ1992-08-01 ~ 1993-07-01; <MT> GEN +EUR.2WD |
41031KC050 |
US $32.14 |
||
|
41031C
|
41031C
41031KC130 ﾌﾞﾗｹﾂﾄ ｺﾝﾌﾟﾘｰﾄ,ﾘﾔ1992-08-01 ~ 1993-07-01; <ECVT> GEN.RHD.GL# +EUR.LHD.2WD +EUR.RHD.2WD.GL# |
41031KC130 |
US $32.14 |
||
|
41031I
|
41031I
41031KC030 ﾌﾞﾗｹﾂﾄ ｺﾝﾌﾟﾘｰﾄ,ﾚﾌﾄ ｱﾂﾊﾟ1992-08-01 ~ 1993-07-01; <MT> GEN +EUR.2WD |
41031KC030 |
US $31.44 |
||
|
41031I
|
41031I
41031KC100 ﾌﾞﾗｹﾂﾄ ｺﾝﾌﾟﾘｰﾄ,ﾚﾌﾄ ｱﾂﾊﾟ1992-08-01 ~ 1993-07-01; <ECVT> GEN.RHD.GL# +EUR.LHD.2WD +EUR.RHD.2WD.GL# |
41031KC100 |
US $34.55 |
||
|
41031J
|
41031J
41031KC040 ﾌﾞﾗｹﾂﾄ ｺﾝﾌﾟﾘｰﾄ,ﾚﾌﾄ ﾛｱ1992-08-01 ~ 1993-07-01; <MT> GEN +EUR.2WD |
41031KC040 |
US $111.16 |
||
|
41031J
|
41031J
41031KC350 ﾌﾞﾗｹﾂﾄ ｺﾝﾌﾟﾘｰﾄ,ﾚﾌﾄ ﾛｱ1992-08-01 ~ 1993-07-01; <ECVT> GEN.RHD.GL# +EUR.LHD.2WD +EUR.RHD.2WD.GL# |
41031KC350 |
US $56.64 |
||
|
41031N
|
41031N
41031KC110 ﾌﾞﾗｹﾂﾄ ｺﾝﾌﾟﾘｰﾄ,ﾋﾟﾂﾁﾝｸﾞ ｽﾄﾂﾊﾟ1992-08-01 ~ 1993-07-01; <ECVT> GEN.RHD.GL# +EUR.LHD.2WD +EUR.RHD.2WD.GL# |
41031KC110 |
US $20.25 |
||
|
41031N
|
41031N
41038KA590 ﾌﾞﾗｹﾂﾄ ｺﾝﾌﾟﾘｰﾄ,ﾋﾟﾂﾁﾝｸﾞ ｽﾄﾂﾊﾟ1992-08-01 ~ 1993-07-01; <MT> GEN +EUR.2WD |
41038KA590 |
US $20.25 |
||
|
41031U
|
41031U
41038KA520 ﾌﾞﾗｹﾂﾄ ｺﾝﾌﾟﾘｰﾄ,ｽﾃｲﾌﾅ1992-08-01 ~ 1993-07-01; <MT> GEN +EUR.2WD |
41038KA520 |
US $8.64 |
||
|
41032C
|
41032C
41031KC020 ﾌﾞﾗｹﾂﾄ,ｸﾂｼﾖﾝ ﾗﾊﾞｰ ｴﾝｼﾞﾝ ﾚﾌﾄ1992-08-01 ~ 1993-07-01; <ECVT> GEN.RHD.GL# +EUR.LHD.2WD +EUR.RHD.2WD.GL# |
41031KC020 |
US $23.08 |
||
|
41040
|
41040
41040KC000 ﾛﾂﾄﾞ ｱｾﾝﾌﾞﾘ,ﾋﾟﾂﾁﾝｸﾞ ｽﾄﾂﾊﾟ1992-08-01 ~ 1993-07-01; <ECVT> GEN.RHD.GL# +EUR.LHD.2WD +EUR.RHD.2WD.GL# |
41040KC000 |
US $51.54 |
||
|
41042
|
41042
41022KA050 RUBBER BUSH PTG TPR1992-08-01 ~ 1993-07-01; <ECVT> GEN.RHD.GL# +EUR.LHD.2WD +EUR.RHD.2WD.GL# |
41022KA050 |
US $17.98 |
||
|
41042
|
41042
641038000 RUBBER BUSHSTP1992-08-01 ~ 1993-07-01; <ECVT> GEN.RHD.GL# +EUR.LHD.2WD +EUR.RHD.2WD.GL# |
641038000 |
US $10.05 |
||
|
41042
|
41042
41022KA050 RUBBER BUSH PTG TPR1992-08-01 ~ 1993-07-01; <ECVT> GEN.RHD.GL# +EUR.LHD.2WD +EUR.RHD.2WD.GL# |
41022KA050 |
US $17.98 |
||
|
41042
|
41042
641038000 RUBBER BUSHSTP1992-08-01 ~ 1993-07-01; <ECVT> GEN.RHD.GL# +EUR.LHD.2WD +EUR.RHD.2WD.GL# |
641038000 |
US $10.05 |
||
|
41083
|
41083
41045KC000 ｽﾃｲﾌﾅ1992-08-01 ~ 1993-07-01; <MT> GEN +EUR.2WD |
41045KC000 |
US $8.64 |
||
|
M130003
|
M130003
901130003 BOLT ASSY1992-08-01 ~ 1993-07-01; <ECVT> GEN.RHD.GL# +EUR.LHD.2WD +EUR.RHD.2WD.GL# |
901130003 |
US $0.99 |
||
|
011310350
|
011310350
011310350 BOLT ASSY |
011310350 |
US $1.13 |
