Component List VIVIO
Engine mounting (MT.EN07E; 1992-12-01~)

Difficulties in parts search?

Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
41020A	41020A 41022KC000 CUSH RUB ASSY RH 1992-12-01 ~ 1995-09-01; MT.EN07E	41022KC000	—
41020A	41020A 41022KC080 ｸﾂｼﾖﾝﾗﾊﾞｰ,ｴﾝｼﾞﾝﾗｲﾄ 1992-12-01 ~ 1995-09-01; EN07Y; NO.2	41022KC080	US $86.23
41020B	41020B 41022KA360 ｸﾂｼﾖﾝﾗﾊﾞｰ,ｴﾝｼﾞﾝﾚﾌﾄ 1992-12-01 ~ 1995-09-01; MT.EN07E	41022KA360	US $33.70
41020C	41020C 41022KC090 ｸﾂｼﾖﾝﾗﾊﾞｰ,ﾄﾗﾝｽﾐﾂｼﾖﾝ 1992-12-01 ~ 1995-09-01; MT.EN07E	41022KC090	US $40.78
41020F	41020F 41022KA460 ｸﾂｼﾖﾝﾗﾊﾞｰ,ｽﾄﾂﾊﾟ 1992-12-01 ~ 1995-09-01; MT.EN07E	41022KA460	US $4.96
41031C	41031C 41031KC050 ﾌﾞﾗｹﾂﾄｺﾝﾌﾟﾘｰﾄ,ﾘﾔ 1992-12-01 ~ 1995-09-01; MT.EN07E	41031KC050	US $32.14
41031I	41031I 41031KC030 ﾌﾞﾗｹﾂﾄｺﾝﾌﾟﾘｰﾄ,ﾚﾌﾄｱﾂﾊﾟ 1992-12-01 ~ 1995-09-01; MT.EN07E	41031KC030	US $31.44
41031J	41031J 41031KC040 ﾌﾞﾗｹﾂﾄｺﾝﾌﾟﾘｰﾄ,ﾚﾌﾄﾛｱ 1992-12-01 ~ 1995-09-01; MT.EN07E	41031KC040	US $111.16
41031N	41031N 41038KA590 ﾌﾞﾗｹﾂﾄｺﾝﾌﾟﾘｰﾄ,ﾋﾟﾂﾁﾝｸﾞｽﾄﾂﾊﾟ 1992-12-01 ~ 1995-09-01; MT.EN07E	41038KA590	US $20.25
41031U	41031U 41038KA520 ﾌﾞﾗｹﾂﾄｺﾝﾌﾟﾘｰﾄ,ｽﾃｲﾌﾅ 1992-12-01 ~ 1995-09-01; MT.EN07E	41038KA520	US $8.64
41032C	41032C 41031KC020 ﾌﾞﾗｹﾂﾄ,ｸﾂｼﾖﾝﾗﾊﾞｰｴﾝｼﾞﾝﾚﾌﾄ 1992-12-01 ~ 1995-09-01; MT.EN07E	41031KC020	US $23.08
41040	41040 41040KC000 ﾛﾂﾄﾞｱｾﾝﾌﾞﾘ,ﾋﾟﾂﾁﾝｸﾞｽﾄﾂﾊﾟ 1992-12-01 ~ 1995-09-01; MT.EN07E	41040KC000	US $51.54
41042	41042 41022KA050 RUBBER BUSH PTG TPR 1992-12-01 ~ 1995-09-01; MT.EN07E; NO.2	41022KA050	US $17.98
41042	41042 641038000 RUBBER BUSHSTP 1992-12-01 ~ 1995-09-01; MT.EN07E; NO.1	641038000	US $10.05
41083	41083 41045KC000 ｽﾃｲﾌﾅ 1992-12-01 ~ 1995-09-01; MT.EN07E	41045KC000	US $8.64
M000128	M000128 901000128 ﾌﾗﾝｼﾞﾎﾞﾙﾄ 1992-12-01 ~ 1995-09-01; MT.EN07E	901000128	US $0.85
M000133	M000133 901000133 FLANGE BOLT 1992-12-01 ~ 1995-09-01; MT.EN07E	901000133	US $2.83
M120025	M120025 901120025 BOLT ASSY 1992-12-01 ~ 1995-09-01; MT.EN07E	901120025	US $1.84
M120071	M120071 901120071 ﾎﾞﾙﾄｱﾝﾄﾞﾜﾂｼﾔｱｾﾝﾌﾞﾘ 1992-12-01 ~ 1995-09-01; MT.EN07E	901120071	US $1.56
M130003	M130003 901130003 BOLT ASSY 1992-12-01 ~ 1995-09-01; MT.EN07E	901130003	US $0.99
P100102	P100102 903100102 WASHER 1992-12-01 ~ 1995-09-01; MT.EN07E	903100102	US $0.42
011310250	011310250 011310250 BOLTWASHER AY	011310250	US $0.57
011310350	011310350 011310350 BOLT ASSY	011310350	US $1.13
011310400	011310400 011310400 Болт, комплект	011310400	US $0.99
011510200	011510200 011510200 BOLTWASHER AY	011510200	US $0.57
011510500	011510500 011510500 BOLTWASHER AY	011510500	US $1.27
012310250	012310250 012310250 BOLTWASHER AY	012310250	US $0.57
016610250	016610250 016610250 BOLT	016610250	US $0.42
016610500	016610500 016610500 Болт с двухгранной головкой	016610500	US $1.27
023810000	023810000 023810000 FLANGE NUT	023810000	—
	replacement
023810000	023810000 902380007 NUT FLG M10	902380007	US $0.57

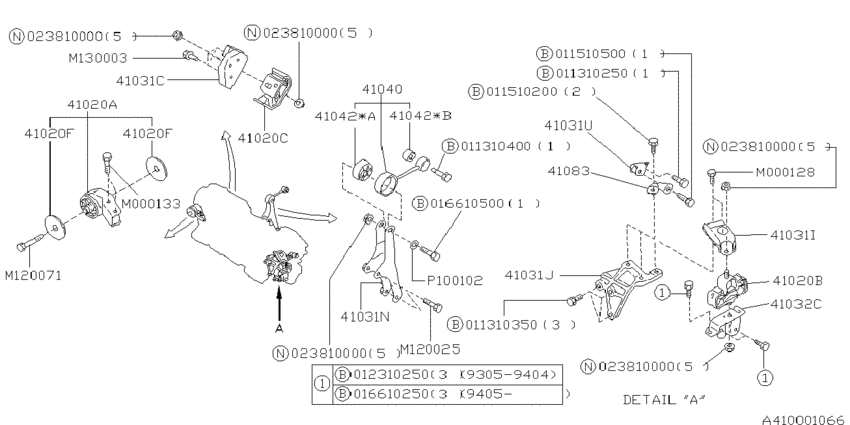

Engine mounting (MT.EN07E; 1992-12-01~) Diagram Subaru VIVIO Japan 7087468-554120

Engine mounting (MT.EN07E; 1992-12-01~) Diagram Subaru VIVIO Japan 7087468-554120
