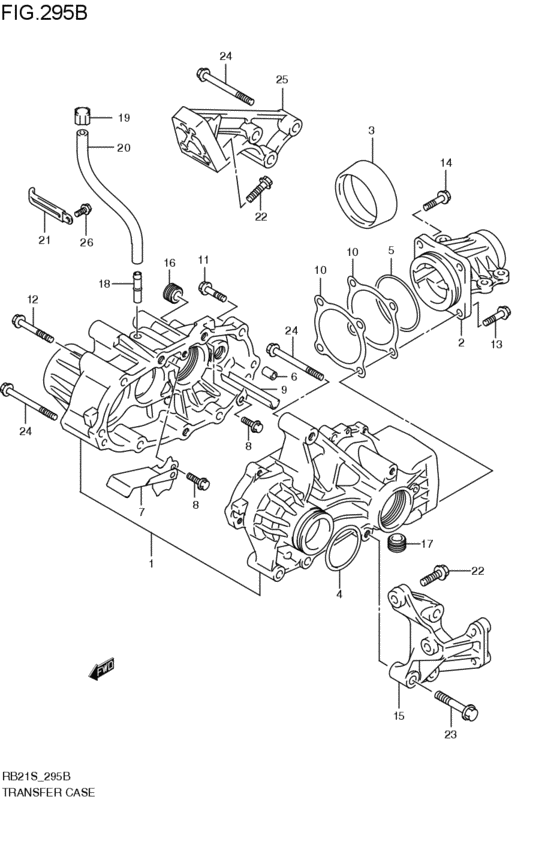

transfer case (AT:4WD; 2001-01-01~) Diagram Suzuki AERIO
- Year
- 2000 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 4WD
- transmission
- AT
- body
- X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
29500-55810-000
CASE SET,T/F
AT:4WD; 2001-01-01~ |
29500-55810-000 |
— | ||
|
2
|
2
29271-60G90-000
RETAINER,T/F OUTPUT
AT:4WD; 2001-01-01~ |
29271-60G90-000 |
— | ||
|
3
|
3
29272-74C00-000
Cover,t/f output retainer
AT:4WD; 2001-01-01~ |
29272-74C00-000 |
— | ||
|
4
|
4
29512-60G90-000
O-RING
AT:4WD; 2001-01-01~ |
29512-60G90-000 |
— | ||
|
5
|
5
09280-76008-000 O RING(D:3.1,ID:74)O ring, rr final housing AT:4WD; 2001-01-01~ |
09280-76008-000 |
from US $5.15 |
||
|
6
|
6
04211-09189-000 PINAT:4WD; 2001-01-01~ |
04211-09189-000 |
from US $0.91 |
||
|
7
|
7
29191-60G90-000
PLATE,OIL PROTECT
AT:4WD; 2001-01-01~ |
29191-60G90-000 |
— | ||
|
8
|
8
29154-60G90-000
Bolt,adjuster plate
AT:4WD; 2001-01-01~ |
29154-60G90-000 |
— | ||
|
9
|
9
29120-60G90-000
RECEIVER,T/F OIL
AT:4WD; 2001-01-01~ |
29120-60G90-000 |
— | ||
|
10
|
10
29261-74B03-000 SHIM,T/F RETAINER T:0.60AT:4WD; 2001-01-01~ |
29261-74B03-000 |
US $12.14 |
||
|
10
|
10
29261-74B23-000 SHIM,T/F RETAINER T:0.66AT:4WD; 2001-01-01~ |
29261-74B23-000 |
US $12.14 |
||
|
10
|
10
29261-74B43-000 SHIM,T/F RETAINER T:0.72AT:4WD; 2001-01-01~ |
29261-74B43-000 |
US $12.14 |
||
|
10
|
10
29261-74B61-000 SHIM,T/F RETAINER T:0.78AT:4WD; 2001-01-01~ |
29261-74B61-000 |
US $12.14 |
||
|
10
|
10
29261-74B81-000 SHIM,T/F RETAINER T:0.84AT:4WD; 2001-01-01~ |
29261-74B81-000 |
US $12.14 |
||
|
10
|
10
29261-75B02-000 SHIM,T/F RETAINER T:0.30AT:4WD; 2001-01-01~ |
29261-75B02-000 |
US $12.14 |
||
|
11
|
11
01550-08803-000
Bolt (8x80)
AT:4WD; 2001-01-01~ |
01550-08803-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0880B-000 BoltBolt, muffler bracket & stand AT:4WD; 2001-01-01~ |
01550-0880B-000 |
from US $3.05 |
||
|
11
|
11
01550-0880A-000 BoltAT:4WD; 2001-01-01~ |
01550-0880A-000 |
from US $1.67 |
||
|
12
|
12
01550-08403-000
Bolt
AT:4WD; 2001-01-01~ |
01550-08403-000 |
— | ||
| replacements | |||||
|
12
|
12
01550-0840B-000 BoltAT:4WD; 2001-01-01~ |
01550-0840B-000 |
from US $1.12 |
||
|
12
|
12
01550-0840A-000 BoltAT:4WD; 2001-01-01~ |
01550-0840A-000 |
from US $1.12 |
||
|
13
|
13
01550-10303-000
Bolt
AT:4WD; 2001-01-01~ |
01550-10303-000 |
— | ||
| replacements | |||||
|
13
|
13
01550-1030B-000 BoltBolt, axle housing rear AT:4WD; 2001-01-01~ |
01550-1030B-000 |
from US $5.07 |
||
|
13
|
13
01550-1030A-000 BoltAT:4WD; 2001-01-01~ |
01550-1030A-000 |
from US $1.12 |
||
|
14
|
14
29273-60G90-000
Bolt
AT:4WD; 2001-01-01~ |
29273-60G90-000 |
— | ||
|
15
|
15
29531-54G30-000
STIFFENER,T/F CASE
AT:4WD; 2001-01-01~ |
29531-54G30-000 |
— | ||
|
16
|
16
29945-80051-000 PLUG,OIL FILLERAT:4WD; 2001-01-01~ |
29945-80051-000 |
US $2.24 |
||
|
17
|
17
29946-54G10-000 PLUGAT:4WD; 2001-01-01~ |
29946-54G10-000 |
US $5.37 |
||
|
18
|
18
09364-08006-000 UNIONAT:4WD; 2001-01-01~ |
09364-08006-000 |
from US $3.51 |
||
|
19
|
19
27991-65D01-000 PLUG,BREATHERAT:4WD; 2001-01-01~ |
27991-65D01-000 |
from US $1.92 |
||
|
20
|
20
09352-70113-600
HOSE(7X11X600)
L:600>320; AT:4WD; 2001-01-01~ |
09352-70113-600 |
— | ||
| replacement | |||||
|
20
|
20
09352-70119-600 Hose(7X11X600)L:600>320; AT:4WD; 2001-01-01~ |
09352-70119-600 |
from US $4.96 |
||
|
21
|
21
09404-06434-000
CLAMP(L:80 T:1.0)
AT:4WD; 2001-01-01~ |
09404-06434-000 |
— | ||
| replacement | |||||
|
21
|
21
09404-06036-000 Clamp(L:80)AT:4WD; 2001-01-01~ |
09404-06036-000 |
from US $1.82 |
||
|
22
|
22
01550-10403-000
Bolt
AT:4WD; 2001-01-01~ |
01550-10403-000 |
— | ||
| replacements | |||||
|
22
|
22
01550-1040B-000 BoltAT:4WD; 2001-01-01~ |
01550-1040B-000 |
from US $3.65 |
||
|
22
|
22
01550-1040A-000 BoltAT:4WD; 2001-01-01~ |
01550-1040A-000 |
from US $1.28 |
||
|
23
|
23
01550-10553-000
Bolt
AT:4WD; 2001-01-01~ |
01550-10553-000 |
— | ||
| replacement | |||||
|
23
|
23
01550-1055B-000 BoltAT:4WD; 2001-01-01~ |
01550-1055B-000 |
from US $1.60 |
||
|
24
|
24
01550-10703-000
ボルト
AT:4WD; 2001-01-01~ |
01550-10703-000 |
— | ||
| replacement | |||||
|
24
|
24
01550-1070A-000 BoltAT:4WD; 2001-01-01~ |
01550-1070A-000 |
from US $1.60 |
||
|
25
|
25
29532-54G10-000
STIFFENER,ENG&T/F
AT:4WD; 2001-01-01~ |
29532-54G10-000 |
— | ||
|
26
|
26
02162-06103-000
Bolt
AT:4WD; 2001-01-01~ |
02162-06103-000 |
— | ||
| replacement | |||||
|
26
|
26
02162-0610A-000 SCREWAT:4WD; 2001-01-01~ |
02162-0610A-000 |
from US $0.64 |
||
