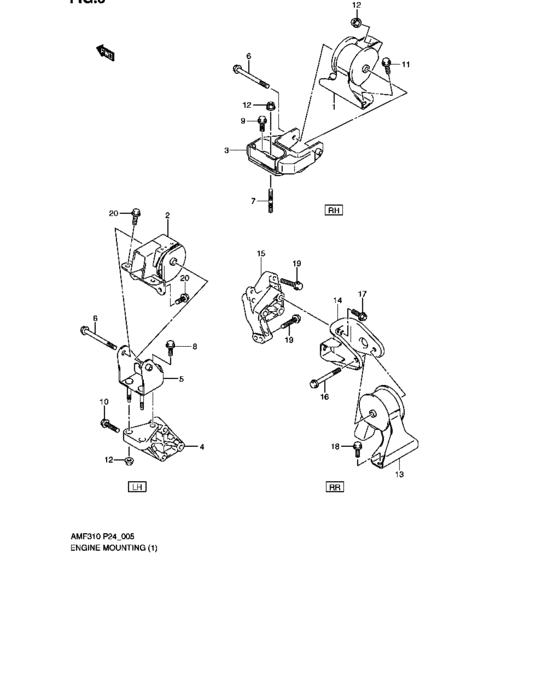

Engine mounting (MT) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Africa
- transmission
- MT
- grade
- HIGH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11610-M68K0-200
Mounting, eng rh
,,Chile,Sinagpore,Saudi Arabia, |
11610-M68K0-200 |
— | ||
|
1
|
1
11610-M68KA-200
Mounting, eng rh
Australia |
11610-M68KA-200 |
— | ||
|
2
|
2
11620-M68K0-200
Mounting, eng lh
|
11620-M68K0-200 |
— | ||
|
3
|
3
11640-M51KA-000
Bracket, eng rh mtg
|
11640-M51KA-000 |
— | ||
|
4
|
4
11651-M68K0-000
Bracket, eng lh mtg
|
11651-M68K0-000 |
— | ||
|
5
|
5
11670-M68K0-000
Bracket, eng lh mtg body
|
11670-M68K0-000 |
— | ||
|
6
|
6
09103-10414-000 BOLT(10X105) |
09103-10414-000 |
US $29.40 |
||
|
7
|
7
01421-1025A-000 BOLT,STUD |
01421-1025A-000 |
US $14.40 |
||
|
8
|
8
01550-1025A-000 BoltBolt, drive gear |
01550-1025A-000 |
from US $1.06 |
||
|
9
|
9
01550-1030A-000 Bolt |
01550-1030A-000 |
from US $1.12 |
||
|
10
|
10
01550-1045A-000 Bolt |
01550-1045A-000 |
US $19.50 |
||
|
11
|
11
01551-1025A-000 Bolt |
01551-1025A-000 |
US $1.12 |
||
|
12
|
12
08316-1010A-000 NUTNut, kick starter |
08316-1010A-000 |
from US $0.76 |
||
|
13
|
13
11710-M68K0-000
Mounting, eng rr
|
11710-M68K0-000 |
— | ||
|
14
|
14
11740-M68K0-000
Bracket comp, eng rr mtg
|
11740-M68K0-000 |
— | ||
|
15
|
15
11749-M68K0-000
Bracket, eng rr mtg
|
11749-M68K0-000 |
— | ||
|
16
|
16
09103-10426-000 BOLT(10X90) |
09103-10426-000 |
US $30.90 |
||
|
17
|
17
09103-10342-000 BOLT(10X32) |
09103-10342-000 |
from US $6.14 |
||
|
18
|
18
01551-1025A-000 Bolt |
01551-1025A-000 |
US $1.12 |
||
|
19
|
19
01550-1050A-000 BoltBolt, exhaust tube |
01550-1050A-000 |
from US $1.28 |
||
|
20
|
20
01551-1025C-000 Bolt |
01551-1025C-000 |
from US $3.38 |
