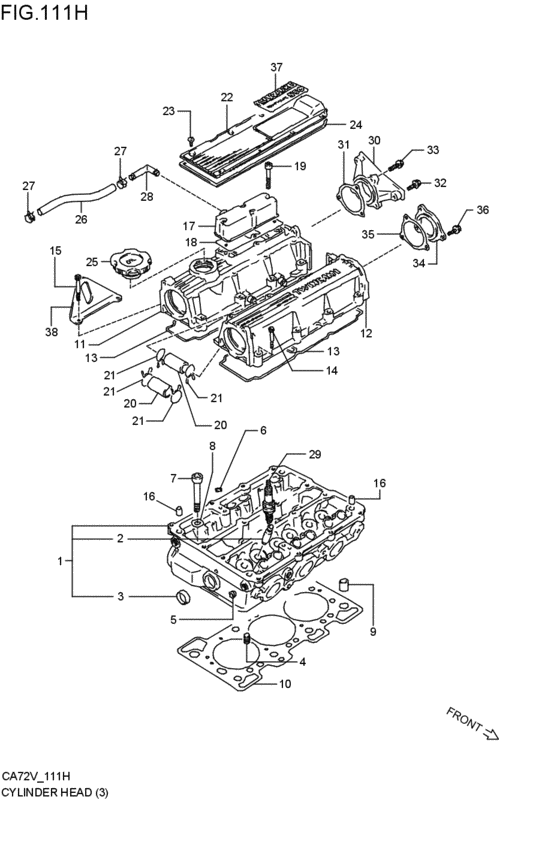

Cylinder head (DOHC:EPI; 1986-07-01~1988-07-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 1986 - 1987
- Sales region
- Japan
- Engine
- DOHC
- supercharge
- EPI
- transmission
- MT
- Number of doors
- 3DR
- grade
- RS
- number of the gears
- 5MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11110-53A01-000
ヘッド,シリンダ
DOHC:EPI; 1986-07-01~1987-12-01 |
11110-53A01-000 |
— | ||
|
1
|
1
11110-53A03-000
ヘッド,シリンダ
DOHC:EPI; 1987-12-01~1988-07-01 |
11110-53A03-000 |
— | ||
| replacement | |||||
|
1
|
1
11110-53A05-000
Head,cylinder
DOHC:EPI; 1987-12-01~1988-07-01 |
11110-53A05-000 |
— | ||
|
2
|
2
11115-86500-001
ガイド,バルブ
DOHC:EPI; 1986-07-01~1988-07-01 |
11115-86500-001 |
— | ||
| replacement | |||||
|
2
|
2
11115-62D00-001 GUIDE,VALVEDOHC:EPI; 1986-07-01~1988-07-01 |
11115-62D00-001 |
US $47.20 |
||
|
3
|
3
09241-20004-000
PLUG
DOHC:EPI; 1986-07-01~1988-07-01 |
09241-20004-000 |
— | ||
| replacement | |||||
|
3
|
3
09241-20006-000 PLUGPlug, crank pin oil DOHC:EPI; 1986-07-01~1988-07-01 |
09241-20006-000 |
from US $1.60 |
||
|
4
|
4
11112-53A00-000 PLUG,OIL VENTURIDOHC:EPI; 1986-07-01~1988-07-01 |
11112-53A00-000 |
from US $2.24 |
||
|
5
|
5
09246-05003-000
プラグ,1/8PT,H:5.5
DOHC:EPI; 1986-07-01~1988-07-01 |
09246-05003-000 |
— | ||
| replacement | |||||
|
5
|
5
09246-05006-000 PLUG(1/8PT,H:5.5)DOHC:EPI; 1986-07-01~1988-07-01 |
09246-05006-000 |
from US $1.76 |
||
|
6
|
6
09280-06006-000
O ring
DOHC:EPI; 1987-02-01~1987-07-01 |
09280-06006-000 |
— | ||
| replacement | |||||
|
6
|
6
11157-78G70-000 O-RING,OIL PIPEDOHC:EPI; 1987-02-01~1987-07-01 |
11157-78G70-000 |
from US $2.06 |
||
|
7
|
7
11119-81400-000
ボルト,シリンダヘッド
DOHC:EPI; 1987-12-01~1988-07-01 |
11119-81400-000 |
— | ||
| replacement | |||||
|
7
|
7
11117-52E10-000 BOLT,CYLINDER HEADDOHC:EPI; 1987-12-01~1988-07-01 |
11117-52E10-000 |
from US $2.75 |
||
|
7
|
7
07110-10756-000
Bolt
DOHC:EPI; 1986-07-01~1987-12-01 |
07110-10756-000 |
— | ||
| replacement | |||||
|
7
|
7
07110-1075A-000
Bolt
DOHC:EPI; 1986-07-01~1987-12-01 |
07110-1075A-000 |
— | ||
|
8
|
8
11118-86500-000
WASHER,CYLINDER
DOHC:EPI; 1986-07-01~1987-12-01 |
11118-86500-000 |
— | ||
|
8
|
8
11118-86501-000
WASHER,CYLINDER HEAD BOLT
DOHC:EPI; 1987-12-01~1988-07-01 |
11118-86501-000 |
— | ||
|
9
|
9
09206-13001-000
Pin
DOHC:EPI; 1986-07-01~1988-07-01 |
09206-13001-000 |
— | ||
| replacement | |||||
|
9
|
9
04211-13189-000 PINDOHC:EPI; 1986-07-01~1988-07-01 |
04211-13189-000 |
from US $1.22 |
||
|
10
|
10
11141-53A01-000
Gasket,cylinder head
DOHC:EPI; 1986-07-01~1988-07-01 |
11141-53A01-000 |
— | ||
|
11
|
11
11120-53A01-000
ハウジング,インテークカムシャフト
DOHC:EPI; 1986-07-01~1987-07-01 |
11120-53A01-000 |
— | ||
|
11
|
11
11120-53A02-000
ハウジング,インテークカムシャフト
DOHC:EPI; 1987-07-01~1988-07-01 |
11120-53A02-000 |
— | ||
| replacement | |||||
|
11
|
11
11120-80F0V-000 HOUSING,INTAKE CAMSHAFTDOHC:EPI; 1987-07-01~1988-07-01 |
11120-80F0V-000 |
US $784.32 |
||
|
12
|
12
11130-53A01-000
ハウジング,エキゾーストカムシャフト
DOHC:EPI; 1986-07-01~1987-07-01 |
11130-53A01-000 |
— | ||
|
12
|
12
11130-53A02-000
ハウジング,エキゾーストカムシャフト
DOHC:EPI; 1987-07-01~1988-07-01 |
11130-53A02-000 |
— | ||
|
13
|
13
11139-53A02-000
ガスケット,カムシャフトハウジング
DOHC:EPI; 1986-07-01~1988-07-01 |
11139-53A02-000 |
— | ||
| replacement | |||||
|
13
|
13
11139-53A03-000 GASKET,CAMSHAFT HOUSINGDOHC:EPI; 1986-07-01~1988-07-01 |
11139-53A03-000 |
US $52.80 |
||
|
14
|
14
07110-06355-000 BoltDOHC:EPI; 1986-07-01~1988-07-01 |
07110-06355-000 |
US $1.61 |
||
| replacement | |||||
|
14
|
14
07130-0635B-000 BoltBolt, magneto stator DOHC:EPI; 1986-07-01~1988-07-01 |
07130-0635B-000 |
from US $0.91 |
||
|
15
|
15
07110-06405-000 BoltDOHC:EPI; 1986-07-01~1988-07-01 |
07110-06405-000 |
US $1.09 |
||
| replacement | |||||
|
15
|
15
07130-0640B-000 BoltBolt, camshaft housing DOHC:EPI; 1986-07-01~1988-07-01 |
07130-0640B-000 |
from US $1.12 |
||
|
16
|
16
04211-09129-000 PINPin DOHC:EPI; 1986-07-01~1988-07-01 |
04211-09129-000 |
from US $1.12 |
||
|
17
|
17
11180-53A00-000
ケース,ブリーザ
DOHC:EPI; 1986-07-01~1988-07-01 |
11180-53A00-000 |
— | ||
|
18
|
18
11189-53A00-000
ガスケット,ブリーザケース
DOHC:EPI; 1986-07-01~1988-07-01 |
11189-53A00-000 |
— | ||
| replacement | |||||
|
18
|
18
11189-53A01-000 GASKET,BREATHER CASEDOHC:EPI; 1986-07-01~1988-07-01 |
11189-53A01-000 |
US $23.56 |
||
|
19
|
19
07110-06405-000 BoltDOHC:EPI; 1986-07-01~1988-07-01 |
07110-06405-000 |
US $1.09 |
||
| replacement | |||||
|
19
|
19
07130-0640B-000 BoltBolt, camshaft housing DOHC:EPI; 1986-07-01~1988-07-01 |
07130-0640B-000 |
from US $1.12 |
||
|
20
|
20
11123-53A00-000
ホース,オイルドレーン
DOHC:EPI; 1986-07-01~1988-07-01 |
11123-53A00-000 |
— | ||
|
21
|
21
09401-16401-000 CLIPCHKK; DOHC:EPI; 1986-07-01~1988-07-01 |
09401-16401-000 |
from US $1.92 |
||
|
22
|
22
11170-53A00-000
カバー,カムシャフトハウジング
DOHC:EPI; 1986-07-01~1988-07-01 |
11170-53A00-000 |
— | ||
| replacement | |||||
|
22
|
22
11170-80F01-000 COVER,CAMSHAFT HOUSINGDOHC:EPI; 1986-07-01~1988-07-01 |
11170-80F01-000 |
US $61.60 |
||
|
23
|
23
02112-05105-000
Screw 5x10
DOHC:EPI; 1986-07-01~1988-07-01 |
02112-05105-000 |
— | ||
| replacement | |||||
|
23
|
23
02112-0510A-000 SCREWDOHC:EPI; 1986-07-01~1988-07-01 |
02112-0510A-000 |
from US $0.76 |
||
|
24
|
24
11173-53A01-000
SEAL,CAMSHAFT HOUSING COVER
DOHC:EPI; 1986-07-01~1988-07-01 |
11173-53A01-000 |
— | ||
|
25
|
25
16920-86501-000
CAP OIL FILTER
DOHC:EPI; 1986-07-01~1988-07-01 |
16920-86501-000 |
— | ||
| replacements | |||||
|
25
|
25
16920-83G00-000
Cap,oil filler
DOHC:EPI; 1986-07-01~1988-07-01 |
16920-83G00-000 |
— | ||
|
25
|
25
16920-83G01-000 CAP OIL FILLERDOHC:EPI; 1986-07-01~1988-07-01 |
16920-83G01-000 |
US $10.22 |
||
|
26
|
26
11191-53A01-000
ホース,ブリーザ
DOHC:EPI; 1986-07-01~1988-07-01 |
11191-53A01-000 |
— | ||
| replacements | |||||
|
26
|
26
09355-90145-600 HOSE(9X14X600)DOHC:EPI; 1986-07-01~1988-07-01 |
09355-90145-600 |
from US $4.34 |
||
|
26
|
26
09401-13417-000 CLIPDOHC:EPI; 1986-07-01~1988-07-01 |
09401-13417-000 |
from US $0.79 |
||
|
27
|
27
09401-15407-000 CLIPBolt, 2nd air hose DOHC:EPI; 1986-07-01~1988-07-01 |
09401-15407-000 |
from US $1.15 |
||
|
28
|
28
11192-53A01-000
パイプ,ブリーザホース
DOHC:EPI; 1986-07-01~1988-07-01 |
11192-53A01-000 |
— | ||
|
29
|
29
09482-00368-000
スパークプラグ,XU22EPーU
DENSO,OPT,DENSO; DOHC:EPI; 1986-07-01~1988-07-01 |
09482-00368-000 |
— | ||
| replacement | |||||
|
29
|
29
09482-00449-000 PLUG,SPARK(XU22EPR-U)DENSO,OPT,DENSO; DOHC:EPI; 1986-07-01~1988-07-01 |
09482-00449-000 |
US $11.41 |
||
|
29
|
29
09482-00378-000
スパークプラグ,XU24EPーU
DENSO; DOHC:EPI; 1986-07-01~1988-07-01 |
09482-00378-000 |
— | ||
|
29
|
29
09482-00379-000
スパークプラグ,DCP8E
NGK; DOHC:EPI; 1986-07-01~1988-07-01 |
09482-00379-000 |
— | ||
| replacement | |||||
|
29
|
29
09482-00450-000
PLUG,SPARK(DCPR8E)
NGK; DOHC:EPI; 1986-07-01~1988-07-01 |
09482-00450-000 |
— | ||
|
30
|
30
11161-53A00-000
CASE,DISTRIBUTOR
DOHC:EPI; 1986-07-01~1988-07-01 |
11161-53A00-000 |
— | ||
|
31
|
31
11169-53A01-000
ガスケット,ディストリビュータケース
DOHC:EPI; 1986-07-01~1988-07-01 |
11169-53A01-000 |
— | ||
| replacement | |||||
|
31
|
31
11169-64D00-000 GASKET,DISTRIBUTOR CASE(NA)DOHC:EPI; 1986-07-01~1988-07-01 |
11169-64D00-000 |
US $2.56 |
||
|
32
|
32
01517-06203-000
Bolt
DOHC:EPI; 1986-07-01~1988-07-01 |
01517-06203-000 |
— | ||
| replacements | |||||
|
32
|
32
01550-0620B-000 BoltBolt, inspection cap DOHC:EPI; 1986-07-01~1988-07-01 |
01550-0620B-000 |
from US $0.76 |
||
|
32
|
32
01550-0620A-000 BoltDOHC:EPI; 1986-07-01~1988-07-01 |
01550-0620A-000 |
from US $0.76 |
||
|
33
|
33
01517-06203-000
Bolt
DOHC:EPI; 1986-07-01~1986-09-01 |
01517-06203-000 |
— | ||
| replacements | |||||
|
33
|
33
01550-0620B-000 BoltBolt, inspection cap DOHC:EPI; 1986-07-01~1986-09-01 |
01550-0620B-000 |
from US $0.76 |
||
|
33
|
33
01550-0620A-000 BoltDOHC:EPI; 1986-07-01~1986-09-01 |
01550-0620A-000 |
from US $0.76 |
||
|
33
|
33
01517-06253-000
ボルト
DOHC:EPI; 1986-07-01~1986-10-01 |
01517-06253-000 |
— | ||
| replacements | |||||
|
33
|
33
01550-0625A-000 BoltBolt DOHC:EPI; 1986-07-01~1986-10-01 |
01550-0625A-000 |
from US $0.96 |
||
|
33
|
33
01550-0625B-000 BoltBolt, head cover DOHC:EPI; 1986-07-01~1986-10-01 |
01550-0625B-000 |
from US $0.91 |
||
|
34
|
34
12749-53A00-000
プレート,カムシャフトスラスト
DOHC:EPI; 1986-07-01~1988-07-01 |
12749-53A00-000 |
— | ||
| replacements | |||||
|
34
|
34
01550-0616B-000 BoltDOHC:EPI; 1986-07-01~1988-07-01 |
01550-0616B-000 |
from US $0.76 |
||
|
34
|
34
12749-53A01-000
PLATE,CAMSHAFT THRUST
DOHC:EPI; 1986-07-01~1988-07-01 |
12749-53A01-000 |
— | ||
|
35
|
35
12745-53A01-000
ガスケット,カムシャフトスラストプレート
DOHC:EPI; 1986-07-01~1988-07-01 |
12745-53A01-000 |
— | ||
| replacement | |||||
|
35
|
35
12745-53A02-000 GASKET,CAMSHAFT THRUST PLATEDOHC:EPI; 1986-07-01~1988-07-01 |
12745-53A02-000 |
US $3.68 |
||
|
36
|
36
02122-06123-000
Screw
DOHC:EPI; 1986-07-01~1988-07-01 |
02122-06123-000 |
— | ||
| replacements | |||||
|
36
|
36
02122-0612B-000 SCREWDOHC:EPI; 1986-07-01~1988-07-01 |
02122-0612B-000 |
from US $0.96 |
||
|
36
|
36
02122-0612A-000 SCREWDOHC:EPI; 1986-07-01~1988-07-01 |
02122-0612A-000 |
from US $0.96 |
||
|
37
|
37
11966-53A00-000
プレート,カムハウジングカバー
DOHC:EPI; 1986-07-01~1988-07-01 |
11966-53A00-000 |
— | ||
|
38
|
38
11851-53A00-000
フック,エンジン
DOHC:EPI; 1986-07-01~1988-07-01 |
11851-53A00-000 |
— | ||
| replacement | |||||
|
38
|
38
11851-62B00-000 HOOKDOHC:EPI; 1986-07-01~1988-07-01 |
11851-62B00-000 |
from US $1.87 |
||
