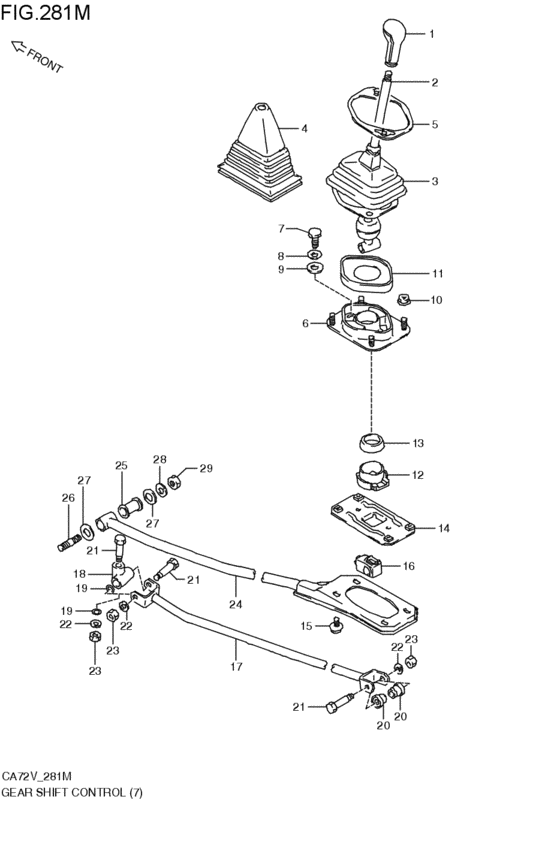

gearlever control (MT:DOHC:EPI; 1986-07-01~1988-07-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 1986 - 1987
- Sales region
- Japan
- Engine
- DOHC
- supercharge
- EPI
- transmission
- MT
- Number of doors
- 3DR
- grade
- RS
- number of the gears
- 5MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28113-50A90-281
ノブ(ブラック)
ブラック; MT:DOHC:EPI; 1986-07-01~1988-07-01 |
28113-50A90-281 |
— | ||
|
2
|
2
28110-84000-000
レバー,ギヤシフトコントロール
MT:DOHC:EPI; 1986-07-01~1988-07-01 |
28110-84000-000 |
— | ||
|
3
|
3
28135-78000-000 BOOT,GR SHF CONT LEVERMT:DOHC:EPI; 1986-07-01~1988-07-01 |
28135-78000-000 |
from US $5.92 |
||
|
4
|
4
28136-50A90-281
ブーツ,レバー
ブラック; MT:DOHC:EPI; 1986-07-01~1988-07-01 |
28136-50A90-281 |
— | ||
|
5
|
5
28145-78000-000
カバー,ギヤシフトコントロールブーツ
MT:DOHC:EPI; 1986-07-01~1988-07-01 |
28145-78000-000 |
— | ||
| replacement | |||||
|
5
|
5
28145-70G00-000 COVER,GEAR SHF CONT BOOTMT:DOHC:EPI; 1986-07-01~1988-07-01 |
28145-70G00-000 |
US $6.24 |
||
|
6
|
6
28180-78002-000 HOUSING,LEVERMT:DOHC:EPI; 1986-07-01~1988-07-01 |
28180-78002-000 |
from US $7.07 |
||
|
7
|
7
01107-10163-000
ボルト
MT:DOHC:EPI; 1986-07-01~1988-07-01 |
01107-10163-000 |
— | ||
| replacement | |||||
|
7
|
7
01500-1016B-000 BoltPlug, oil drain MT:DOHC:EPI; 1986-07-01~1988-07-01 |
01500-1016B-000 |
US $17.30 |
||
|
8
|
8
08321-21103-000 Lock washerMT:DOHC:EPI; 1986-07-01~1988-07-01 |
08321-21103-000 |
from US $0.77 |
||
| replacements | |||||
|
8
|
8
08321-0110B-000 WASHER,LOCKWasher, knuckle end MT:DOHC:EPI; 1986-07-01~1988-07-01 |
08321-0110B-000 |
from US $0.96 |
||
|
8
|
8
08321-0110A-000 WASHER,LOCKMT:DOHC:EPI; 1986-07-01~1988-07-01 |
08321-0110A-000 |
from US $0.96 |
||
|
9
|
9
08322-11103-000 WASHER 105X18X16MT:DOHC:EPI; 1986-07-01~1988-07-01 |
08322-11103-000 |
from US $0.97 |
||
| replacements | |||||
|
9
|
9
08322-0110A-000 WASHERWasher, knuckle end MT:DOHC:EPI; 1986-07-01~1988-07-01 |
08322-0110A-000 |
from US $0.80 |
||
|
9
|
9
08322-0110B-000 WASHERWasher, knuckle end MT:DOHC:EPI; 1986-07-01~1988-07-01 |
08322-0110B-000 |
from US $0.76 |
||
|
10
|
10
08316-16083-000 NutNut MT:DOHC:EPI; 1986-07-01~1988-07-01 |
08316-16083-000 |
from US $1.94 |
||
| replacement | |||||
|
10
|
10
08316-1008B-000 NUTMT:DOHC:EPI; 1986-07-01~1988-07-01 |
08316-1008B-000 |
from US $0.76 |
||
|
11
|
11
28189-78000-000 COVER,GEAR HOUSING DUST SEALMT:DOHC:EPI; 1986-07-01~1988-07-01 |
28189-78000-000 |
US $1.60 |
||
|
12
|
12
28115-78141-000 SEAT,GEAR SHIFT CONT NO.1MT:DOHC:EPI; 1986-07-01~1988-07-01 |
28115-78141-000 |
from US $2.57 |
||
|
13
|
13
28117-78100-000 SEAT,LEVER NO.2MT:DOHC:EPI; 1986-07-01~1988-07-01 |
28117-78100-000 |
from US $3.71 |
||
|
14
|
14
28190-78003-000 PLATE,CONT LEVER GUIDEMT:DOHC:EPI; 1986-07-01~1988-07-01 |
28190-78003-000 |
US $23.18 |
||
|
15
|
15
01517-06103-000
BOLT 6X10
MT:DOHC:EPI; 1986-07-01~1988-07-01 |
01517-06103-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0610A-000 BoltMT:DOHC:EPI; 1986-07-01~1988-07-01 |
01550-0610A-000 |
from US $0.96 |
||
|
15
|
15
01550-0610B-000 BoltBolt MT:DOHC:EPI; 1986-07-01~1988-07-01 |
01550-0610B-000 |
from US $0.96 |
||
|
16
|
16
28279-78001-000 BOOT,SHIFTMT:DOHC:EPI; 1986-07-01~1988-07-01 |
28279-78001-000 |
from US $0.79 |
||
|
17
|
17
28250-50A00-000
シャフト,ギヤシフトコントロール
MT:DOHC:EPI; 1986-07-01~1988-07-01 |
28250-50A00-000 |
— | ||
|
18
|
18
28271-78000-000 JOINT,SHAFTMT:DOHC:EPI; 1986-07-01~1988-07-01 |
28271-78000-000 |
US $18.77 |
||
|
19
|
19
09280-08009-000 O RING(D:4,ID:7.8)MT:DOHC:EPI; 1986-07-01~1988-07-01 |
09280-08009-000 |
US $9.60 |
||
|
20
|
20
09305-08015-000 BUSHMT:DOHC:EPI; 1986-07-01~1988-07-01 |
09305-08015-000 |
from US $0.83 |
||
|
21
|
21
09111-06017-000 BOLT(6X50.3)MT:DOHC:EPI; 1986-07-01~1988-07-01 |
09111-06017-000 |
from US $0.56 |
||
|
22
|
22
08321-21063-000 Lock washerMT:DOHC:EPI; 1986-07-01~1988-07-01 |
08321-21063-000 |
US $1.07 |
||
| replacement | |||||
|
22
|
22
08321-0106A-000 WASHER,LOCKMT:DOHC:EPI; 1986-07-01~1988-07-01 |
08321-0106A-000 |
from US $0.76 |
||
|
23
|
23
08310-11063-000 Nut m6x1x5MT:DOHC:EPI; 1986-07-01~1988-07-01 |
08310-11063-000 |
US $1.07 |
||
| replacements | |||||
|
23
|
23
08310-0006B-000 NUTNut gear shift link rod MT:DOHC:EPI; 1986-07-01~1988-07-01 |
08310-0006B-000 |
from US $0.76 |
||
|
23
|
23
08310-0006A-000 NUTMT:DOHC:EPI; 1986-07-01~1988-07-01 |
08310-0006A-000 |
from US $0.76 |
||
|
24
|
24
28260-84000-000
ロッド,エクステンション
MT:DOHC:EPI; 1986-07-01~1988-07-01 |
28260-84000-000 |
— | ||
|
25
|
25
09305-14006-000 BUSHMT:DOHC:EPI; 1986-07-01~1988-07-01 |
09305-14006-000 |
from US $1.53 |
||
|
26
|
26
09108-10083-000
スタッドボルト
MT:DOHC:EPI; 1986-07-01~1988-07-01 |
09108-10083-000 |
— | ||
|
27
|
27
09160-10078-000 WasherMT:DOHC:EPI; 1986-07-01~1988-07-01 |
09160-10078-000 |
from US $1.22 |
||
| replacements | |||||
|
27
|
27
09160-10035-000 WASHER(10.5X28X2.3)Washer MT:DOHC:EPI; 1986-07-01~1988-07-01 |
09160-10035-000 |
from US $1.28 |
||
|
27
|
27
09160-10129-000 WASHER(10.5X28X1.6)Washer (10.5x28x1.6) MT:DOHC:EPI; 1986-07-01~1988-07-01 |
09160-10129-000 |
from US $0.97 |
||
|
28
|
28
08321-21103-000 Lock washerMT:DOHC:EPI; 1986-07-01~1988-07-01 |
08321-21103-000 |
from US $0.77 |
||
| replacements | |||||
|
28
|
28
08321-0110B-000 WASHER,LOCKWasher, knuckle end MT:DOHC:EPI; 1986-07-01~1988-07-01 |
08321-0110B-000 |
from US $0.96 |
||
|
28
|
28
08321-0110A-000 WASHER,LOCKMT:DOHC:EPI; 1986-07-01~1988-07-01 |
08321-0110A-000 |
from US $0.96 |
||
|
29
|
29
08310-12103-000 NutMT:DOHC:EPI; 1986-07-01~1988-07-01 |
08310-12103-000 |
US $0.63 |
||
| replacements | |||||
|
29
|
29
08310-0010B-000 NUTMT:DOHC:EPI; 1986-07-01~1988-07-01 |
08310-0010B-000 |
from US $0.83 |
||
|
29
|
29
08310-0010A-000 NUTMT:DOHC:EPI; 1986-07-01~1988-07-01 |
08310-0010A-000 |
from US $0.80 |
||
