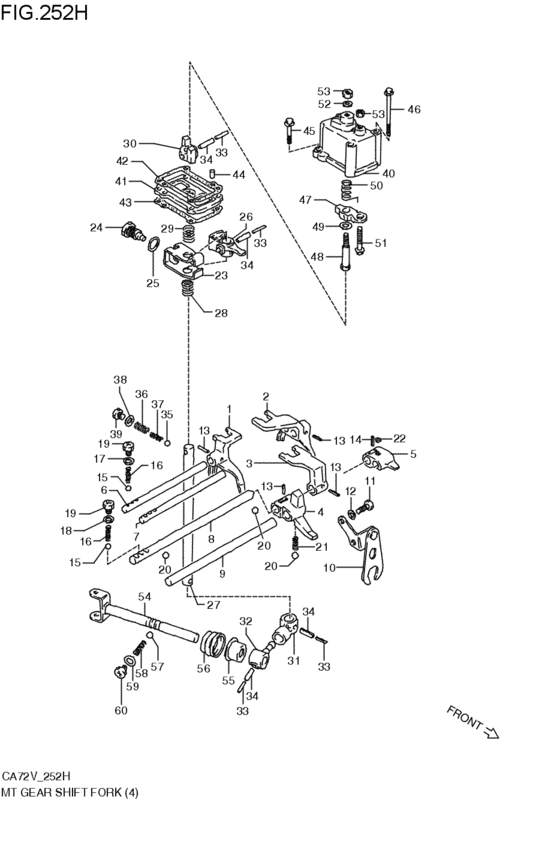

mt - gearlever fork (MT:DOHC:EPI; 1986-07-01~1988-07-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 1986 - 1987
- Sales region
- Japan
- Engine
- DOHC
- supercharge
- EPI
- transmission
- MT
- Number of doors
- 3DR
- grade
- RS
- number of the gears
- 5MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
25211-84002-000
フォーク,ロースピードギヤシフト
MT:DOHC:EPI; 1986-07-01~1988-07-01 |
25211-84002-000 |
— | ||
|
2
|
2
25221-84001-000
フォーク,ハイスピードギヤシフト
MT:DOHC:EPI; 1986-07-01~1988-07-01 |
25221-84001-000 |
— | ||
|
3
|
3
25261-84001-000
ヨーク,フィフス/リバースギヤシフト
MT:DOHC:EPI; 1986-07-01~1988-07-01 |
25261-84001-000 |
— | ||
|
4
|
4
25251-81051-000
アーム,リバースギヤシフト
MT:DOHC:EPI; 1986-07-01~1988-07-01 |
25251-81051-000 |
— | ||
|
5
|
5
25231-81050-000
フォーク,フィフスギヤシフト
MT:DOHC:EPI; 1986-07-01~1988-07-01 |
25231-81050-000 |
— | ||
|
6
|
6
25411-84001-000
シャフト,ロースピード
MT:DOHC:EPI; 1986-07-01~1988-07-01 |
25411-84001-000 |
— | ||
|
7
|
7
25421-84001-000
シャフト,ハイスピード
MT:DOHC:EPI; 1986-07-01~1988-07-01 |
25421-84001-000 |
— | ||
|
8
|
8
25451-84052-000
シャフト,リバースギヤシフトフォーク
MT:DOHC:EPI; 1986-07-01~1988-07-01 |
25451-84052-000 |
— | ||
|
9
|
9
25431-84050-000
シャフト,フィフス/リバースギヤシフトガイド
MT:DOHC:EPI; 1986-07-01~1988-07-01 |
25431-84050-000 |
— | ||
|
10
|
10
25460-78140-000
レバー,リバースギヤシフト
MT:DOHC:EPI; 1986-07-01~1988-07-01 |
25460-78140-000 |
— | ||
|
11
|
11
01107-08203-000
Bolt
MT:DOHC:EPI; 1986-07-01~1988-07-01 |
01107-08203-000 |
— | ||
| replacement | |||||
|
11
|
11
01500-0820A-000 BoltMT:DOHC:EPI; 1986-07-01~1988-07-01 |
01500-0820A-000 |
from US $0.80 |
||
|
12
|
12
08321-21083-000
Washr,lk8.2x15.
MT:DOHC:EPI; 1986-07-01~1988-07-01 |
08321-21083-000 |
— | ||
| replacements | |||||
|
12
|
12
08321-0108B-000 WASHER,LOCKMT:DOHC:EPI; 1986-07-01~1988-07-01 |
08321-0108B-000 |
from US $0.76 |
||
|
12
|
12
08321-0108A-000 WASHER,LOCKMT:DOHC:EPI; 1986-07-01~1988-07-01 |
08321-0108A-000 |
from US $0.90 |
||
|
13
|
13
09205-04009-000 PIN,SPRING(4.5X20)MT:DOHC:EPI; 1986-07-01~1988-07-01 |
09205-04009-000 |
from US $0.29 |
||
| replacement | |||||
|
13
|
13
09205-04015-000 PIN,SPRING(4.5X20)MT:DOHC:EPI; 1986-07-01~1988-07-01 |
09205-04015-000 |
from US $3.56 |
||
|
14
|
14
09205-04003-000 PIN,SPRING(4.5X18)MT:DOHC:EPI; 1986-07-01~1988-07-01 |
09205-04003-000 |
from US $0.45 |
||
|
15
|
15
06111-10003-000 BALLMT:DOHC:EPI; 1986-07-01~1988-07-01 |
06111-10003-000 |
from US $0.80 |
||
|
16
|
16
09440-07032-000
Spring
MT:DOHC:EPI; 1986-07-01~1988-07-01 |
09440-07032-000 |
— | ||
|
17
|
17
08322-11103-000 WASHER 105X18X16MT:DOHC:EPI; 1986-07-01~1988-07-01 |
08322-11103-000 |
from US $0.97 |
||
| replacements | |||||
|
17
|
17
08322-0110A-000 WASHERWasher, knuckle end MT:DOHC:EPI; 1986-07-01~1988-07-01 |
08322-0110A-000 |
from US $0.80 |
||
|
17
|
17
08322-0110B-000 WASHERWasher, knuckle end MT:DOHC:EPI; 1986-07-01~1988-07-01 |
08322-0110B-000 |
from US $0.76 |
||
|
18
|
18
09168-10007-000 GASKET(10.1X16X1)Gasket, parking pawl MT:DOHC:EPI; 1986-07-01~1988-07-01 |
09168-10007-000 |
from US $1.76 |
||
|
19
|
19
09128-10002-000 BOLT(10X9)MT:DOHC:EPI; 1986-07-01~1988-07-01 |
09128-10002-000 |
from US $0.47 |
||
|
20
|
20
06111-10003-000 BALLMT:DOHC:EPI; 1986-07-01~1988-07-01 |
06111-10003-000 |
from US $0.80 |
||
|
21
|
21
09440-07048-000
スプリング
MT:DOHC:EPI; 1986-07-01~1988-07-01 |
09440-07048-000 |
— | ||
| replacement | |||||
|
21
|
21
09440-07005-000 SPRINGMT:DOHC:EPI; 1986-07-01~1988-07-01 |
09440-07005-000 |
from US $0.92 |
||
|
22
|
22
09134-10003-000
New Genuine Part
MT:DOHC:EPI; 1986-07-01~1988-07-01 |
09134-10003-000 |
— | ||
| replacement | |||||
|
22
|
22
09134-10003-XC0
Screw,10x5
MT:DOHC:EPI; 1986-07-01~1988-07-01 |
09134-10003-XC0 |
— | ||
|
23
|
23
25311-82001-000
PLATEGEAR SHFT INTERLOCK
MT:DOHC:EPI; 1986-07-01~1988-07-01 |
25311-82001-000 |
— | ||
|
24
|
24
25321-84200-000
ボルト,ギヤシフトロケイティング
MT:DOHC:EPI; 1986-07-01~1988-07-01 |
25321-84200-000 |
— | ||
|
25
|
25
09160-16028-000 Washer (16.2x22x1)MT:DOHC:EPI; 1986-07-01~1988-07-01 |
09160-16028-000 |
US $2.63 |
||
| replacement | |||||
|
25
|
25
09160-16043-000 WASHER(16.5X22X1)MT:DOHC:EPI; 1986-07-01~1988-07-01 |
09160-16043-000 |
from US $1.12 |
||
|
26
|
26
25541-84000-000
レバー,ギヤシフト/セレクト
MT:DOHC:EPI; 1986-07-01~1988-07-01 |
25541-84000-000 |
— | ||
| replacement | |||||
|
26
|
26
25541-82000-000
Lever,gear shft/select
MT:DOHC:EPI; 1986-07-01~1988-07-01 |
25541-82000-000 |
— | ||
|
27
|
27
25571-84051-000
シャフト,ギヤシフト/セレクト
MT:DOHC:EPI; 1986-07-01~1988-07-01 |
25571-84051-000 |
— | ||
|
28
|
28
09440-18021-000
スプリング
MT:DOHC:EPI; 1986-07-01~1988-07-01 |
09440-18021-000 |
— | ||
|
29
|
29
09440-18022-000
スプリング
MT:DOHC:EPI; 1986-07-01~1988-07-01 |
09440-18022-000 |
— | ||
|
30
|
30
25581-81050-000
カム,フィフス/リバースギヤシフト
MT:DOHC:EPI; 1986-07-01~1988-07-01 |
25581-81050-000 |
— | ||
|
31
|
31
25531-78141-000
アーム,ギヤシフト
MT:DOHC:EPI; 1986-07-01~1988-07-01 |
25531-78141-000 |
— | ||
|
32
|
32
25521-78142-000
ヨーク,ギヤシフト
MT:DOHC:EPI; 1986-07-01~1988-07-01 |
25521-78142-000 |
— | ||
|
33
|
33
09205-03016-000 PIN,SPRING(3.5X28)MT:DOHC:EPI; 1986-07-01~1988-07-01 |
09205-03016-000 |
from US $0.41 |
||
|
34
|
34
09205-06004-000 PIN,SPRING(6X28)MT:DOHC:EPI; 1986-07-01~1988-07-01 |
09205-06004-000 |
from US $0.36 |
||
|
35
|
35
06111-10003-000 BALLMT:DOHC:EPI; 1986-07-01~1988-07-01 |
06111-10003-000 |
from US $0.80 |
||
|
36
|
36
09440-07005-000 SPRINGMT:DOHC:EPI; 1986-07-01~1988-07-01 |
09440-07005-000 |
from US $0.92 |
||
|
37
|
37
09440-04019-000 SPRINGMT:DOHC:EPI; 1986-07-01~1988-07-01 |
09440-04019-000 |
from US $0.45 |
||
|
38
|
38
09168-10007-000 GASKET(10.1X16X1)Gasket, parking pawl MT:DOHC:EPI; 1986-07-01~1988-07-01 |
09168-10007-000 |
from US $1.76 |
||
|
39
|
39
09128-10002-000 BOLT(10X9)MT:DOHC:EPI; 1986-07-01~1988-07-01 |
09128-10002-000 |
from US $0.47 |
||
|
40
|
40
25573-84000-000
ケース,ギヤシフトガイド
MT:DOHC:EPI; 1986-07-01~1988-07-01 |
25573-84000-000 |
— | ||
|
41
|
41
25575-81051-000
PLATE,GEAR SHF GUIDE CASE
MT:DOHC:EPI; 1986-07-01~1988-07-01 |
25575-81051-000 |
— | ||
|
42
|
42
25574-81050-000
ガスケット,ガイドケース
MT:DOHC:EPI; 1986-07-01~1988-07-01 |
25574-81050-000 |
— | ||
| replacement | |||||
|
42
|
42
25574-81050-H17
GASKET,GEAR SHF GUIDE CASE NA
MT:DOHC:EPI; 1986-07-01~1988-07-01 |
25574-81050-H17 |
— | ||
|
43
|
43
25574-81050-000
ガスケット,ガイドケース
MT:DOHC:EPI; 1986-07-01~1988-07-01 |
25574-81050-000 |
— | ||
| replacement | |||||
|
43
|
43
25574-81050-H17
GASKET,GEAR SHF GUIDE CASE NA
MT:DOHC:EPI; 1986-07-01~1988-07-01 |
25574-81050-H17 |
— | ||
|
44
|
44
04221-06129-000 PINMT:DOHC:EPI; 1986-07-01~1988-07-01 |
04221-06129-000 |
from US $0.96 |
||
|
45
|
45
01517-06303-000
BOLT M6X1X30
MT:DOHC:EPI; 1986-07-01~1988-07-01 |
01517-06303-000 |
— | ||
| replacement | |||||
|
45
|
45
01550-0630A-000 BoltMT:DOHC:EPI; 1986-07-01~1988-07-01 |
01550-0630A-000 |
from US $1.12 |
||
|
46
|
46
01537-06703-000 ボルトMT:DOHC:EPI; 1986-07-01~1988-07-01 |
01537-06703-000 |
US $2.40 |
||
| replacement | |||||
|
46
|
46
01550-0670B-000 BoltMT:DOHC:EPI; 1986-07-01~1988-07-01 |
01550-0670B-000 |
from US $4.80 |
||
|
47
|
47
25582-81052-000
ガイド,フィフス/リバースギヤシフトカム
MT:DOHC:EPI; 1986-07-01~1988-07-01 |
25582-81052-000 |
— | ||
|
48
|
48
25583-81051-000
ボルト,フィフス/リバースギヤシフトガイド
MT:DOHC:EPI; 1986-07-01~1988-07-01 |
25583-81051-000 |
— | ||
|
49
|
49
08212-12202-000 WASHERMT:DOHC:EPI; 1986-07-01~1988-07-01 |
08212-12202-000 |
US $11 |
||
|
50
|
50
09448-15006-000
FEDER
MT:DOHC:EPI; 1986-07-01~1988-07-01 |
09448-15006-000 |
— | ||
|
51
|
51
25584-81051-000
スクリュ,フィフス/リバースギヤシフトガイド
MT:DOHC:EPI; 1986-07-01~1988-07-01 |
25584-81051-000 |
— | ||
|
52
|
52
08322-11083-000 WasherWasher MT:DOHC:EPI; 1986-07-01~1988-07-01 |
08322-11083-000 |
US $1.07 |
||
| replacements | |||||
|
52
|
52
08322-0108B-000 WASHERMT:DOHC:EPI; 1986-07-01~1988-07-01 |
08322-0108B-000 |
from US $0.96 |
||
|
52
|
52
08322-0108A-000 WASHERMT:DOHC:EPI; 1986-07-01~1988-07-01 |
08322-0108A-000 |
from US $0.96 |
||
|
53
|
53
08310-11083-000
NUT M8X125X65
MT:DOHC:EPI; 1986-07-01~1988-07-01 |
08310-11083-000 |
— | ||
| replacements | |||||
|
53
|
53
08310-0008A-000 NUTNut, bead stopper MT:DOHC:EPI; 1986-07-01~1988-07-01 |
08310-0008A-000 |
from US $0.76 |
||
|
53
|
53
08310-0008B-000 NUTMT:DOHC:EPI; 1986-07-01~1988-07-01 |
08310-0008B-000 |
from US $0.96 |
||
|
54
|
54
25510-84000-000
シャフト,ギヤシフト
MT:DOHC:EPI; 1986-07-01~1988-07-01 |
25510-84000-000 |
— | ||
|
55
|
55
09289-14001-000 オイルシール,14X25X19MT:DOHC:EPI; 1986-07-01~1988-07-01 |
09289-14001-000 |
US $11.27 |
||
| replacements | |||||
|
55
|
55
25517-60B01-000 SEAL,GEAR SHIFT OILMT:DOHC:EPI; 1986-07-01~1988-07-01 |
25517-60B01-000 |
from US $8.66 |
||
|
55
|
55
25517-60B00-000 Oil seal14x25x19 MT:DOHC:EPI; 1986-07-01~1988-07-01 |
25517-60B00-000 |
US $11.27 |
||
|
56
|
56
28278-78001-000 BOOT,CONTROL SHAFTMT:DOHC:EPI; 1986-07-01~1988-07-01 |
28278-78001-000 |
from US $1.67 |
||
|
57
|
57
06111-10003-000 BALLMT:DOHC:EPI; 1986-07-01~1988-07-01 |
06111-10003-000 |
from US $0.80 |
||
|
58
|
58
09440-07005-000 SPRINGMT:DOHC:EPI; 1986-07-01~1988-07-01 |
09440-07005-000 |
from US $0.92 |
||
|
59
|
59
09168-10007-000 GASKET(10.1X16X1)Gasket, parking pawl MT:DOHC:EPI; 1986-07-01~1988-07-01 |
09168-10007-000 |
from US $1.76 |
||
|
60
|
60
09128-10002-000 BOLT(10X9)MT:DOHC:EPI; 1986-07-01~1988-07-01 |
09128-10002-000 |
from US $0.47 |
||
