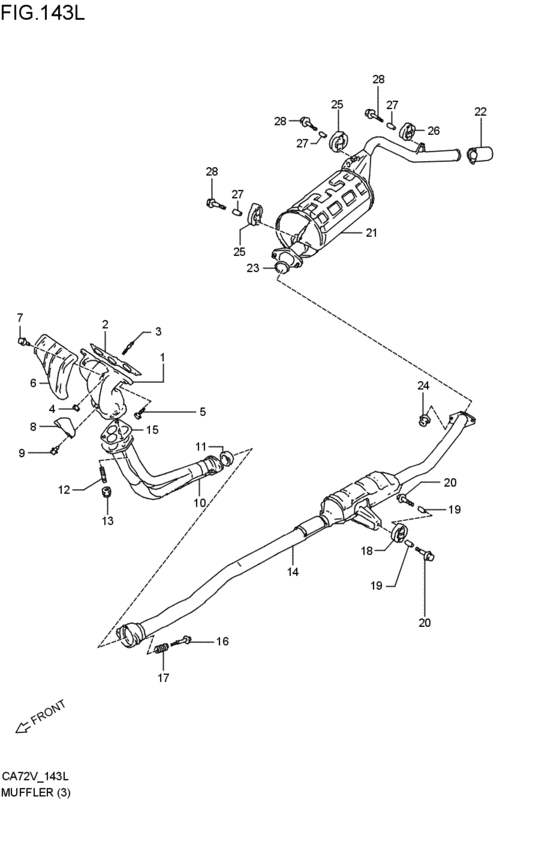

muffler (DOHC:EPI; 1986-07-01~1988-07-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 1986 - 1987
- Sales region
- Japan
- Engine
- DOHC
- supercharge
- EPI
- transmission
- MT
- Number of doors
- 3DR
- grade
- RS
- number of the gears
- 5MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14111-53A10-000
マニホールド,エキゾースト
DOHC:EPI; 1986-07-01~1988-07-01 |
14111-53A10-000 |
— | ||
|
2
|
2
14141-53A01-000
ガスケット,エキゾーストマニホールド
DOHC:EPI; 1986-07-01~1988-07-01 |
14141-53A01-000 |
— | ||
| replacement | |||||
|
2
|
2
14141-54A50-000 GASKET,EXH MANFDOHC:EPI; 1986-07-01~1988-07-01 |
14141-54A50-000 |
US $91.20 |
||
|
3
|
3
01411-08253-000
New Genuine Part
DOHC:EPI; 1986-07-01~1988-07-01 |
01411-08253-000 |
— | ||
| replacement | |||||
|
3
|
3
01411-0825A-000 BOLT,STUDDOHC:EPI; 1986-07-01~1988-07-01 |
01411-0825A-000 |
US $1.28 |
||
|
4
|
4
08310-11083-000
NUT M8X125X65
DOHC:EPI; 1986-07-01~1988-07-01 |
08310-11083-000 |
— | ||
| replacements | |||||
|
4
|
4
08310-0008A-000 NUTNut, bead stopper DOHC:EPI; 1986-07-01~1988-07-01 |
08310-0008A-000 |
from US $0.76 |
||
|
4
|
4
08310-0008B-000 NUTDOHC:EPI; 1986-07-01~1988-07-01 |
08310-0008B-000 |
from US $0.96 |
||
|
5
|
5
01107-08253-000 Bolt m8x1.25x25DOHC:EPI; 1986-07-01~1988-07-01 |
01107-08253-000 |
from US $1.04 |
||
| replacement | |||||
|
5
|
5
01500-0825A-000 BoltDOHC:EPI; 1986-07-01~1988-07-01 |
01500-0825A-000 |
from US $0.91 |
||
|
6
|
6
13831-53A10-000
カバー,エキゾーストマニホールド
DOHC:EPI; 1986-07-01~1988-07-01 |
13831-53A10-000 |
— | ||
|
7
|
7
09103-06034-000
Bolt,6x10
DOHC:EPI; 1986-07-01~1988-07-01 |
09103-06034-000 |
— | ||
|
8
|
8
14172-53A10-000
カバー,ジェネレータ
DOHC:EPI; 1986-07-01~1988-07-01 |
14172-53A10-000 |
— | ||
|
9
|
9
01517-06103-000
BOLT 6X10
DOHC:EPI; 1986-07-01~1988-07-01 |
01517-06103-000 |
— | ||
| replacements | |||||
|
9
|
9
01550-0610A-000 BoltDOHC:EPI; 1986-07-01~1988-07-01 |
01550-0610A-000 |
from US $0.96 |
||
|
9
|
9
01550-0610B-000 BoltBolt DOHC:EPI; 1986-07-01~1988-07-01 |
01550-0610B-000 |
from US $0.96 |
||
|
10
|
10
14190-53A10-000
パイプ,エキゾースト,NO.1
DOHC:EPI; 1986-07-01~1988-07-01 |
14190-53A10-000 |
— | ||
|
11
|
11
14183-82601-000
リング,シール
DOHC:EPI; 1986-07-01~1988-07-01 |
14183-82601-000 |
— | ||
| replacement | |||||
|
11
|
11
14183-76A00-000 RING,SEAL EXH PIPEDOHC:EPI; 1986-07-01~1988-07-01 |
14183-76A00-000 |
from US $12.62 |
||
|
12
|
12
01411-10253-000
New Genuine Part
DOHC:EPI; 1986-07-01~1988-07-01 |
01411-10253-000 |
— | ||
| replacement | |||||
|
12
|
12
01411-1025A-000 BOLT,STUDDOHC:EPI; 1986-07-01~1988-07-01 |
01411-1025A-000 |
US $1.60 |
||
|
13
|
13
09159-10017-000
NUT
DOHC:EPI; 1986-07-01~1988-07-01 |
09159-10017-000 |
— | ||
| replacement | |||||
|
13
|
13
09159-10016-000 NUTNut, clamp bracket DOHC:EPI; 1986-07-01~1988-07-01 |
09159-10016-000 |
from US $0.74 |
||
|
14
|
14
14250-53A10-000
パイプ,エキゾースト,NO.2
DOHC:EPI; 1986-07-01~1988-07-01 |
14250-53A10-000 |
— | ||
|
15
|
15
14182-53A00-000
ガスケット,エキゾーストパイプ
DOHC:EPI; 1986-07-01~1988-07-01 |
14182-53A00-000 |
— | ||
|
16
|
16
09119-10042-000
ボルト,10X65
DOHC:EPI; 1986-07-01~1988-07-01 |
09119-10042-000 |
— | ||
| replacement | |||||
|
16
|
16
09119-10041-000 BOLT(10X65)DOHC:EPI; 1986-07-01~1988-07-01 |
09119-10041-000 |
from US $6.14 |
||
|
17
|
17
14492-82600-000
Spring
CHKK; DOHC:EPI; 1986-07-01~1988-07-01 |
14492-82600-000 |
— | ||
| replacement | |||||
|
17
|
17
14492-67D00-000 SPRING,EXH PIPECHKK; DOHC:EPI; 1986-07-01~1988-07-01 |
14492-67D00-000 |
from US $6.21 |
||
|
18
|
18
14281-78010-000
Mounting, muffler
DOHC:EPI; 1986-07-01~1988-07-01 |
14281-78010-000 |
— | ||
| replacement | |||||
|
18
|
18
14281-60G01-000 MOUNTING,MUFDOHC:EPI; 1986-07-01~1988-07-01 |
14281-60G01-000 |
from US $5.96 |
||
|
19
|
19
09180-08057-000
Spacer
DOHC:EPI; 1986-07-01~1988-07-01 |
09180-08057-000 |
— | ||
| replacement | |||||
|
19
|
19
09180-08227-000 SPACER(8.2X12.5X23.5)DOHC:EPI; 1986-07-01~1988-07-01 |
09180-08227-000 |
from US $1.04 |
||
|
20
|
20
01517-08353-000
Bolt
DOHC:EPI; 1986-07-01~1988-07-01 |
01517-08353-000 |
— | ||
| replacements | |||||
|
20
|
20
01550-0835B-000 BoltDOHC:EPI; 1986-07-01~1988-07-01 |
01550-0835B-000 |
from US $1.28 |
||
|
20
|
20
01550-0835A-000 BoltDOHC:EPI; 1986-07-01~1988-07-01 |
01550-0835A-000 |
from US $1.06 |
||
|
21
|
21
14300-53A01-000
マフラ
DOHC:EPI; 1986-07-01~1988-07-01 |
14300-53A01-000 |
— | ||
| replacement | |||||
|
21
|
21
14300-53AV0-000
マフラ
DOHC:EPI; 1986-07-01~1988-07-01 |
14300-53AV0-000 |
— | ||
|
22
|
22
14630-53A00-000
パイプ,テール
DOHC:EPI; 1986-07-01~1988-07-01 |
14630-53A00-000 |
— | ||
|
23
|
23
14182-78110-000
ガスケット,エキゾーストパイプ
DOHC:EPI; 1986-07-01~1988-07-01 |
14182-78110-000 |
— | ||
| replacements | |||||
|
23
|
23
14182-60B00-000
GASKET,EXH PIPE
DOHC:EPI; 1986-07-01~1988-07-01 |
14182-60B00-000 |
— | ||
|
23
|
23
14182-60B01-000 Gasket,exh PipeDOHC:EPI; 1986-07-01~1988-07-01 |
14182-60B01-000 |
from US $3.34 |
||
|
24
|
24
08316-16103-000 NutDOHC:EPI; 1986-07-01~1988-07-01 |
08316-16103-000 |
from US $1.30 |
||
| replacement | |||||
|
24
|
24
08316-1010B-000 NUTDOHC:EPI; 1986-07-01~1988-07-01 |
08316-1010B-000 |
from US $0.80 |
||
|
25
|
25
14281-79010-000
Mounting, muffler
DOHC:EPI; 1986-07-01~1988-07-01 |
14281-79010-000 |
— | ||
| replacement | |||||
|
25
|
25
14281-60G11-000 MOUNTING,MUFFLER(HS60)DOHC:EPI; 1986-07-01~1988-07-01 |
14281-60G11-000 |
from US $4.59 |
||
|
26
|
26
14281-78010-000
Mounting, muffler
DOHC:EPI; 1986-07-01~1988-07-01 |
14281-78010-000 |
— | ||
| replacement | |||||
|
26
|
26
14281-60G01-000 MOUNTING,MUFDOHC:EPI; 1986-07-01~1988-07-01 |
14281-60G01-000 |
from US $5.96 |
||
|
27
|
27
09180-08057-000
Spacer
DOHC:EPI; 1986-07-01~1988-07-01 |
09180-08057-000 |
— | ||
| replacement | |||||
|
27
|
27
09180-08227-000 SPACER(8.2X12.5X23.5)DOHC:EPI; 1986-07-01~1988-07-01 |
09180-08227-000 |
from US $1.04 |
||
|
28
|
28
01517-08353-000
Bolt
DOHC:EPI; 1986-07-01~1988-07-01 |
01517-08353-000 |
— | ||
| replacements | |||||
|
28
|
28
01550-0835B-000 BoltDOHC:EPI; 1986-07-01~1988-07-01 |
01550-0835B-000 |
from US $1.28 |
||
|
28
|
28
01550-0835A-000 BoltDOHC:EPI; 1986-07-01~1988-07-01 |
01550-0835A-000 |
from US $1.06 |
||
