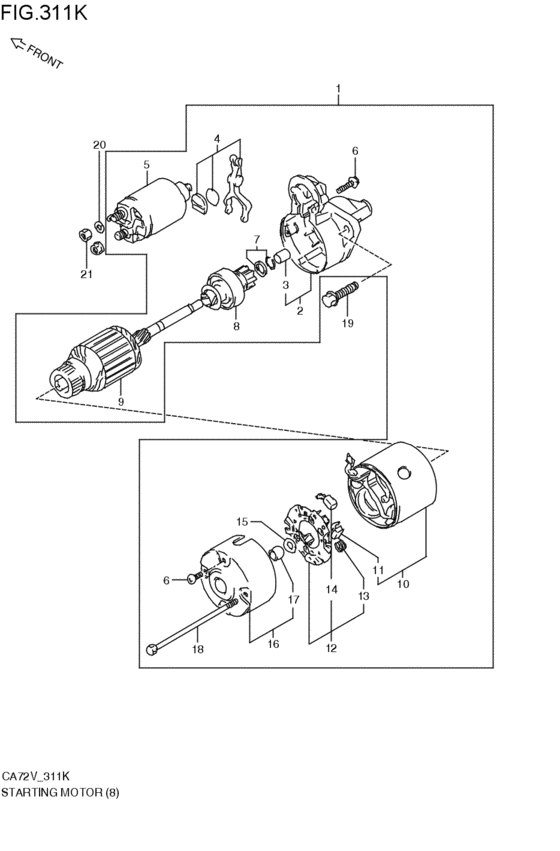

starting motor (MT:DOHC:EPI; 1986-07-01~1988-07-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 1986 - 1987
- Sales region
- Japan
- Engine
- DOHC
- supercharge
- EPI
- transmission
- MT
- Number of doors
- 3DR
- grade
- RS
- number of the gears
- 5MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-50A40-000
モータアッシ,スターティング
カンレイチシヨウ; MT:DOHC:EPI; 1986-07-01~1988-07-01 |
31100-50A40-000 |
— | ||
|
1
|
1
31100-50A70-000
モータアッシ,スターティング
フツウシヨウ; MT:DOHC:EPI; 1987-06-01~1988-07-01 |
31100-50A70-000 |
— | ||
|
1
|
1
31100-84030-000
モータアッシ,スターティング
フツウシヨウ; MT:DOHC:EPI; 1986-07-01~1987-06-01 |
31100-84030-000 |
— | ||
|
2
|
2
31151-78141-000
ハウジングアッシ
MT:DOHC:EPI; 1986-07-01~1988-07-01 |
31151-78141-000 |
— | ||
|
3
|
3
31152-79030-000 BEARING,FRONTMT:DOHC:EPI; 1986-07-01~1988-07-01 |
31152-79030-000 |
from US $5.11 |
||
|
4
|
4
31191-78141-000 LEVER ASSYMT:DOHC:EPI; 1986-07-01~1988-07-01 |
31191-78141-000 |
US $17.85 |
||
|
5
|
5
31220-79030-000
スイッチアッシ
フツウシヨウ; MT:DOHC:EPI; 1986-07-01~1988-07-01 |
31220-79030-000 |
— | ||
|
5
|
5
31220-80092-000
スイッチアッシ
カンレイチシヨウ; MT:DOHC:EPI; 1986-07-01~1988-07-01 |
31220-80092-000 |
— | ||
| replacement | |||||
|
5
|
5
31220-84030-000 SWITCH ASSYカンレイチシヨウ; MT:DOHC:EPI; 1986-07-01~1988-07-01 |
31220-84030-000 |
from US $165.11 |
||
|
6
|
6
31136-79030-000 SCREW ASSYMT:DOHC:EPI; 1986-07-01~1988-07-01 |
31136-79030-000 |
US $3.38 |
||
| replacement | |||||
|
6
|
6
31175-79030-000 Screw SetMT:DOHC:EPI; 1986-07-01~1988-07-01 |
31175-79030-000 |
US $8.16 |
||
|
7
|
7
31313-79030-000
RING SET STARTER MOTOR
MT:DOHC:EPI; 1986-07-01~1987-06-01 |
31313-79030-000 |
— | ||
| replacement | |||||
|
7
|
7
31313-80090-000 RING SETMT:DOHC:EPI; 1986-07-01~1987-06-01 |
31313-80090-000 |
from US $4.25 |
||
|
7
|
7
31313-80090-000 RING SETMT:DOHC:EPI; 1987-06-01~1988-07-01 |
31313-80090-000 |
from US $4.25 |
||
|
8
|
8
31320-50A30-000 CLUTCH ASSYフツウシヨウ; MT:DOHC:EPI; 1987-06-01~1988-07-01 |
31320-50A30-000 |
US $122.91 |
||
|
8
|
8
31320-78141-000
CLUTCH ASSY,OVER RUNNING
フツウシヨウ; MT:DOHC:EPI; 1986-07-01~1987-06-01 |
31320-78141-000 |
— | ||
|
9
|
9
31311-50A30-000
アマチュア
フツウシヨウ; MT:DOHC:EPI; 1987-06-01~1988-07-01 |
31311-50A30-000 |
— | ||
| replacement | |||||
|
9
|
9
31311-70D11-000
ARMATURE
フツウシヨウ; MT:DOHC:EPI; 1987-06-01~1988-07-01 |
31311-70D11-000 |
— | ||
|
9
|
9
31311-78141-000
アマチュア
フツウシヨウ; MT:DOHC:EPI; 1986-07-01~1987-06-01 |
31311-78141-000 |
— | ||
|
10
|
10
31110-50A30-000
ヨークアッシ
カンレイチシヨウ; MT:DOHC:EPI; 1986-07-01~1988-07-01 |
31110-50A30-000 |
— | ||
|
10
|
10
31110-50A60-000
ヨークアッシ
フツウシヨウ; MT:DOHC:EPI; 1987-06-01~1988-07-01 |
31110-50A60-000 |
— | ||
|
10
|
10
31110-78141-000
ヨークアッシ
フツウシヨウ; MT:DOHC:EPI; 1986-07-01~1987-06-01 |
31110-78141-000 |
— | ||
|
11
|
11
31131-80090-000 BRUSH(+)MT:DOHC:EPI; 1986-07-01~1988-07-01 |
31131-80090-000 |
from US $8.84 |
||
|
12
|
12
31173-79030-000
HOLDER BRUSH
フツウシヨウ; MT:DOHC:EPI; 1986-07-01~1988-07-01 |
31173-79030-000 |
— | ||
| replacement | |||||
|
12
|
12
31173-82130-000 HOLDER ASSY,BRUSHフツウシヨウ; MT:DOHC:EPI; 1986-07-01~1988-07-01 |
31173-82130-000 |
from US $43.20 |
||
|
12
|
12
31173-82130-000 HOLDER ASSY,BRUSHカンレイチシヨウ; MT:DOHC:EPI; 1986-07-01~1988-07-01 |
31173-82130-000 |
from US $43.20 |
||
|
13
|
13
31135-72030-000
SPRING BRUSH
フツウシヨウ; MT:DOHC:EPI; 1986-07-01~1988-07-01 |
31135-72030-000 |
— | ||
|
14
|
14
31132-80090-000 BRUSH(-)フツウシヨウ; MT:DOHC:EPI; 1986-07-01~1988-07-01 |
31132-80090-000 |
from US $8.60 |
||
|
15
|
15
31361-79030-000 WASHERMT:DOHC:EPI; 1986-07-01~1988-07-01 |
31361-79030-000 |
from US $5.20 |
||
|
16
|
16
31170-79030-000
ハウジングアッシ
MT:DOHC:EPI; 1986-07-01~1988-07-01 |
31170-79030-000 |
— | ||
|
17
|
17
31172-79030-000 BUSHMT:DOHC:EPI; 1986-07-01~1988-07-01 |
31172-79030-000 |
from US $3.38 |
||
|
18
|
18
31261-79030-000
ボルト
MT:DOHC:EPI; 1986-07-01~1988-07-01 |
31261-79030-000 |
— | ||
| replacement | |||||
|
18
|
18
31261-82130-000 BoltMT:DOHC:EPI; 1986-07-01~1988-07-01 |
31261-82130-000 |
from US $1.89 |
||
|
19
|
19
01517-08258-000
Bolt
MT:DOHC:EPI; 1986-07-01~1988-07-01 |
01517-08258-000 |
— | ||
| replacement | |||||
|
19
|
19
01550-08257-000 BoltMT:DOHC:EPI; 1986-07-01~1988-07-01 |
01550-08257-000 |
from US $0.95 |
||
|
20
|
20
08321-21086-000
Wsherlck8.2x15.2x1.6
MT:DOHC:EPI; 1986-07-01~1988-07-01 |
08321-21086-000 |
— | ||
| replacements | |||||
|
20
|
20
08321-0108B-000 WASHER,LOCKMT:DOHC:EPI; 1986-07-01~1988-07-01 |
08321-0108B-000 |
from US $0.76 |
||
|
20
|
20
08321-0108A-000 WASHER,LOCKMT:DOHC:EPI; 1986-07-01~1988-07-01 |
08321-0108A-000 |
from US $0.90 |
||
|
21
|
21
08310-12086-000
NUT
MT:DOHC:EPI; 1986-07-01~1988-07-01 |
08310-12086-000 |
— | ||
| replacements | |||||
|
21
|
21
08310-0008A-000 NUTNut, bead stopper MT:DOHC:EPI; 1986-07-01~1988-07-01 |
08310-0008A-000 |
from US $0.76 |
||
|
21
|
21
08310-0008B-000 NUTMT:DOHC:EPI; 1986-07-01~1988-07-01 |
08310-0008B-000 |
from US $0.96 |
||
