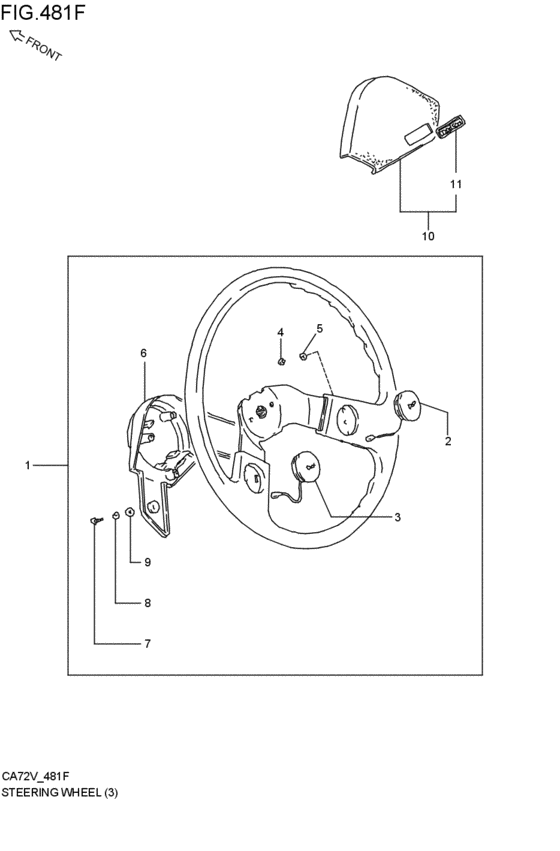

steering wheel (DOHC:EPI; 1986-07-01~1988-07-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 1986 - 1987
- Sales region
- Japan
- Engine
- DOHC
- supercharge
- EPI
- transmission
- MT
- Number of doors
- 3DR
- grade
- RS
- number of the gears
- 5MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48110-84100-281
ホイール,ステアリング
ブラック; DOHC:EPI; 1986-07-01~1988-07-01 |
48110-84100-281 |
— | ||
|
2
|
2
48120-84100-000
ボタン,ホーン,ライト
DOHC:EPI; 1986-07-01~1988-07-01 |
48120-84100-000 |
— | ||
|
3
|
3
48120-84110-000
ボタン,ホーン,レフト
DOHC:EPI; 1986-07-01~1988-07-01 |
48120-84110-000 |
— | ||
|
4
|
4
02112-04086-000
Screw
DOHC:EPI; 1986-07-01~1988-07-01 |
02112-04086-000 |
— | ||
| replacement | |||||
|
4
|
4
02112-0408A-000 SCREWDOHC:EPI; 1986-07-01~1988-07-01 |
02112-0408A-000 |
from US $0.96 |
||
|
5
|
5
08321-21046-000
Lock washer
DOHC:EPI; 1986-07-01~1988-07-01 |
08321-21046-000 |
— | ||
| replacement | |||||
|
5
|
5
08321-0104A-000 WASHER,LOCKDOHC:EPI; 1986-07-01~1988-07-01 |
08321-0104A-000 |
from US $0.96 |
||
|
6
|
6
48140-84100-000
カバー,ロア
DOHC:EPI; 1986-07-01~1988-07-01 |
48140-84100-000 |
— | ||
|
7
|
7
02112-04086-000
Screw
DOHC:EPI; 1986-07-01~1988-07-01 |
02112-04086-000 |
— | ||
| replacement | |||||
|
7
|
7
02112-0408A-000 SCREWDOHC:EPI; 1986-07-01~1988-07-01 |
02112-0408A-000 |
from US $0.96 |
||
|
8
|
8
08321-21046-000
Lock washer
DOHC:EPI; 1986-07-01~1988-07-01 |
08321-21046-000 |
— | ||
| replacement | |||||
|
8
|
8
08321-0104A-000 WASHER,LOCKDOHC:EPI; 1986-07-01~1988-07-01 |
08321-0104A-000 |
from US $0.96 |
||
|
9
|
9
08322-21046-000
Washer
DOHC:EPI; 1986-07-01~1988-07-01 |
08322-21046-000 |
— | ||
| replacements | |||||
|
9
|
9
08322-0104B-000 WASHERWasher, headlamp DOHC:EPI; 1986-07-01~1988-07-01 |
08322-0104B-000 |
from US $0.37 |
||
|
9
|
9
08322-0104A-000 WASHERWasher, cam rocker arm DOHC:EPI; 1986-07-01~1988-07-01 |
08322-0104A-000 |
from US $3.03 |
||
|
10
|
10
48130-84140-281
パッド,ステアリングホイール
ブラック; DOHC:EPI; 1986-07-01~1988-07-01 |
48130-84140-281 |
— | ||
|
11
|
11
48131-84140-000
エンブレム
DOHC:EPI; 1986-07-01~1988-07-01 |
48131-84140-000 |
— | ||
