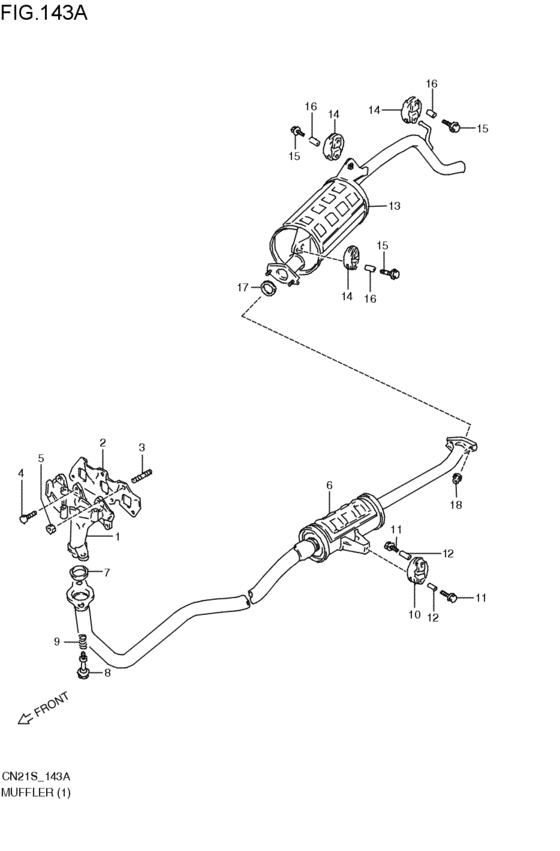

muffler (V:2WD:2V; 1990-01-01~1991-08-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 1990 - 1991
- Sales region
- Japan
- Engine
- CARB
- drive
- 2WD
- transmission
- 4MT
- Number of doors
- 3DR
- grade
- CL
- type
- TYPE1
- body
- V
- 寒冷地
- COLD-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14111-84102-000
マニホールド,エキゾースト
V:2WD:2V; 1990-01-01~1991-08-01 |
14111-84102-000 |
— | ||
| replacement | |||||
|
1
|
1
14111-84X50-000
MANIFOLD,EXH
V:2WD:2V; 1990-01-01~1991-08-01 |
14111-84X50-000 |
— | ||
|
2
|
2
14140-78100-000
ガスケット,エキゾーストマニホールド
V:2WD:2V; 1990-01-01~1991-08-01 |
14140-78100-000 |
— | ||
| replacement | |||||
|
2
|
2
14141-67F02-000 GASKET,EXH MANFV:2WD:2V; 1990-01-01~1991-08-01 |
14141-67F02-000 |
from US $15.91 |
||
|
3
|
3
01411-08253-000
New Genuine Part
V:2WD:2V; 1990-01-01~1991-08-01 |
01411-08253-000 |
— | ||
| replacement | |||||
|
3
|
3
01411-0825A-000 BOLT,STUDV:2WD:2V; 1990-01-01~1991-08-01 |
01411-0825A-000 |
US $1.28 |
||
|
4
|
4
01517-08253-000
ボルト
V:2WD:2V; 1990-01-01~1991-08-01 |
01517-08253-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0825A-000 BoltV:2WD:2V; 1990-01-01~1991-08-01 |
01550-0825A-000 |
from US $0.47 |
||
|
4
|
4
01550-0825B-000 BoltV:2WD:2V; 1990-01-01~1991-08-01 |
01550-0825B-000 |
from US $1.06 |
||
|
5
|
5
08316-16083-000 NutNut V:2WD:2V; 1990-01-01~1991-08-01 |
08316-16083-000 |
from US $1.94 |
||
| replacement | |||||
|
5
|
5
08316-1008B-000 NUTV:2WD:2V; 1990-01-01~1991-08-01 |
08316-1008B-000 |
from US $0.76 |
||
|
6
|
6
14190-60D01-000
パイプ,エキゾースト
V:2WD:2V; 1990-01-01~1991-08-01 |
14190-60D01-000 |
— | ||
| replacement | |||||
|
6
|
6
14190-72B01-000
PIPE,EXHAUST
V:2WD:2V; 1990-01-01~1991-08-01 |
14190-72B01-000 |
— | ||
|
7
|
7
14183-78501-000
リング,エキゾーストパイプ
V:2WD:2V; 1990-01-01~1991-08-01 |
14183-78501-000 |
— | ||
| replacement | |||||
|
7
|
7
14183-75FC0-000 RING,SEAL EXH PIPEV:2WD:2V; 1990-01-01~1991-08-01 |
14183-75FC0-000 |
from US $14.09 |
||
|
8
|
8
09119-10056-000
ボルト,10X53.5
V:2WD:2V; 1990-01-01~1991-08-01 |
09119-10056-000 |
— | ||
| replacement | |||||
|
8
|
8
14493-76G01-000 BOLT,EXH PIPEV:2WD:2V; 1990-01-01~1991-08-01 |
14493-76G01-000 |
from US $3.04 |
||
|
9
|
9
14492-82001-000 SPRING,EXH PIPECHKK; V:2WD:2V; 1990-01-01~1991-08-01 |
14492-82001-000 |
from US $1.28 |
||
|
10
|
10
14281-78010-000
Mounting, muffler
V:2WD:2V; 1990-01-01~1991-08-01 |
14281-78010-000 |
— | ||
| replacement | |||||
|
10
|
10
14281-60G01-000 MOUNTING,MUFV:2WD:2V; 1990-01-01~1991-08-01 |
14281-60G01-000 |
from US $5.96 |
||
|
11
|
11
01517-08353-000
Bolt
V:2WD:2V; 1990-01-01~1991-08-01 |
01517-08353-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0835B-000 BoltV:2WD:2V; 1990-01-01~1991-08-01 |
01550-0835B-000 |
from US $1.28 |
||
|
11
|
11
01550-0835A-000 BoltV:2WD:2V; 1990-01-01~1991-08-01 |
01550-0835A-000 |
from US $1.06 |
||
|
12
|
12
09180-08057-000
Spacer
V:2WD:2V; 1990-01-01~1991-08-01 |
09180-08057-000 |
— | ||
| replacement | |||||
|
12
|
12
09180-08227-000 SPACER(8.2X12.5X23.5)V:2WD:2V; 1990-01-01~1991-08-01 |
09180-08227-000 |
from US $1.04 |
||
|
13
|
13
14300-60D00-000
マフラ
V:2WD:2V; 1990-01-01~1991-08-01 |
14300-60D00-000 |
— | ||
| replacement | |||||
|
13
|
13
14300-71GP0-000 MUFFLERV:2WD:2V; 1990-01-01~1991-08-01 |
14300-71GP0-000 |
US $241.04 |
||
|
14
|
14
14281-78010-000
Mounting, muffler
V:2WD:2V; 1990-01-01~1991-08-01 |
14281-78010-000 |
— | ||
| replacement | |||||
|
14
|
14
14281-60G01-000 MOUNTING,MUFV:2WD:2V; 1990-01-01~1991-08-01 |
14281-60G01-000 |
from US $5.96 |
||
|
15
|
15
01517-08353-000
Bolt
V:2WD:2V; 1990-01-01~1991-08-01 |
01517-08353-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0835B-000 BoltV:2WD:2V; 1990-01-01~1991-08-01 |
01550-0835B-000 |
from US $1.28 |
||
|
15
|
15
01550-0835A-000 BoltV:2WD:2V; 1990-01-01~1991-08-01 |
01550-0835A-000 |
from US $1.06 |
||
|
16
|
16
09180-08057-000
Spacer
V:2WD:2V; 1990-01-01~1991-08-01 |
09180-08057-000 |
— | ||
| replacement | |||||
|
16
|
16
09180-08227-000 SPACER(8.2X12.5X23.5)V:2WD:2V; 1990-01-01~1991-08-01 |
09180-08227-000 |
from US $1.04 |
||
|
17
|
17
14182-60B00-000
GASKET,EXH PIPE
V:2WD:2V; 1990-01-01~1991-08-01 |
14182-60B00-000 |
— | ||
| replacement | |||||
|
17
|
17
14182-60B01-000 Gasket,exh PipeV:2WD:2V; 1990-01-01~1991-08-01 |
14182-60B01-000 |
from US $3.34 |
||
|
18
|
18
08316-16103-000 NutV:2WD:2V; 1990-01-01~1991-08-01 |
08316-16103-000 |
from US $1.30 |
||
| replacement | |||||
|
18
|
18
08316-1010B-000 NUTV:2WD:2V; 1990-01-01~1991-08-01 |
08316-1010B-000 |
from US $0.80 |
||
