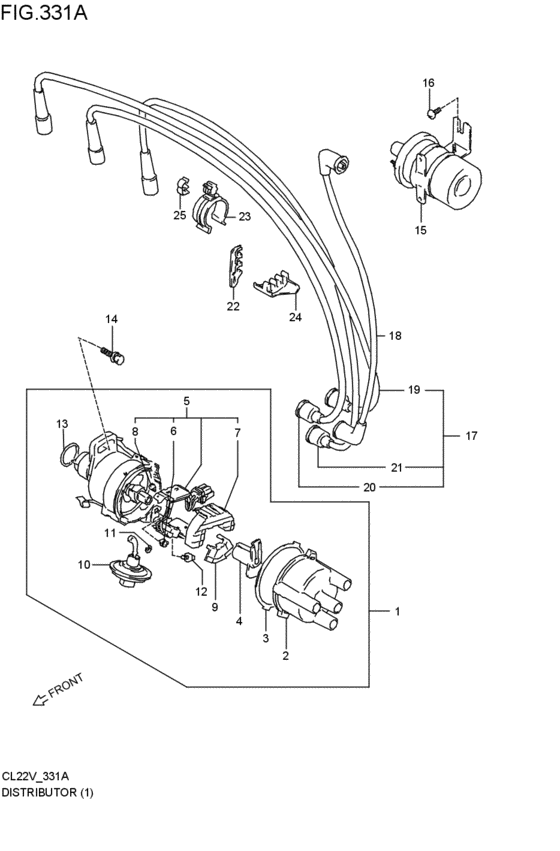

distributor (2V:CARB:(3AT,4MT,5MT); 1991-08-01~1993-05-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 1991 - 2011
- Sales region
- Japan
- Engine
- 2V
- supercharge
- CARB
- drive
- 2WD
- transmission
- 4MT
- grade
- HC
- body
- V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33100-60D12-000
Distributor assy
DENSO; 2V:CARB:(3AT,4MT,5MT); 1991-08-01~1993-05-01 |
33100-60D12-000 |
— | ||
|
2
|
2
33321-82011-000
キャップ
DENSO; 2V:CARB:(3AT,4MT,5MT); 1991-08-01~1993-05-01 |
33321-82011-000 |
— | ||
| replacement | |||||
|
2
|
2
33321-79611-000 CAPDENSO; 2V:CARB:(3AT,4MT,5MT); 1991-08-01~1993-05-01 |
33321-79611-000 |
from US $13.25 |
||
|
3
|
3
33324-79610-000 PACKING,CAPDENSO; 2V:CARB:(3AT,4MT,5MT); 1991-08-01~1993-05-01 |
33324-79610-000 |
from US $0.99 |
||
|
4
|
4
33310-82010-000 ROTOR ASSYDENSO; 2V:CARB:(3AT,4MT,5MT); 1991-08-01~1993-05-01 |
33310-82010-000 |
from US $8.21 |
||
|
5
|
5
33370-60D10-000
Igniter assy
DENSO; 2V:CARB:(3AT,4MT,5MT); 1991-08-01~1993-05-01 |
33370-60D10-000 |
— | ||
|
6
|
6
33151-80020-000 SCREW,IGNITERDENSO; 2V:CARB:(3AT,4MT,5MT); 1991-08-01~1993-05-01 |
33151-80020-000 |
from US $0.23 |
||
|
7
|
7
33297-60D10-000 COVER,IGNITER DUSTDENSO; 2V:CARB:(3AT,4MT,5MT); 1991-08-01~1993-05-01 |
33297-60D10-000 |
US $8.46 |
||
|
8
|
8
02112-34086-000
Screw
2V:CARB:(3AT,4MT,5MT); 1991-08-01~1993-05-01 |
02112-34086-000 |
— | ||
| replacement | |||||
|
8
|
8
02112-3408A-000 SCREW2V:CARB:(3AT,4MT,5MT); 1991-08-01~1993-05-01 |
02112-3408A-000 |
from US $0.80 |
||
|
9
|
9
33279-82010-000
カバー,シグナルジェネレータダスト
DENSO; 2V:CARB:(3AT,4MT,5MT); 1991-08-01~1993-05-01 |
33279-82010-000 |
— | ||
|
10
|
10
33230-60D11-000
Controller assy,vacuum
DENSO; 2V:CARB:(3AT,4MT,5MT); 1991-08-01~1993-05-01 |
33230-60D11-000 |
— | ||
|
11
|
11
33239-76410-000 E-RINGDENSO; 2V:CARB:(3AT,4MT,5MT); 1991-08-01~1993-05-01 |
33239-76410-000 |
from US $0.97 |
||
|
12
|
12
33239-82110-000 SCREW,VACUUM CONTROLLERDENSO; 2V:CARB:(3AT,4MT,5MT); 1991-08-01~1993-05-01 |
33239-82110-000 |
US $1.32 |
||
|
13
|
13
33278-82010-000
Oリング
DENSO; 2V:CARB:(3AT,4MT,5MT); 1991-08-01~1993-05-01 |
33278-82010-000 |
— | ||
| replacement | |||||
|
13
|
13
33278-54E10-000 O-RINGDENSO; 2V:CARB:(3AT,4MT,5MT); 1991-08-01~1993-05-01 |
33278-54E10-000 |
from US $8.64 |
||
|
14
|
14
09118-08007-000
ボルト,8X30
2V:CARB:(3AT,4MT,5MT); 1991-08-01~1993-05-01 |
09118-08007-000 |
— | ||
| replacement | |||||
|
14
|
14
09138-08003-000 SCREW(8X30)2V:CARB:(3AT,4MT,5MT); 1991-08-01~1993-05-01 |
09138-08003-000 |
from US $1.49 |
||
|
15
|
15
33410-60D10-000
コイルアッシ,イグニツシヨン
DENSO; 2V:CARB:(3AT,4MT,5MT); 1991-08-01~1993-05-01 |
33410-60D10-000 |
— | ||
| replacement | |||||
|
15
|
15
33410-71C10-000 COIL ASSY,IGNITIONDENSO; 2V:CARB:(3AT,4MT,5MT); 1991-08-01~1993-05-01 |
33410-71C10-000 |
from US $95.13 |
||
|
16
|
16
02142-06103-000
Screw
2V:CARB:(3AT,4MT,5MT); 1991-08-01~1993-05-01 |
02142-06103-000 |
— | ||
| replacements | |||||
|
16
|
16
02142-0610B-000 SCREWStopper, cl rlse cam shaft 2V:CARB:(3AT,4MT,5MT); 1991-08-01~1993-05-01 |
02142-0610B-000 |
from US $0.76 |
||
|
16
|
16
02142-0610A-000 SCREW2V:CARB:(3AT,4MT,5MT); 1991-08-01~1993-05-01 |
02142-0610A-000 |
from US $0.96 |
||
|
17
|
17
33705-71B10-000
CORD SET,HIGH TENSION
2V:CARB:(3AT,4MT,5MT); 1991-08-01~1993-05-01 |
33705-71B10-000 |
— | ||
|
18
|
18
33710-60B10-000
コード,ハイテンション,NO.1
2V:CARB:(3AT,4MT,5MT); 1991-08-01~1993-05-01 |
33710-60B10-000 |
— | ||
| replacement | |||||
|
18
|
18
33710-60E10-000 CORD,HIGH TENSION2V:CARB:(3AT,4MT,5MT); 1991-08-01~1993-05-01 |
33710-60E10-000 |
US $12.98 |
||
|
19
|
19
33730-71B10-000
コード,ハイテンション,NO.2
2V:CARB:(3AT,4MT,5MT); 1991-08-01~1993-05-01 |
33730-71B10-000 |
— | ||
| replacement | |||||
|
19
|
19
33730-60C30-000
CORD,HT NO.2
2V:CARB:(3AT,4MT,5MT); 1991-08-01~1993-05-01 |
33730-60C30-000 |
— | ||
|
20
|
20
33740-71B10-000
コード,ハイテンション,NO.3
2V:CARB:(3AT,4MT,5MT); 1991-08-01~1993-05-01 |
33740-71B10-000 |
— | ||
|
21
|
21
33750-71B10-000
コード,ハイテンション,NO.4
2V:CARB:(3AT,4MT,5MT); 1991-08-01~1993-05-01 |
33750-71B10-000 |
— | ||
|
22
|
22
33881-82011-000 CLAMP,HIGH TENSION CORD2V:CARB:(3AT,4MT,5MT); 1991-08-01~1993-05-01 |
33881-82011-000 |
US $2.88 |
||
|
23
|
23
33881-86150-000 CLAMP,HT CORD2V:CARB:(3AT,4MT,5MT); 1991-08-01~1993-05-01 |
33881-86150-000 |
US $3.90 |
||
|
24
|
24
33882-81011-000 PROTECTOR,HIGH TENSION CORD2V:CARB:(3AT,4MT,5MT); 1991-08-01~1993-05-01 |
33882-81011-000 |
US $11.20 |
||
|
25
|
25
09408-00034-000
クリップ
2V:CARB:(3AT,4MT,5MT); 1991-08-01~1993-05-01 |
09408-00034-000 |
— | ||
| replacement | |||||
|
25
|
25
09408-00035-000 CLIPClamp 2V:CARB:(3AT,4MT,5MT); 1991-08-01~1993-05-01 |
09408-00035-000 |
from US $1.10 |
||
