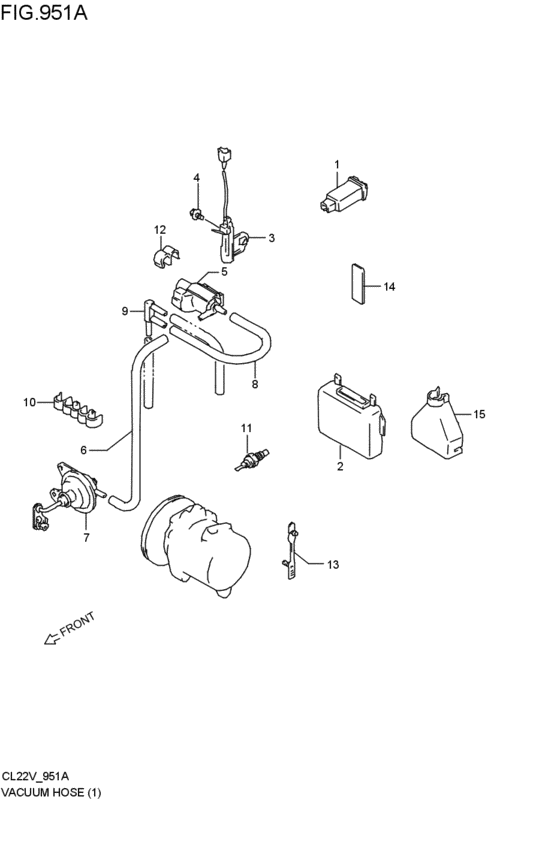

vacuum hose (エアコンツキ; HU,HC,DG; 1991-08-01~1993-05-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 1991 - 2011
- Sales region
- Japan
- Engine
- 2V
- supercharge
- CARB
- drive
- 2WD
- transmission
- 4MT
- grade
- HC
- body
- V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
95521-70B02-000 SWITCH,A/CHU,HC,DG; 1991-08-01~1993-05-01 |
95521-70B02-000 |
US $68.82 |
||
|
2
|
2
95510-60D02-000
コントローラ,エアコン
HU,HC,DG; 1991-08-01~1993-05-01 |
95510-60D02-000 |
— | ||
| replacement | |||||
|
2
|
2
95510-60D03-000
CONTROLLER,A/C
HU,HC,DG; 1991-08-01~1993-05-01 |
95510-60D03-000 |
— | ||
|
3
|
3
95522-70B00-000 SWITCH,ACCEL OFF(HU,HC,DG):(4MT,5MT); 1991-08-01~1993-05-01 |
95522-70B00-000 |
US $40.48 |
||
|
4
|
4
01517-06103-000
BOLT 6X10
HU,HC,DG; 1991-08-01~1993-05-01 |
01517-06103-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0610A-000 BoltHU,HC,DG; 1991-08-01~1993-05-01 |
01550-0610A-000 |
from US $0.96 |
||
|
4
|
4
01550-0610B-000 BoltBolt HU,HC,DG; 1991-08-01~1993-05-01 |
01550-0610B-000 |
from US $0.96 |
||
|
5
|
5
95551-79640-000
VSV IDLE UP
HU,HC,DG; 1991-08-01~1993-05-01 |
95551-79640-000 |
— | ||
| replacement | |||||
|
5
|
5
95160-70B00-000 VSV,IDLE UPHU,HC,DG; 1991-08-01~1993-05-01 |
95160-70B00-000 |
from US $59.98 |
||
|
6
|
6
09358-35754-300
ホース,3.5X7.5X300
L:300>220; HU,HC,DG; 1991-08-01~1993-05-01 |
09358-35754-300 |
— | ||
| replacements | |||||
|
6
|
6
09355-35754-601
HOSE(3.5X7.5X601)
L:300>220; HU,HC,DG; 1991-08-01~1993-05-01 |
09355-35754-601 |
— | ||
|
6
|
6
09355-35006-601 Hose(3.5X7.5X601)L:300>220; HU,HC,DG; 1991-08-01~1993-05-01 |
09355-35006-601 |
from US $5.78 |
||
|
7
|
7
95150-60D00-000
Actuator assy,idle up
2V エンジン; (HU,HC,DG):2V; 1991-08-01~1993-05-01 |
95150-60D00-000 |
— | ||
|
8
|
8
09358-35754-300
ホース,3.5X7.5X300
L:300>95; HU,HC,DG; 1991-08-01~1993-05-01 |
09358-35754-300 |
— | ||
| replacements | |||||
|
8
|
8
09355-35754-601
HOSE(3.5X7.5X601)
L:300>95; HU,HC,DG; 1991-08-01~1993-05-01 |
09355-35754-601 |
— | ||
|
8
|
8
09355-35006-601 Hose(3.5X7.5X601)L:300>95; HU,HC,DG; 1991-08-01~1993-05-01 |
09355-35006-601 |
from US $5.78 |
||
|
9
|
9
09367-04009-000 JOINTJoint, 3 way HU,HC,DG; 1991-08-01~1993-05-01 |
09367-04009-000 |
from US $1.67 |
||
|
10
|
10
09408-00116-000 CLIPHU,HC,DG; 1991-08-01~1993-05-01 |
09408-00116-000 |
US $44.90 |
||
|
11
|
11
34850-82001-000
Gauge assy, water temperature
DENSO; HU,HC,DG; 1991-08-01~1993-05-01 |
34850-82001-000 |
— | ||
| replacement | |||||
|
11
|
11
34850-50A00-000 GAUGE ASSY,WATER TEMPGauge assy, water temperature DENSO; HU,HC,DG; 1991-08-01~1993-05-01 |
34850-50A00-000 |
from US $34.79 |
||
|
12
|
12
09408-00033-000 CLAMPClamp HU,HC,DG; 1991-08-01~1993-05-01 |
09408-00033-000 |
from US $1.60 |
||
|
13
|
13
09407-05403-000 CLAMP,L:88HU,HC,DG; 1991-08-01~1993-05-01 |
09407-05403-000 |
from US $0.91 |
||
|
14
|
14
36930-82000-000
カバー
HU,HC,DG; 1991-08-01~1993-05-01 |
36930-82000-000 |
— | ||
| replacement | |||||
|
14
|
14
36930-82010-000 COVER,HARNESSCover, roof wire HU,HC,DG; 1991-08-01~1993-05-01 |
36930-82010-000 |
from US $1.51 |
||
|
15
|
15
95539-60D00-000
カバー,エバポハーネス
HU,HC,DG; 1991-08-01~1993-05-01 |
95539-60D00-000 |
— | ||
