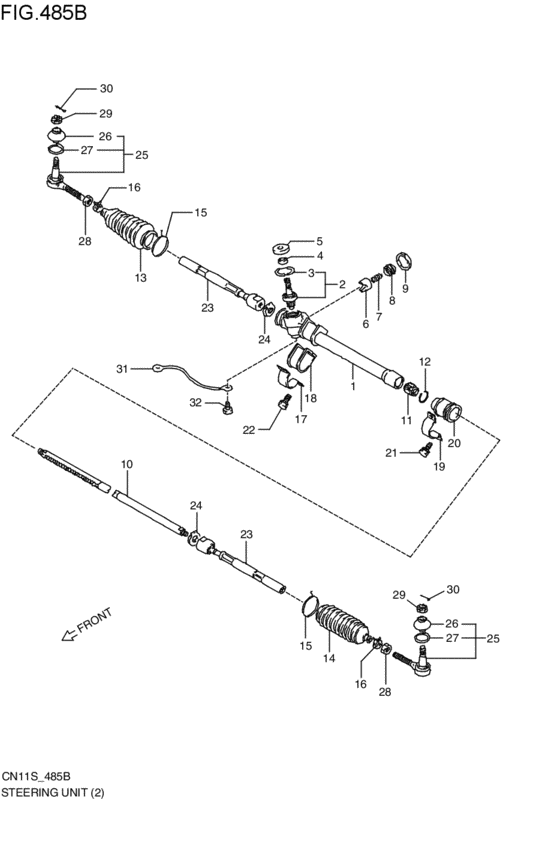

steering unit (SG,ST; 1989-04-01~1990-01-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 1989 - 1990
- Sales region
- Japan
- Engine
- 4V
- drive
- 2WD
- transmission
- AT
- Number of doors
- 3DR
- grade
- ST
- number of the gears
- 3AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48510-70B40-000
ケース,ステアリングギヤ
SG,ST; 1989-04-01~1990-01-01 |
48510-70B40-000 |
— | ||
|
2
|
2
48550-70B40-000
ピニオン,ステアリング
SG,ST; 1989-04-01~1990-01-01 |
48550-70B40-000 |
— | ||
|
3
|
3
48553-86200-000
リング,ステアリングピニオン
SG,ST; 1989-04-01~1990-01-01 |
48553-86200-000 |
— | ||
|
4
|
4
48565-86200-000
オイルシール
SG,ST; 1989-04-01~1990-01-01 |
48565-86200-000 |
— | ||
|
5
|
5
48451-82000-000 PACKING,STEERING GEAR CASESG,ST; 1989-04-01~1990-01-01 |
48451-82000-000 |
from US $2 |
||
|
6
|
6
48530-86200-000
プランジャアッシ,ステアリングラック
SG,ST; 1989-04-01~1990-01-01 |
48530-86200-000 |
— | ||
|
7
|
7
48538-86200-000
スプリング,ラックプランジャ
SG,ST; 1989-04-01~1990-01-01 |
48538-86200-000 |
— | ||
|
8
|
8
48535-86200-000
スクリュ,ラックダンパ
SG,ST; 1989-04-01~1990-01-01 |
48535-86200-000 |
— | ||
|
9
|
9
48537-86200-000
ナット,ラックダンパロック
SG,ST; 1989-04-01~1990-01-01 |
48537-86200-000 |
— | ||
| replacement | |||||
|
9
|
9
48536-85060-000 NUT,RACK DAMPER SCREWSG,ST; 1989-04-01~1990-01-01 |
48536-85060-000 |
from US $3.78 |
||
|
10
|
10
48531-70B40-000
ラック,ステアリング,ライト
SG,ST; 1989-04-01~1990-01-01 |
48531-70B40-000 |
— | ||
|
11
|
11
48541-53B00-000 BUSHING STEERING RACKSG,ST; 1989-04-01~1990-01-01 |
48541-53B00-000 |
US $21.58 |
||
| replacement | |||||
|
11
|
11
48541-82H10-000 BUSHING,STEERING RACKSG,ST; 1989-04-01~1990-01-01 |
48541-82H10-000 |
from US $21.58 |
||
|
12
|
12
09381-33002-000 RING, SNAPSG,ST; 1989-04-01~1990-01-01 |
09381-33002-000 |
from US $0.92 |
||
|
13
|
13
48571-82000-000 BOOT,STEERING PINION SIDESG,ST; 1989-04-01~1990-01-01 |
48571-82000-000 |
from US $21.49 |
||
|
14
|
14
48572-82000-000 BOOT,STEERING RACK SIDESG,ST; 1989-04-01~1990-01-01 |
48572-82000-000 |
US $14.14 |
||
| replacement | |||||
|
14
|
14
48572-60B10-000 BOOT,STEERING RACK SIDESG,ST; 1989-04-01~1990-01-01 |
48572-60B10-000 |
from US $28.80 |
||
|
15
|
15
48566-86200-000
ワイヤ,ステアリングブーツ
SG,ST; 1989-04-01~1990-01-01 |
48566-86200-000 |
— | ||
|
16
|
16
09401-15407-000 CLIPBolt, 2nd air hose SG,ST; 1989-04-01~1990-01-01 |
09401-15407-000 |
from US $0.70 |
||
|
17
|
17
48521-82000-000 BRACKET,STEERING PINION SIDESG,ST; 1989-04-01~1990-01-01 |
48521-82000-000 |
from US $2.21 |
||
|
18
|
18
48525-82000-000 MOUNT STRG PINION SIDESG,ST; 1989-04-01~1990-01-01 |
48525-82000-000 |
US $2.68 |
||
| replacement | |||||
|
18
|
18
48525-60F00-000 MOUNT,STRG PINION SIDESG,ST; 1989-04-01~1990-01-01 |
48525-60F00-000 |
from US $2.68 |
||
|
19
|
19
48522-82000-000 BRACKET,STEERING RACK SIDESG,ST; 1989-04-01~1990-01-01 |
48522-82000-000 |
from US $1.94 |
||
|
20
|
20
48526-82000-000 MOUNT,STRG RACK SIDESG,ST; 1989-04-01~1990-01-01 |
48526-82000-000 |
from US $4.10 |
||
|
21
|
21
01147-08253-000
BOLT
SG,ST; 1989-04-01~1990-01-01 |
01147-08253-000 |
— | ||
| replacements | |||||
|
21
|
21
01570-0825A-000 BoltSG,ST; 1989-04-01~1990-01-01 |
01570-0825A-000 |
from US $1.06 |
||
|
21
|
21
01570-0825B-000 BoltSG,ST; 1989-04-01~1990-01-01 |
01570-0825B-000 |
from US $1.28 |
||
|
22
|
22
09118-08124-000
BOLT(8X25)
SG,ST; 1989-04-01~1990-01-01 |
09118-08124-000 |
— | ||
|
23
|
23
48830-70B00-000 TIE-ROD,STEERINGSG,ST; 1989-04-01~1990-01-01 |
48830-70B00-000 |
US $193.60 |
||
|
24
|
24
48841-82000-000 WASHER STRG TIE RODSG,ST; 1989-04-01~1990-01-01 |
48841-82000-000 |
US $2.75 |
||
| replacement | |||||
|
24
|
24
48841-82001-000 WASHER,STEERING TIE ROD LOCKSG,ST; 1989-04-01~1990-01-01 |
48841-82001-000 |
from US $2.56 |
||
|
25
|
25
48810-84000-000
エンド,ステアリングタイロッド
SG,ST; 1989-04-01~1990-01-01 |
48810-84000-000 |
— | ||
| replacement | |||||
|
25
|
25
48810-84001-000 END,STEERING TIE-RODSG,ST; 1989-04-01~1990-01-01 |
48810-84001-000 |
US $128 |
||
|
26
|
26
48819-82000-000
BOOT SET,TIE ROD END
SG,ST; 1989-04-01~1990-01-01 |
48819-82000-000 |
— | ||
| replacements | |||||
|
26
|
26
48819-82001-000
Boot Set,tie Rod End
SG,ST; 1989-04-01~1990-01-01 |
48819-82001-000 |
— | ||
|
26
|
26
48800-82810-000 Boot Set,tie Rod EndSG,ST; 1989-04-01~1990-01-01 |
48800-82810-000 |
US $23.20 |
||
|
27
|
27
09401-23401-000
Clip
SG,ST; 1989-04-01~1990-01-01 |
09401-23401-000 |
— | ||
| replacement | |||||
|
27
|
27
09401-23402-000 CLIPSG,ST; 1989-04-01~1990-01-01 |
09401-23402-000 |
from US $1.06 |
||
|
28
|
28
09140-12032-000
ナット
SG,ST; 1989-04-01~1990-01-01 |
09140-12032-000 |
— | ||
| replacement | |||||
|
28
|
28
09140-12030-000 NUTNut, tie rod (rh thread) SG,ST; 1989-04-01~1990-01-01 |
09140-12030-000 |
from US $1.42 |
||
|
29
|
29
08314-41123-000 NutSG,ST; 1989-04-01~1990-01-01 |
08314-41123-000 |
US $1.42 |
||
| replacement | |||||
|
29
|
29
08314-4012A-000 NUTSG,ST; 1989-04-01~1990-01-01 |
08314-4012A-000 |
from US $0.99 |
||
|
30
|
30
04111-30206-000
コッタピン
SG,ST; 1989-04-01~1990-01-01 |
04111-30206-000 |
— | ||
| replacement | |||||
|
30
|
30
04111-3020A-000 PINSG,ST; 1989-04-01~1990-01-01 |
04111-3020A-000 |
from US $0.59 |
||
|
31
|
31
48528-78200-000 LEAD WIRESG,ST; 1989-04-01~1990-01-01 |
48528-78200-000 |
from US $3.04 |
||
|
32
|
32
01107-06103-000 Bolt 6x10SG,ST; 1989-04-01~1990-01-01 |
01107-06103-000 |
US $1.03 |
||
| replacement | |||||
|
32
|
32
01500-0610B-000 BoltBolt SG,ST; 1989-04-01~1990-01-01 |
01500-0610B-000 |
from US $0.80 |
||
