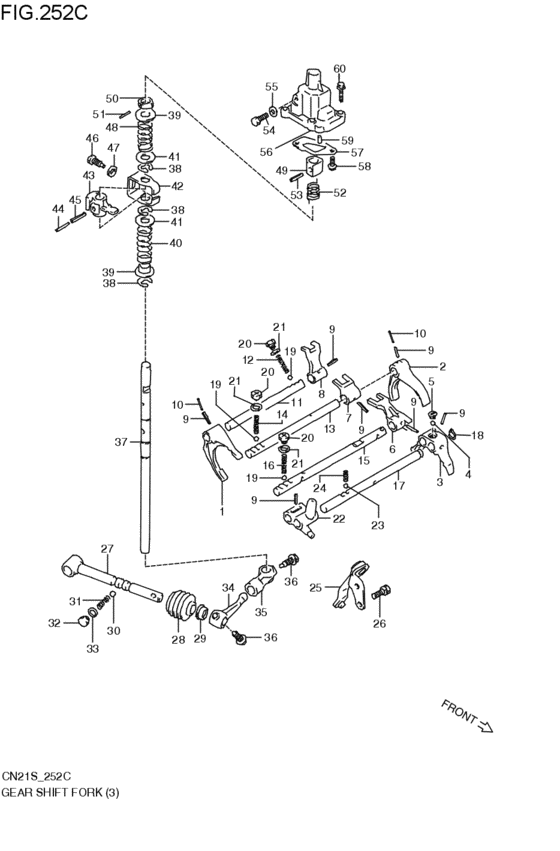

mt - gearlever fork (2WD:5MT:TURBO; 1990-01-01~1991-08-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 1991
- Sales region
- Japan
- Engine
- TURBO
- drive
- 2WD
- transmission
- 5MT
- Number of doors
- 3DR
- grade
- RSX
- type
- TYPE2
- body
- S
- 寒冷地
- COLD-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
25211-73B01-000
フォーク,ロースピードギヤシフト
2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
25211-73B01-000 |
— | ||
| replacement | |||||
|
1
|
1
25211-63D20-000 FORK,LOW SPEED GEAR SHIFT2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
25211-63D20-000 |
US $61.46 |
||
|
2
|
2
25221-70B00-000 FORK,HIGH SPEED GEAR SHIFT2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
25221-70B00-000 |
US $55.20 |
||
|
3
|
3
25231-70B50-000
フォーク,フィフスギヤシフト
2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
25231-70B50-000 |
— | ||
| replacement | |||||
|
3
|
3
25231-70B52-000 FORK,5TH GEAR SHIFT2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
25231-70B52-000 |
US $58.51 |
||
|
4
|
4
06111-10003-000 BALL2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
06111-10003-000 |
from US $0.80 |
||
|
5
|
5
09248-10006-000 PLUG2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
09248-10006-000 |
from US $0.90 |
||
|
6
|
6
25261-70B52-000 YOKE,5TH&REV GEAR SHIFT2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
25261-70B52-000 |
US $52.99 |
||
|
7
|
7
25281-70B01-000
ヨーク,ハイスピードギヤシフト
2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
25281-70B01-000 |
— | ||
| replacement | |||||
|
7
|
7
25281-60D00-000 YOKE,HIGH SPEED GEAR SHIFT2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
25281-60D00-000 |
US $50.05 |
||
|
8
|
8
25271-70B02-000 YOKE,LOW SPEED GEAR SHIFT2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
25271-70B02-000 |
US $50.05 |
||
|
9
|
9
09205-04009-000 PIN,SPRING(4.5X20)2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
09205-04009-000 |
from US $0.29 |
||
|
10
|
10
09205-02016-000 PIN,SPRING(2.7X20)2WD:5MT:TURBO; 1990-12-01~1991-08-01 |
09205-02016-000 |
US $10.30 |
||
|
11
|
11
25411-63D01-000 SHAFT,LOW SPEED GEAR SHF2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
25411-63D01-000 |
US $19.32 |
||
|
12
|
12
25415-70B00-000 SPRING,LOCATINGCHKK; 2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
25415-70B00-000 |
US $2.83 |
||
|
13
|
13
25421-63D01-000 SHAFT,HIGH SPEED GEAR SHIFT2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
25421-63D01-000 |
US $21.90 |
||
|
14
|
14
25415-70B00-000 SPRING,LOCATINGCHKK; 2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
25415-70B00-000 |
US $2.83 |
||
|
15
|
15
25451-73B52-000 SHAFT,5TH&REV GEAR SHIFT2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
25451-73B52-000 |
US $27.42 |
||
|
16
|
16
25435-70B00-000 SPRING,LOCATINGCHKK; 2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
25435-70B00-000 |
US $2.87 |
||
|
17
|
17
25431-73B51-000
シャフト,フィフス/リバースギヤシフトガイド
2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
25431-73B51-000 |
— | ||
| replacement | |||||
|
17
|
17
25431-73B52-000 SHAFT,5TH&REV GEAR SHF GUIDE2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
25431-73B52-000 |
US $26.13 |
||
|
18
|
18
08331-31126-000
Circlip
2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
08331-31126-000 |
— | ||
| replacement | |||||
|
18
|
18
08331-3112A-000 CIRCLIP2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
08331-3112A-000 |
from US $0.91 |
||
|
19
|
19
06111-10003-000 BALL2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
06111-10003-000 |
from US $0.80 |
||
|
20
|
20
09128-10002-000 BOLT(10X9)2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
09128-10002-000 |
from US $0.47 |
||
|
21
|
21
08322-11103-000 WASHER 105X18X162WD:5MT:TURBO; 1990-01-01~1991-08-01 |
08322-11103-000 |
from US $0.97 |
||
| replacements | |||||
|
21
|
21
08322-0110A-000 WASHERWasher, knuckle end 2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
08322-0110A-000 |
from US $0.80 |
||
|
21
|
21
08322-0110B-000 WASHERWasher, knuckle end 2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
08322-0110B-000 |
from US $0.76 |
||
|
22
|
22
25251-73B50-000 ARM,REVERSE GEAR SHIFT2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
25251-73B50-000 |
US $59.62 |
||
|
23
|
23
06111-10003-000 BALL2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
06111-10003-000 |
from US $0.80 |
||
|
24
|
24
25255-60B01-000 SPRING,REVERSE GEAR SHF ARMCHKK; 2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
25255-60B01-000 |
from US $1.60 |
||
|
25
|
25
25460-73B00-000 LEVER,REV GEAR SHF2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
25460-73B00-000 |
US $21.34 |
||
|
26
|
26
01137-08203-000
Bolt, brace front
2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
01137-08203-000 |
— | ||
| replacements | |||||
|
26
|
26
01570-0820B-000 Bolt2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
01570-0820B-000 |
US $17.30 |
||
|
26
|
26
01570-0820A-000 Bolt2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
01570-0820A-000 |
from US $0.96 |
||
|
27
|
27
25510-73B01-000
シャフト,ギヤシフト
2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
25510-73B01-000 |
— | ||
| replacement | |||||
|
27
|
27
25510-73B02-000 SHAFT,GEAR SHIFT2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
25510-73B02-000 |
US $25.02 |
||
|
28
|
28
25595-82000-000
Boot,gear shft shaft
2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
25595-82000-000 |
— | ||
| replacement | |||||
|
28
|
28
25595-82001-000 BOOT,GR SHF SFT2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
25595-82001-000 |
from US $9.77 |
||
|
29
|
29
09289-14001-000 オイルシール,14X25X192WD:5MT:TURBO; 1990-01-01~1991-08-01 |
09289-14001-000 |
US $11.27 |
||
| replacements | |||||
|
29
|
29
25517-60B01-000 SEAL,GEAR SHIFT OIL2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
25517-60B01-000 |
from US $8.66 |
||
|
29
|
29
25517-60B00-000 Oil seal14x25x19 2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
25517-60B00-000 |
US $11.27 |
||
|
30
|
30
06111-10003-000 BALL2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
06111-10003-000 |
from US $0.80 |
||
|
31
|
31
25515-60B01-000 SPRING,GEAR SHIFT SHAFTCHKK; 2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
25515-60B01-000 |
from US $0.81 |
||
|
32
|
32
09128-10002-000 BOLT(10X9)2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
09128-10002-000 |
from US $0.47 |
||
|
33
|
33
09168-10007-000 GASKET(10.1X16X1)Gasket, parking pawl 2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
09168-10007-000 |
from US $1.76 |
||
|
34
|
34
25521-70B02-000
アーム,ギヤシフト
2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
25521-70B02-000 |
— | ||
| replacement | |||||
|
34
|
34
25521-70B03-000 ARM,GEAR SHIFT2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
25521-70B03-000 |
US $35.14 |
||
|
35
|
35
25531-60B01-000 YOKE,GEAR SHIFT2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
25531-60B01-000 |
from US $9.34 |
||
|
36
|
36
25701-60B02-000 BOLT GEAR2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
25701-60B02-000 |
US $1.44 |
||
| replacement | |||||
|
36
|
36
25701-60B10-000 BOLT,GEAR SHIFT YOKE2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
25701-60B10-000 |
from US $1.44 |
||
|
37
|
37
25571-73B50-000
シャフト,ギヤシフト/セレクト
2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
25571-73B50-000 |
— | ||
| replacements | |||||
|
37
|
37
25571-73B52-000 SHAFT,GEAR SHIFT&SELECT2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
25571-73B52-000 |
US $28.15 |
||
|
37
|
37
25581-51K01-000 CAM,5TH&REV GRAR SHIFT2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
25581-51K01-000 |
US $16.80 |
||
|
37
|
37
09205-04015-000 PIN,SPRING(4.5X20)2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
09205-04015-000 |
from US $3.56 |
||
|
37
|
37
09205-04009-000 PIN,SPRING(4.5X20)2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
09205-04009-000 |
from US $0.29 |
||
|
38
|
38
09383-12002-000 E RINGCHKK; 2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
09383-12002-000 |
US $16.60 |
||
| replacement | |||||
|
38
|
38
08332-1112A-000 E RINGCHKK; 2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
08332-1112A-000 |
from US $0.96 |
||
|
39
|
39
25588-60B00-000
ガイド,セレクトスプリング
2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
25588-60B00-000 |
— | ||
| replacement | |||||
|
39
|
39
25587-74B00-000 GUIDE,LOW SELECT SPRING2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
25587-74B00-000 |
US $2.72 |
||
|
40
|
40
25576-70B00-000 SPRING,LOW SPEED SELECTCHKK; 2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
25576-70B00-000 |
US $2.72 |
||
|
41
|
41
08212-14301-000 WASHER2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
08212-14301-000 |
from US $0.77 |
||
|
42
|
42
25311-60B00-000 PLATE GEAR SHF INTERLOCLK2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
25311-60B00-000 |
US $5.92 |
||
| replacement | |||||
|
42
|
42
25311-60B20-000 PLATE,GEAR SHF INTERLOCK2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
25311-60B20-000 |
from US $5.92 |
||
|
43
|
43
25541-74B00-000 LEVER,GEAR SHF&SLT2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
25541-74B00-000 |
from US $17.93 |
||
|
44
|
44
09205-03016-000 PIN,SPRING(3.5X28)2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
09205-03016-000 |
from US $0.41 |
||
|
45
|
45
09205-06004-000 PIN,SPRING(6X28)2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
09205-06004-000 |
from US $0.36 |
||
|
46
|
46
25321-60B01-000 BOLT,GEAR SHF INTERLOCK2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
25321-60B01-000 |
from US $1.73 |
||
|
47
|
47
08322-11103-000 WASHER 105X18X162WD:5MT:TURBO; 1991-04-01~1991-08-01 |
08322-11103-000 |
from US $0.97 |
||
| replacements | |||||
|
47
|
47
08322-0110A-000 WASHERWasher, knuckle end 2WD:5MT:TURBO; 1991-04-01~1991-08-01 |
08322-0110A-000 |
from US $0.80 |
||
|
47
|
47
08322-0110B-000 WASHERWasher, knuckle end 2WD:5MT:TURBO; 1991-04-01~1991-08-01 |
08322-0110B-000 |
from US $0.76 |
||
|
47
|
47
09168-10032-000
ガスケット,10.2X18X2
2WD:5MT:TURBO; 1990-01-01~1991-04-01 |
09168-10032-000 |
— | ||
| replacement | |||||
|
47
|
47
09168-10031-000 GASKET(10.2X20X2.3)2WD:5MT:TURBO; 1990-01-01~1991-04-01 |
09168-10031-000 |
from US $0.74 |
||
|
48
|
48
25577-70B00-000
SPRING,REVERSE SELECT
CHKK; 2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
25577-70B00-000 |
— | ||
|
49
|
49
25581-60B50-000
CAM,5TH&REV GEAR SHIFT
2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
25581-60B50-000 |
— | ||
|
50
|
50
25582-60B50-000 GUIDE 5TH R5 REVERSE2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
25582-60B50-000 |
US $3.74 |
||
| replacement | |||||
|
50
|
50
25582-60B51-000 GUIDE,5TH&REV GR SHF2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
25582-60B51-000 |
from US $3.74 |
||
|
51
|
51
09205-03035-000 PIN,SPRING(3X22)2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
09205-03035-000 |
US $9.20 |
||
|
52
|
52
25583-60B50-000 SPRING,CAM GUIDE RETURNCHKK; 2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
25583-60B50-000 |
from US $0.81 |
||
|
53
|
53
09205-05005-000
スプリングピン
2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
09205-05005-000 |
— | ||
| replacement | |||||
|
53
|
53
09205-05013-000 PIN,SPRING(5X22)Pin, spring (5x22) 2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
09205-05013-000 |
from US $2.94 |
||
|
54
|
54
25584-60B50-000
BOLT
2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
25584-60B50-000 |
— | ||
| replacements | |||||
|
54
|
54
25584-51KA0-000
BOLT,5TH TO REV INTLK GUIDE
2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
25584-51KA0-000 |
— | ||
|
54
|
54
25584-51KA1-000 Bolt,5Th To Rev Intlk Guide2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
25584-51KA1-000 |
US $2.90 |
||
|
55
|
55
08322-11083-000 WasherWasher 2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
08322-11083-000 |
US $1.07 |
||
| replacements | |||||
|
55
|
55
08322-0108B-000 WASHER2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
08322-0108B-000 |
from US $0.96 |
||
|
55
|
55
08322-0108A-000 WASHER2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
08322-0108A-000 |
from US $0.96 |
||
|
56
|
56
25573-60B50-000
ケース,ギヤシフトガイド
2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
25573-60B50-000 |
— | ||
| replacement | |||||
|
56
|
56
25570-60B50-000 CASE,GR SHF GUIDE2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
25570-60B50-000 |
US $43.79 |
||
|
57
|
57
25575-60B50-000
プレート,ギヤシフトガイドケース
2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
25575-60B50-000 |
— | ||
| replacement | |||||
|
57
|
57
25575-60D50-000 PLATE,GR SHF GUIDE CASE2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
25575-60D50-000 |
US $3.02 |
||
|
58
|
58
09103-06128-000
ボルト,6X12
2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
09103-06128-000 |
— | ||
| replacement | |||||
|
58
|
58
09103-06285-000 BOLT(6X12)Bolt (6x12) 2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
09103-06285-000 |
from US $0.88 |
||
|
59
|
59
04221-06129-000 PIN2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
04221-06129-000 |
from US $0.96 |
||
|
60
|
60
01517-06253-000
ボルト
2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
01517-06253-000 |
— | ||
| replacements | |||||
|
60
|
60
01550-0625A-000 BoltBolt 2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
01550-0625A-000 |
from US $0.96 |
||
|
60
|
60
01550-0625B-000 BoltBolt, head cover 2WD:5MT:TURBO; 1990-01-01~1991-08-01 |
01550-0625B-000 |
from US $0.91 |
||
