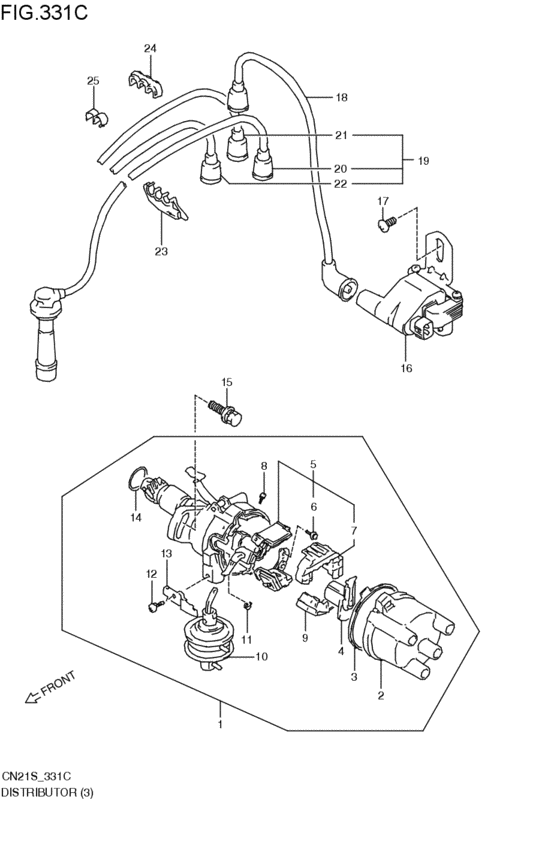

distributor ((V,S):4V:CARB:AT:TYPE2; 1991-01-01~1991-08-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 1991
- Sales region
- Japan
- Engine
- CARB
- drive
- 2WD
- transmission
- 3AT
- Number of doors
- 5DR
- grade
- BQ
- type
- TYPE2
- body
- S
- 寒冷地
- COLD-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33100-51E21-000
DISTRIBUTOR ASSY
(V,S):4V:CARB:AT:TYPE2; 1991-01-01~1991-08-01 |
33100-51E21-000 |
— | ||
|
2
|
2
33321-82011-000
キャップ
(V,S):4V:CARB:AT:TYPE2; 1991-01-01~1991-08-01 |
33321-82011-000 |
— | ||
| replacement | |||||
|
2
|
2
33321-79611-000 CAP(V,S):4V:CARB:AT:TYPE2; 1991-01-01~1991-08-01 |
33321-79611-000 |
US $43.20 |
||
|
3
|
3
33324-79610-000 PACKING,CAP(V,S):4V:CARB:AT:TYPE2; 1991-01-01~1991-08-01 |
33324-79610-000 |
US $1.52 |
||
|
4
|
4
33310-82010-000 ROTOR ASSY(V,S):4V:CARB:AT:TYPE2; 1991-01-01~1991-08-01 |
33310-82010-000 |
US $8.21 |
||
|
5
|
5
33370-62D20-000
IGNITER ASSY
(V,S):4V:CARB:AT:TYPE2; 1991-01-01~1991-08-01 |
33370-62D20-000 |
— | ||
|
6
|
6
33151-80020-000 SCREW,IGNITER(V,S):4V:CARB:AT:TYPE2; 1991-01-01~1991-08-01 |
33151-80020-000 |
US $1.60 |
||
|
7
|
7
33297-62D20-000
カバー,イグナイタダスト
(V,S):4V:CARB:AT:TYPE2; 1991-01-01~1991-08-01 |
33297-62D20-000 |
— | ||
|
8
|
8
02112-34086-000
Screw
(V,S):4V:CARB:AT:TYPE2; 1991-01-01~1991-08-01 |
02112-34086-000 |
— | ||
| replacement | |||||
|
8
|
8
02112-3408A-000 SCREW(V,S):4V:CARB:AT:TYPE2; 1991-01-01~1991-08-01 |
02112-3408A-000 |
from US $0.80 |
||
|
9
|
9
33279-80020-000 COVER,GENERATOR DUST(V,S):4V:CARB:AT:TYPE2; 1991-01-01~1991-08-01 |
33279-80020-000 |
US $9.44 |
||
|
10
|
10
33230-51E20-000
CONTROLLER ASSY,VACUUM
(V,S):4V:CARB:AT:TYPE2; 1991-01-01~1991-08-01 |
33230-51E20-000 |
— | ||
|
11
|
11
33239-76410-000 E-RING(V,S):4V:CARB:AT:TYPE2; 1991-01-01~1991-08-01 |
33239-76410-000 |
US $1.60 |
||
|
12
|
12
33238-86510-000
スクリュ
(V,S):4V:CARB:AT:TYPE2; 1991-01-01~1991-08-01 |
33238-86510-000 |
— | ||
| replacement | |||||
|
12
|
12
33239-82110-000 SCREW,VACUUM CONTROLLER(V,S):4V:CARB:AT:TYPE2; 1991-01-01~1991-08-01 |
33239-82110-000 |
US $1.32 |
||
|
13
|
13
33881-62D20-000
クランプ,コード
(V,S):4V:CARB:AT:TYPE2; 1991-01-01~1991-08-01 |
33881-62D20-000 |
— | ||
|
14
|
14
33278-52010-000
Oリング
(V,S):4V:CARB:AT:TYPE2; 1991-01-01~1991-08-01 |
33278-52010-000 |
— | ||
| replacement | |||||
|
14
|
14
33278-85310-000 O-RING(V,S):4V:CARB:AT:TYPE2; 1991-01-01~1991-08-01 |
33278-85310-000 |
from US $2.74 |
||
|
15
|
15
09118-08007-000
ボルト,8X30
(V,S):4V:CARB:AT:TYPE2; 1991-01-01~1991-08-01 |
09118-08007-000 |
— | ||
| replacement | |||||
|
15
|
15
09138-08003-000 SCREW(8X30)(V,S):4V:CARB:AT:TYPE2; 1991-01-01~1991-08-01 |
09138-08003-000 |
from US $1.49 |
||
|
16
|
16
33410-60E10-000
コイルアッシ,イグニツシヨン
(V,S):4V:CARB:AT:TYPE2; 1991-01-01~1991-08-01 |
33410-60E10-000 |
— | ||
| replacement | |||||
|
16
|
16
33410-70G00-000 COIL ASSY,IGNITION(V,S):4V:CARB:AT:TYPE2; 1991-01-01~1991-08-01 |
33410-70G00-000 |
US $256 |
||
|
17
|
17
02142-06103-000
Screw
(V,S):4V:CARB:AT:TYPE2; 1991-01-01~1991-08-01 |
02142-06103-000 |
— | ||
| replacements | |||||
|
17
|
17
02142-0610B-000 SCREWStopper, cl rlse cam shaft (V,S):4V:CARB:AT:TYPE2; 1991-01-01~1991-08-01 |
02142-0610B-000 |
from US $0.76 |
||
|
17
|
17
02142-0610A-000 SCREW(V,S):4V:CARB:AT:TYPE2; 1991-01-01~1991-08-01 |
02142-0610A-000 |
from US $0.96 |
||
|
18
|
18
33710-70B21-000
CORD,HIGH TENSION NO.1
(V,S):4V:CARB:AT:TYPE2; 1991-01-01~1991-08-01 |
33710-70B21-000 |
— | ||
|
19
|
19
33705-70B31-000 CORD SET,HIGH TENSION(V,S):4V:CARB:AT:TYPE2; 1991-01-01~1991-08-01 |
33705-70B31-000 |
US $95.31 |
||
|
20
|
20
33730-70B20-000
コード,ハイテンション,NO.2
(V,S):4V:CARB:AT:TYPE2; 1991-01-01~1991-08-01 |
33730-70B20-000 |
— | ||
| replacement | |||||
|
20
|
20
33730-70B21-000
CORD,HIGH TENSION NO.2
(V,S):4V:CARB:AT:TYPE2; 1991-01-01~1991-08-01 |
33730-70B21-000 |
— | ||
|
21
|
21
33740-70B20-000
コード,ハイテンション,NO.3
(V,S):4V:CARB:AT:TYPE2; 1991-01-01~1991-08-01 |
33740-70B20-000 |
— | ||
| replacement | |||||
|
21
|
21
33740-53E21-000 CORD,HIGH TENSION NO.3(V,S):4V:CARB:AT:TYPE2; 1991-01-01~1991-08-01 |
33740-53E21-000 |
US $34.59 |
||
|
22
|
22
33750-70B20-000
コード,ハイテンション,NO.4
(V,S):4V:CARB:AT:TYPE2; 1991-01-01~1991-08-01 |
33750-70B20-000 |
— | ||
| replacement | |||||
|
22
|
22
33750-70B31-000 CORD,HIGH TENSION NO.4(V,S):4V:CARB:AT:TYPE2; 1991-01-01~1991-08-01 |
33750-70B31-000 |
US $32.20 |
||
|
23
|
23
33881-82011-000 CLAMP,HIGH TENSION CORD(V,S):4V:CARB:AT:TYPE2; 1991-01-01~1991-08-01 |
33881-82011-000 |
US $2.88 |
||
|
24
|
24
33882-82010-000
Сlamp
(V,S):4V:CARB:AT:TYPE2; 1991-01-01~1991-08-01 |
33882-82010-000 |
— | ||
| replacement | |||||
|
24
|
24
09408-00035-000 CLIPClamp (V,S):4V:CARB:AT:TYPE2; 1991-01-01~1991-08-01 |
09408-00035-000 |
US $17.70 |
||
|
25
|
25
09408-00033-000 CLAMPClamp (V,S):4V:CARB:AT:TYPE2; 1991-01-01~1991-08-01 |
09408-00033-000 |
from US $1.60 |
||
