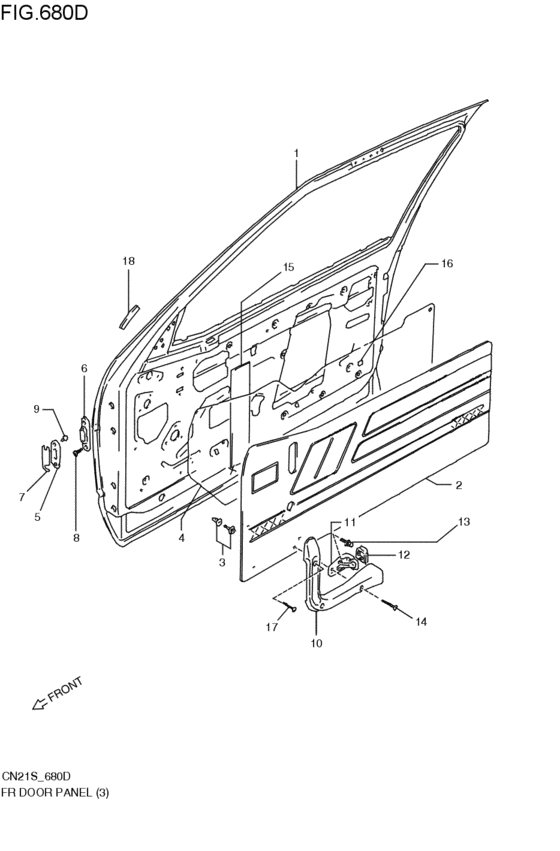

front door panel (SDR:RH; SDR; 1990-01-01~1991-08-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 1991
- Sales region
- Japan
- Engine
- CARB
- drive
- 2WD
- transmission
- 3AT
- Number of doors
- SDR
- grade
- CG
- type
- TYPE2
- body
- S
- 寒冷地
- COLD-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
68001-63D01-000
パネルアッシ,フロントドア,ライト
RH; SDR; 1990-01-01~1991-08-01 |
68001-63D01-000 |
— | ||
|
2
|
2
83710-63D00-J24
トリム,フロントドア,ライト
RH イエロー/ブラック; SDR:TYPE2; 1991-01-01~1991-08-01 |
83710-63D00-J24 |
— | ||
|
3
|
3
09409-08320-000 CLIPRH; SDR; 1990-01-01~1991-08-01 |
09409-08320-000 |
from US $1.15 |
||
|
4
|
4
83911-73B10-000
カバー,フロントドアシーリング,ライト
RH; SDR; 1990-01-01~1991-08-01 |
83911-73B10-000 |
— | ||
| replacement | |||||
|
4
|
4
83911-60X52-000 COVER,DR SEALINGRH; SDR; 1990-01-01~1991-08-01 |
83911-60X52-000 |
US $6.06 |
||
|
5
|
5
82741-70D00-000
ストッパ,ドアフロント,ボディ
RH; SDR; 1990-01-01~1991-08-01 |
82741-70D00-000 |
— | ||
| replacement | |||||
|
5
|
5
82741-79A00-000 STOPPER,RR DR FR BODYRH; SDR; 1990-01-01~1991-08-01 |
82741-79A00-000 |
US $12.16 |
||
|
6
|
6
82751-70D00-000 STOPPER,DR FR DRRH; SDR; 1990-01-01~1991-08-01 |
82751-70D00-000 |
US $5.76 |
||
|
7
|
7
78281-79500-000
スペーサ,シャットストップ,フロント
RH; SDR; 1990-01-01~1991-08-01 |
78281-79500-000 |
— | ||
| replacement | |||||
|
7
|
7
82795-54F00-000 SPACER,RR DR STPR BODYRH; SDR; 1990-01-01~1991-08-01 |
82795-54F00-000 |
US $1.60 |
||
|
8
|
8
02112-76163-000
Screw
RH; SDR; 1990-01-01~1991-08-01 |
02112-76163-000 |
— | ||
| replacement | |||||
|
8
|
8
02112-7616A-000 SCREWRH; SDR; 1990-01-01~1991-08-01 |
02112-7616A-000 |
from US $0.96 |
||
|
9
|
9
02142-06103-000
Screw
RH; SDR; 1990-01-01~1991-08-01 |
02142-06103-000 |
— | ||
| replacements | |||||
|
9
|
9
02142-0610B-000 SCREWStopper, cl rlse cam shaft RH; SDR; 1990-01-01~1991-08-01 |
02142-0610B-000 |
from US $0.76 |
||
|
9
|
9
02142-0610A-000 SCREWRH; SDR; 1990-01-01~1991-08-01 |
02142-0610A-000 |
from US $0.96 |
||
|
10
|
10
84431-73B00-6GL
ハンドル,フロントドアクローズ,ライト(ブラック)
RH ブラック; SDR:TYPE2; 1991-01-01~1991-08-01 |
84431-73B00-6GL |
— | ||
|
11
|
11
84433-73B00-000
ブラケット,オープンストッパ,ライト
RH; SDR; 1990-01-01~1991-08-01 |
84433-73B00-000 |
— | ||
|
12
|
12
84435-73B00-000
クッション,ストッパ,ライト
RH; SDR; 1990-01-01~1991-08-01 |
84435-73B00-000 |
— | ||
|
13
|
13
01177-06168-000
Bolt
RH; SDR; 1990-01-01~1991-08-01 |
01177-06168-000 |
— | ||
| replacement | |||||
|
13
|
13
01580-06167-000 BoltRH; SDR; 1990-01-01~1991-08-01 |
01580-06167-000 |
from US $4.54 |
||
|
14
|
14
02142-06353-000
Screw
RH; SDR; 1990-01-01~1991-08-01 |
02142-06353-000 |
— | ||
| replacement | |||||
|
14
|
14
02142-0635A-000 SCREWRH; SDR; 1990-01-01~1991-08-01 |
02142-0635A-000 |
from US $0.80 |
||
|
15
|
15
83971-60D00-000
シート,リヤドアサイレンサ
RH; SDR; 1990-01-01~1991-08-01 |
83971-60D00-000 |
— | ||
|
16
|
16
72115-70000-000
シール
RH; SDR; 1990-01-01~1991-08-01 |
72115-70000-000 |
— | ||
| replacement | |||||
|
16
|
16
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole RH; SDR; 1990-01-01~1991-08-01 |
84761-50X50-000 |
US $6.72 |
||
|
17
|
17
02142-06305-000
Screw
RH; SDR; 1990-01-01~1991-08-01 |
02142-06305-000 |
— | ||
| replacement | |||||
|
17
|
17
02142-0630B-000 SCREWRH; SDR; 1990-01-01~1991-08-01 |
02142-0630B-000 |
from US $4.13 |
||
|
18
|
18
83981-60D00-000
Seal,front door panel
RH; SDR; 1990-01-01~1991-08-01 |
83981-60D00-000 |
— | ||
