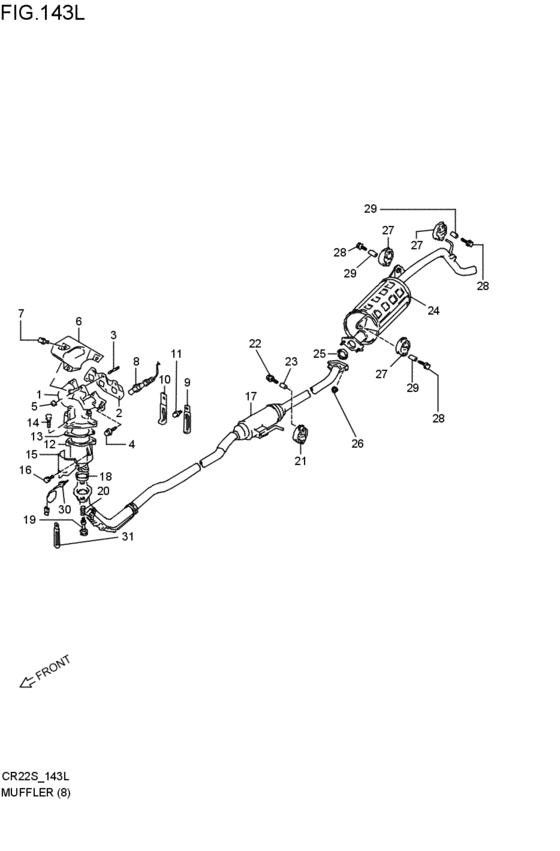

muffler (S:2WD:EPI; 1994-03-01~1994-11-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 1994
- Sales region
- Japan
- Engine
- 2V
- supercharge
- EPI
- drive
- 2WD
- transmission
- 5MT
- Number of doors
- 3DR
- grade
- AA
- type
- TYPE5
- body
- S
- air bag
- NAB
- abs
- NABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14111-64F00-000
マニホールド,エキゾースト
S:2WD:EPI; 1994-03-01~1994-11-01 |
14111-64F00-000 |
— | ||
| replacement | |||||
|
1
|
1
14111-60FV0-000
MANIFOLD,EXH
S:2WD:EPI; 1994-03-01~1994-11-01 |
14111-60FV0-000 |
— | ||
|
2
|
2
14141-67F01-000
ガスケット,エキゾーストマニホールド
S:2WD:EPI; 1994-03-01~1994-11-01 |
14141-67F01-000 |
— | ||
| replacement | |||||
|
2
|
2
14141-67F02-000 GASKET,EXH MANFS:2WD:EPI; 1994-03-01~1994-11-01 |
14141-67F02-000 |
from US $15.91 |
||
|
3
|
3
01411-08253-000
New Genuine Part
S:2WD:EPI; 1994-03-01~1994-11-01 |
01411-08253-000 |
— | ||
| replacement | |||||
|
3
|
3
01411-0825A-000 BOLT,STUDS:2WD:EPI; 1994-03-01~1994-11-01 |
01411-0825A-000 |
US $1.28 |
||
|
4
|
4
01550-08253-000
Bolt, rear
S:2WD:EPI; 1994-03-01~1994-11-01 |
01550-08253-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0825B-000 BoltS:2WD:EPI; 1994-03-01~1994-11-01 |
01550-0825B-000 |
from US $1.06 |
||
|
4
|
4
01550-0825A-000 BoltS:2WD:EPI; 1994-03-01~1994-11-01 |
01550-0825A-000 |
from US $0.47 |
||
|
5
|
5
08316-10083-000
Nut
S:2WD:EPI; 1994-03-01~1994-11-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
5
|
5
08316-1008B-000 NUTS:2WD:EPI; 1994-03-01~1994-11-01 |
08316-1008B-000 |
from US $0.76 |
||
|
6
|
6
14131-64F00-000
カバー,エキゾーストマニホールド
S:2WD:EPI; 1994-03-01~1994-11-01 |
14131-64F00-000 |
— | ||
|
7
|
7
01550-06103-000
Bolt, front
S:2WD:EPI; 1994-03-01~1994-11-01 |
01550-06103-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0610B-000 BoltBolt S:2WD:EPI; 1994-03-01~1994-11-01 |
01550-0610B-000 |
from US $0.96 |
||
|
7
|
7
01550-0610A-000 BoltS:2WD:EPI; 1994-03-01~1994-11-01 |
01550-0610A-000 |
from US $0.96 |
||
|
8
|
8
18213-64F00-000 SENSOR,OXYGENS:2WD:EPI; 1994-03-01~1994-11-01 |
18213-64F00-000 |
US $242.88 |
||
|
9
|
9
09404-06429-000 CLAMP(L:45)Clamp, coil lead wire S:2WD:EPI; 1994-03-01~1994-11-01 |
09404-06429-000 |
from US $1.52 |
||
|
10
|
10
09404-08417-000
Clamp (l:62)
S:2WD:EPI; 1994-03-01~1994-11-01 |
09404-08417-000 |
— | ||
| replacement | |||||
|
10
|
10
09404-08205-000 CLAMP(L:45 T:0.6)Clamp (l:62) S:2WD:EPI; 1994-03-01~1994-11-01 |
09404-08205-000 |
from US $1.98 |
||
|
11
|
11
01550-06103-000
Bolt, front
S:2WD:EPI; 1994-03-01~1994-11-01 |
01550-06103-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0610B-000 BoltBolt S:2WD:EPI; 1994-03-01~1994-11-01 |
01550-0610B-000 |
from US $0.96 |
||
|
11
|
11
01550-0610A-000 BoltS:2WD:EPI; 1994-03-01~1994-11-01 |
01550-0610A-000 |
from US $0.96 |
||
|
12
|
12
14100-62813-000
ケースセット,キャタリスト
S:2WD:EPI; 1994-03-01~1994-11-01 |
14100-62813-000 |
— | ||
| replacements | |||||
|
12
|
12
11641-70B02-000
BRACKET,ENG FR MTG
S:2WD:EPI; 1994-03-01~1994-11-01 |
11641-70B02-000 |
— | ||
|
12
|
12
11660-70B02-000
STIFFENER,FR MTG BRKT
S:2WD:EPI; 1994-03-01~1994-11-01 |
11660-70B02-000 |
— | ||
|
12
|
12
14100-62831-000
CASE SET,CATALYST
S:2WD:EPI; 1994-03-01~1994-11-01 |
14100-62831-000 |
— | ||
|
13
|
13
14181-78000-000
ガスケット,キャタリストケース
S:2WD:EPI; 1994-03-01~1994-11-01 |
14181-78000-000 |
— | ||
| replacement | |||||
|
13
|
13
14181-62F00-000 GASKET,CATALYST CASES:2WD:EPI; 1994-03-01~1994-11-01 |
14181-62F00-000 |
US $8.80 |
||
|
14
|
14
09103-10020-000 BOLT(10X25)S:2WD:EPI; 1994-03-01~1994-11-01 |
09103-10020-000 |
US $6.88 |
||
|
15
|
15
14171-70B02-000
カバー,キャタリストケース
S:2WD:EPI; 1994-03-01~1994-11-01 |
14171-70B02-000 |
— | ||
| replacement | |||||
|
15
|
15
14171-70B0V-000
COVER,CATALYST CASE
S:2WD:EPI; 1994-03-01~1994-11-01 |
14171-70B0V-000 |
— | ||
|
16
|
16
01550-06103-000
Bolt, front
S:2WD:EPI; 1994-03-01~1994-11-01 |
01550-06103-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-0610B-000 BoltBolt S:2WD:EPI; 1994-03-01~1994-11-01 |
01550-0610B-000 |
from US $0.96 |
||
|
16
|
16
01550-0610A-000 BoltS:2WD:EPI; 1994-03-01~1994-11-01 |
01550-0610A-000 |
from US $0.96 |
||
|
17
|
17
14190-70B04-000 PIPE,EXHAUSTS:2WD:EPI; 1994-03-01~1994-11-01 |
14190-70B04-000 |
US $294.40 |
||
|
18
|
18
14183-84300-000
リング,エキゾーストパイプ
S:2WD:EPI; 1994-03-01~1994-11-01 |
14183-84300-000 |
— | ||
| replacement | |||||
|
18
|
18
14183-75FC0-000 RING,SEAL EXH PIPES:2WD:EPI; 1994-03-01~1994-11-01 |
14183-75FC0-000 |
from US $14.09 |
||
|
19
|
19
09119-10056-000
ボルト,10X53.5
S:2WD:EPI; 1994-03-01~1994-11-01 |
09119-10056-000 |
— | ||
| replacement | |||||
|
19
|
19
14493-76G01-000 BOLT,EXH PIPES:2WD:EPI; 1994-03-01~1994-11-01 |
14493-76G01-000 |
from US $3.04 |
||
|
20
|
20
14492-82001-000 SPRING,EXH PIPES:2WD:EPI; 1994-03-01~1994-11-01 |
14492-82001-000 |
from US $1.28 |
||
|
21
|
21
14281-78010-000
Mounting, muffler
S:2WD:EPI; 1994-03-01~1994-11-01 |
14281-78010-000 |
— | ||
| replacement | |||||
|
21
|
21
14281-60G01-000 MOUNTING,MUFS:2WD:EPI; 1994-03-01~1994-11-01 |
14281-60G01-000 |
from US $5.96 |
||
|
22
|
22
01550-08353-000
Bolt, rear
S:2WD:EPI; 1994-03-01~1994-11-01 |
01550-08353-000 |
— | ||
| replacements | |||||
|
22
|
22
01550-0835B-000 BoltS:2WD:EPI; 1994-03-01~1994-11-01 |
01550-0835B-000 |
from US $1.28 |
||
|
22
|
22
01550-0835A-000 BoltS:2WD:EPI; 1994-03-01~1994-11-01 |
01550-0835A-000 |
from US $1.06 |
||
|
23
|
23
09180-08057-000
Spacer
S:2WD:EPI; 1994-03-01~1994-11-01 |
09180-08057-000 |
— | ||
| replacement | |||||
|
23
|
23
09180-08227-000 SPACER(8.2X12.5X23.5)S:2WD:EPI; 1994-03-01~1994-11-01 |
09180-08227-000 |
from US $1.04 |
||
|
24
|
24
14300-63D10-000
マフラ
S:2WD:EPI; 1994-03-01~1994-11-01 |
14300-63D10-000 |
— | ||
| replacement | |||||
|
24
|
24
14300-71GP0-000 MUFFLERS:2WD:EPI; 1994-03-01~1994-11-01 |
14300-71GP0-000 |
US $241.04 |
||
|
25
|
25
14182-60B00-000
GASKET,EXH PIPE
S:2WD:EPI; 1994-03-01~1994-11-01 |
14182-60B00-000 |
— | ||
| replacement | |||||
|
25
|
25
14182-60B01-000 Gasket,exh PipeS:2WD:EPI; 1994-03-01~1994-11-01 |
14182-60B01-000 |
from US $3.34 |
||
|
26
|
26
08316-10103-000
Nut
S:2WD:EPI; 1994-03-01~1994-11-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
26
|
26
08316-1010B-000 NUTS:2WD:EPI; 1994-03-01~1994-11-01 |
08316-1010B-000 |
from US $0.80 |
||
|
27
|
27
14281-78010-000
Mounting, muffler
S:2WD:EPI; 1994-03-01~1994-11-01 |
14281-78010-000 |
— | ||
| replacement | |||||
|
27
|
27
14281-60G01-000 MOUNTING,MUFS:2WD:EPI; 1994-03-01~1994-11-01 |
14281-60G01-000 |
from US $5.96 |
||
|
28
|
28
01550-08353-000
Bolt, rear
S:2WD:EPI; 1994-03-01~1994-11-01 |
01550-08353-000 |
— | ||
| replacements | |||||
|
28
|
28
01550-0835B-000 BoltS:2WD:EPI; 1994-03-01~1994-11-01 |
01550-0835B-000 |
from US $1.28 |
||
|
28
|
28
01550-0835A-000 BoltS:2WD:EPI; 1994-03-01~1994-11-01 |
01550-0835A-000 |
from US $1.06 |
||
|
29
|
29
09180-08057-000
Spacer
S:2WD:EPI; 1994-03-01~1994-11-01 |
09180-08057-000 |
— | ||
| replacement | |||||
|
29
|
29
09180-08227-000 SPACER(8.2X12.5X23.5)S:2WD:EPI; 1994-03-01~1994-11-01 |
09180-08227-000 |
from US $1.04 |
||
|
30
|
30
14810-84001-000
Fuse,thermo catalyst
S:2WD:EPI; 1994-03-01~1994-11-01 |
14810-84001-000 |
— | ||
| replacement | |||||
|
30
|
30
14810-840V0-000 FUSE,THERMO CATALYSTS:2WD:EPI; 1994-03-01~1994-11-01 |
14810-840V0-000 |
US $122.91 |
||
|
31
|
31
09404-08420-000 CLAMP(L:120 T:1.0)S:2WD:EPI; 1994-03-01~1994-11-01 |
09404-08420-000 |
from US $1.22 |
||
