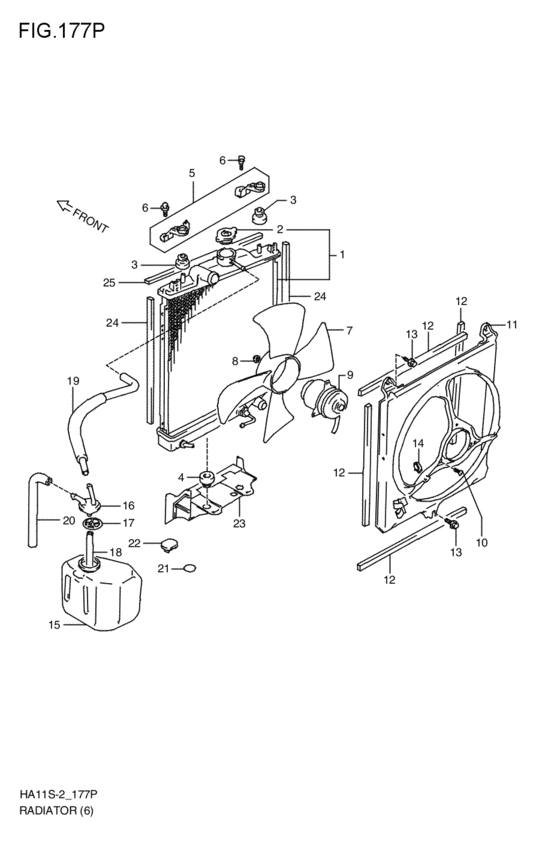

radiator (AT:2V:TURBO:2WD; 1997-04-01~1998-07-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- 2V
- supercharge
- TURBO
- drive
- 2WD
- transmission
- AT
- Number of doors
- 3DR
- grade
- SC
- number of the gears
- 4AT
- body
- S
- air bag
- AB
- abs
- ABS-N
- power steering
- PWST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17700-72G10-000 RADIATOR ASSYAT:2V:TURBO:2WD; 1997-04-01~1998-07-01 |
17700-72G10-000 |
US $503.36 |
||
|
2
|
2
17920-66F01-000 CAP,RADIATOR 1.1AT:2V:TURBO:2WD; 1997-04-01~1998-07-01 |
17920-66F01-000 |
from US $24.03 |
||
|
3
|
3
17879-70B01-000 MOUNT,RDTR SUPPORTAT:2V:TURBO:2WD; 1997-04-01~1998-07-01 |
17879-70B01-000 |
US $16.80 |
||
|
4
|
4
17879-60D00-000 MOUNT,RDTR SUPPORT LWRAT:2V:TURBO:2WD; 1997-04-01~1998-07-01 |
17879-60D00-000 |
US $3.75 |
||
|
5
|
5
17860-70810-000
BRACKET SET,RADIATOR SUPPORT
AT:2V:TURBO:2WD; 1997-04-01~1998-07-01 |
17860-70810-000 |
— | ||
|
6
|
6
02162-06123-000
Bolt (6x12)
AT:2V:TURBO:2WD; 1997-04-01~1998-07-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
6
|
6
02162-0612B-000 SCREWBolt AT:2V:TURBO:2WD; 1997-04-01~1998-07-01 |
02162-0612B-000 |
from US $0.80 |
||
|
6
|
6
02162-0612A-000 SCREWBolt, bracket AT:2V:TURBO:2WD; 1997-04-01~1998-07-01 |
02162-0612A-000 |
from US $0.79 |
||
|
7
|
7
17111-73G00-000
ファン,クーリング
AT:2V:TURBO:2WD; 1997-04-01~1998-07-01 |
17111-73G00-000 |
— | ||
|
8
|
8
08316-10053-000
Nut
AT:2V:TURBO:2WD; 1997-04-01~1998-07-01 |
08316-10053-000 |
— | ||
| replacement | |||||
|
8
|
8
08316-1005A-000 NUTAT:2V:TURBO:2WD; 1997-04-01~1998-07-01 |
08316-1005A-000 |
from US $0.96 |
||
|
9
|
9
17120-73G00-000
モータ,クーリングファン
AT:2V:TURBO:2WD; 1997-04-01~1998-07-01 |
17120-73G00-000 |
— | ||
|
10
|
10
02142-05103-000
Screw 5x10
AT:2V:TURBO:2WD; 1997-04-01~1998-07-01 |
02142-05103-000 |
— | ||
| replacement | |||||
|
10
|
10
02142-0510B-000 SCREWBolt AT:2V:TURBO:2WD; 1997-04-01~1998-07-01 |
02142-0510B-000 |
from US $0.72 |
||
|
11
|
11
17760-73G00-000
シュラウド,クーリングファン
AT:2V:TURBO:2WD; 1997-04-01~1998-07-01 |
17760-73G00-000 |
— | ||
|
12
|
12
17799-84010-000
SEAL,FAN SHROUD
L:360>330; AT:2V:TURBO:2WD; 1997-04-01~1998-07-01 |
17799-84010-000 |
— | ||
|
13
|
13
01550-06123-000
Bolt
AT:2V:TURBO:2WD; 1997-04-01~1998-07-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
13
|
13
01550-0612B-000 BoltBolt, clamp AT:2V:TURBO:2WD; 1997-04-01~1998-07-01 |
01550-0612B-000 |
from US $0.76 |
||
|
13
|
13
01550-0612A-000 BoltAT:2V:TURBO:2WD; 1997-04-01~1998-07-01 |
01550-0612A-000 |
from US $0.76 |
||
|
14
|
14
09403-08405-000 CLAMPClamp, decomp lead AT:2V:TURBO:2WD; 1997-04-01~1998-07-01 |
09403-08405-000 |
from US $3.47 |
||
|
15
|
15
17931-70B10-000
TANK,WATER RESERVE
AT:2V:TURBO:2WD; 1997-04-01~1998-07-01 |
17931-70B10-000 |
— | ||
|
16
|
16
17932-60D20-000 CAP,WATER RSVR TANKAT:2V:TURBO:2WD; 1997-04-01~1998-07-01 |
17932-60D20-000 |
US $2.08 |
||
|
17
|
17
17933-60B00-000 RUBBER,WTR RSV TANK CAPRubber, tank cap AT:2V:TURBO:2WD; 1997-04-01~1998-07-01 |
17933-60B00-000 |
from US $1.98 |
||
|
18
|
18
09352-70111-600 HOSE(7X11X600)L:600>115; AT:2V:TURBO:2WD; 1997-04-01~1998-07-01 |
09352-70111-600 |
from US $6.84 |
||
|
19
|
19
17938-70G20-000
HOSE,RDTR TO RSVR TANK
AT:2V:TURBO:2WD; 1997-04-01~1998-07-01 |
17938-70G20-000 |
— | ||
|
20
|
20
17936-60D00-000
ホース,リザーバタンクベント
AT:2V:TURBO:2WD; 1997-04-01~1998-07-01 |
17936-60D00-000 |
— | ||
| replacement | |||||
|
20
|
20
17939-65D00-000 HOSE,RSVR TANK VENTAT:2V:TURBO:2WD; 1997-04-01~1998-07-01 |
17939-65D00-000 |
from US $3.62 |
||
|
21
|
21
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole AT:2V:TURBO:2WD; 1997-04-01~1998-07-01 |
84761-50X50-000 |
from US $6.72 |
||
|
22
|
22
17712-70G00-000 CAP,RDTR MTG HOLEAT:2V:TURBO:2WD; 1997-04-01~1998-07-01 |
17712-70G00-000 |
US $2.39 |
||
|
23
|
23
17721-70G51-000
リーダ,ウィンド
AT:2V:TURBO:2WD; 1997-04-01~1998-07-01 |
17721-70G51-000 |
— | ||
|
24
|
24
17731-70G50-000
PACKING,RADIATOR
AT:2V:TURBO:2WD; 1997-04-01~1998-07-01 |
17731-70G50-000 |
— | ||
|
25
|
25
95811-70B00-000 PACKING,HOODAT:2V:TURBO:2WD; 1997-04-01~1998-07-01 |
95811-70B00-000 |
US $7.10 |
||
