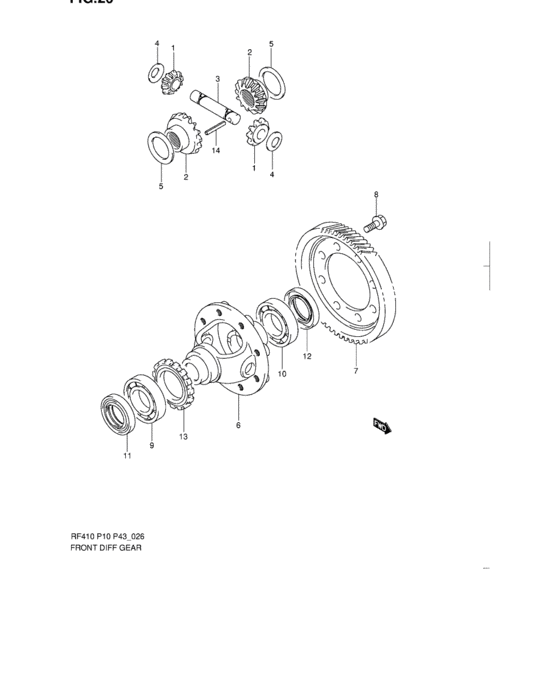

Front diff gear (FRONT DIFF GEAR) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Middle east
- grade
- DX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27331-M8302-000
Pinion, differential
|
27331-M8302-000 |
— | ||
|
2
|
2
27341-M76G0-000
Gear, differential
|
27341-M76G0-000 |
— | ||
|
3
|
3
27351-M64B0-200
Shaft, pinion
|
27351-M64B0-200 |
— | ||
|
4
|
4
09164-M1500-600
Washer
|
09164-M1500-600 |
— | ||
|
5
|
5
09160-M3500-600
Washer
|
09160-M3500-600 |
— | ||
|
5
|
5
09160-M3500-200
Washer
|
09160-M3500-200 |
— | ||
|
5
|
5
09160-M3500-300
Washer
|
09160-M3500-300 |
— | ||
|
6
|
6
27411-M79F0-000
Case, front differential
|
27411-M79F0-000 |
— | ||
|
7
|
7
27511-54G00-000
GEAR,FINAL
|
27511-54G00-000 |
— | ||
|
8
|
8
09103-M1018-900
Bolt
|
09103-M1018-900 |
— | ||
|
9
|
9
09262-35070-000 BEARING(35X62X14) |
09262-35070-000 |
from US $24.80 |
||
|
10
|
10
09262-35038-000 BEARING(35X72X17)Bearing, lh (35x72x17) |
09262-35038-000 |
from US $22.04 |
||
|
11
|
11
27431-M80F0-000
Seal, oil
|
27431-M80F0-000 |
— | ||
|
12
|
12
09283-M3503-700
Seal, oil
|
09283-M3503-700 |
— | ||
|
13
|
13
26121-M76G1-000
Ring, exciter
|
26121-M76G1-000 |
— | ||
|
14
|
14
09205-M0500-700
Spring pin
|
09205-M0500-700 |
— |
