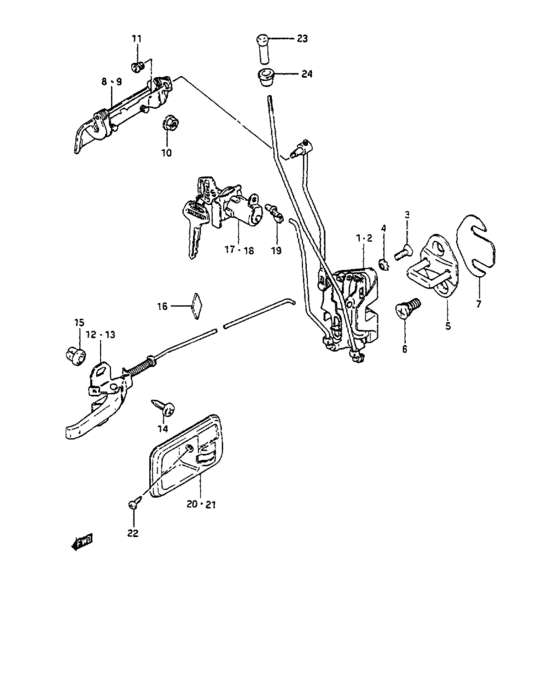

Front door lock (FRONT DOOR LOCK) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Pacific
- transmission
- MT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82201-81010-000
Lock assy, front door rh
|
82201-81010-000 |
— | ||
|
2
|
2
82202-81010-000
Lock assy, front door lh
|
82202-81010-000 |
— | ||
|
3
|
3
02132-06166-000
スクリュ
|
02132-06166-000 |
— | ||
| replacement | |||||
|
3
|
3
02122-0616B-000 SCREWScrew, intake pipe |
02122-0616B-000 |
from US $0.80 |
||
|
4
|
4
08323-31066-000
ワッシャ
|
08323-31066-000 |
— | ||
| replacement | |||||
|
4
|
4
08323-3106A-000 WASHER,LOCK |
08323-3106A-000 |
US $0.88 |
||
|
5
|
5
78110-78000-000
STRIKER,DOOR LOCK
|
78110-78000-000 |
— | ||
|
6
|
6
09137-08004-000 SCREW(8X18) |
09137-08004-000 |
from US $0.99 |
||
| replacement | |||||
|
6
|
6
09137-08011-000 SCREW(8X18) |
09137-08011-000 |
from US $1.40 |
||
|
7
|
7
78199-78000-000 SPACER,DOOR LOCK STRIKER |
78199-78000-000 |
from US $0.68 |
||
|
8
|
8
82810-80102-000
Handle, out side rh
|
82810-80102-000 |
— | ||
| replacement | |||||
|
8
|
8
82810-83000-000 HANDLE,DOOR OUTSIDE,R |
82810-83000-000 |
from US $36.25 |
||
|
9
|
9
82820-80102-000
Handle, out side lh
|
82820-80102-000 |
— | ||
| replacement | |||||
|
9
|
9
82820-83000-000 HANDLE,DOOR OUTSIDE,L |
82820-83000-000 |
from US $36.25 |
||
|
10
|
10
08316-26066-000
Nut 6mm
|
08316-26066-000 |
— | ||
| replacements | |||||
|
10
|
10
08316-2006A-000 NUT |
08316-2006A-000 |
from US $0.76 |
||
|
10
|
10
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.80 |
||
|
11
|
11
82891-80100-000 SNAP,JOINT |
82891-80100-000 |
from US $0.70 |
||
|
12
|
12
83110-81000-281
Handle, door inside rh
|
83110-81000-281 |
— | ||
|
13
|
13
83130-81000-281
Handle, door inside lh
|
83130-81000-281 |
— | ||
|
14
|
14
03241-06126-000
New Genuine Part
|
03241-06126-000 |
— | ||
| replacement | |||||
|
14
|
14
03241-0612A-000 SCREW |
03241-0612A-000 |
US $0.80 |
||
|
15
|
15
09148-06007-000 NUT |
09148-06007-000 |
from US $0.91 |
||
|
16
|
16
77591-75000-000 PAD |
77591-75000-000 |
from US $0.56 |
||
|
17
|
17
77400-70811-000
Key cylinder, lock rh
|
77400-70811-000 |
— | ||
| replacement | |||||
|
17
|
17
77400-70812-000 CYLINDER,FR DR LATCH LOCK,R |
77400-70812-000 |
from US $31.75 |
||
|
18
|
18
77400-70831-000
Key cylinder, lock lh
|
77400-70831-000 |
— | ||
| replacements | |||||
|
18
|
18
77400-70812-000 CYLINDER,FR DR LATCH LOCK,R |
77400-70812-000 |
from US $31.75 |
||
|
18
|
18
77400-70832-000 CYLINDER,FR DR LATCH LOCK,L |
77400-70832-000 |
from US $36.14 |
||
|
19
|
19
09209-05016-000 PIN |
09209-05016-000 |
from US $1.15 |
||
|
20
|
20
78471-79000-281
Case, inside handle rh
|
78471-79000-281 |
— | ||
| replacement | |||||
|
20
|
20
78471-79001-5ES BEZEL,DR INSIDE HDL,R |
78471-79001-5ES |
from US $4.46 |
||
|
21
|
21
78481-79000-281
Case, inside handle lh
|
78481-79000-281 |
— | ||
| replacement | |||||
|
21
|
21
78481-79001-5ES BEZEL,DR INSIDE HDL,L |
78481-79001-5ES |
from US $3.71 |
||
|
22
|
22
03141-04085-000
New Genuine Part
|
03141-04085-000 |
— | ||
| replacement | |||||
|
22
|
22
03141-0408A-000 SCREW |
03141-0408A-000 |
from US $0.79 |
||
|
23
|
23
78241-60002-000 KNOB |
78241-60002-000 |
from US $1.52 |
||
|
24
|
24
82991-84000-000 CAP,DR INSIDE LOCK KNOB |
82991-84000-000 |
from US $1.40 |
||
