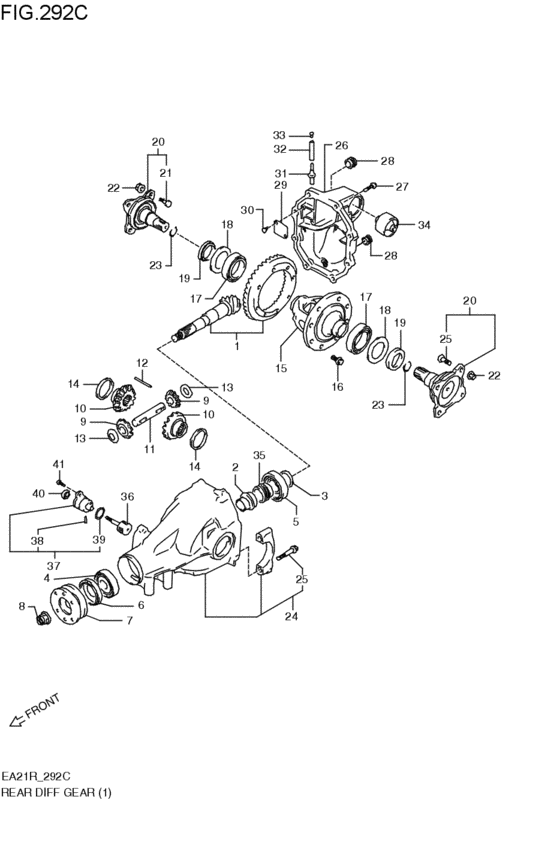

リヤデファレンシャルギヤ (STD; 1995-05-01~1997-07-01) Diagram Suzuki CAPPUCCINO
- Year
- 1995 - 2011
- Sales region
- Japan
- Engine
- DOHC
- supercharge
- TURBO
- drive
- 2WD
- transmission
- 5MT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27300-80860-000
Bevel pinion & gear set
STD:5MT; 1995-05-01~1997-07-01 |
27300-80860-000 |
— | ||
|
2
|
2
27315-80F01-000 SPACER,PINION BEARINGSTD; 1995-05-01~1997-07-01 |
27315-80F01-000 |
US $56 |
||
|
3
|
3
29521-74C40-000 SHIM,BEVEL PINION T:0.72CHKK; STD; 1995-05-01~1997-07-01 |
29521-74C40-000 |
US $2.74 |
||
|
3
|
3
29521-74C60-000 SHIM,T/F PINION BRG T:0.78CHKK; STD; 1995-05-01~1997-07-01 |
29521-74C60-000 |
US $2.74 |
||
|
3
|
3
29521-74C80-000 SHIM,BEVEL PINION T:0.84CHKK; STD; 1995-05-01~1997-07-01 |
29521-74C80-000 |
US $2.74 |
||
|
3
|
3
09181-30043-000
Shim (t:0.90)
STD; 1995-05-01~1997-07-01 |
09181-30043-000 |
— | ||
| replacement | |||||
|
3
|
3
09181-30164-000 SHIM(30X40X0.9)Shim (t:0.90) STD; 1995-05-01~1997-07-01 |
09181-30164-000 |
from US $2.66 |
||
|
3
|
3
09181-30044-000
Shim (t:0.95)
STD; 1995-05-01~1997-07-01 |
09181-30044-000 |
— | ||
| replacement | |||||
|
3
|
3
09181-30165-000 SHIM(30X40X0.95)Shim (t:0.95) STD; 1995-05-01~1997-07-01 |
09181-30165-000 |
from US $5.02 |
||
|
4
|
4
09265-25027-000
TAPER ROLLER BEARING
STD; 1995-05-01~1997-07-01 |
09265-25027-000 |
— | ||
| replacement | |||||
|
4
|
4
09265-25039-000 BEARING(25X62X18.25)STD; 1995-05-01~1997-07-01 |
09265-25039-000 |
from US $28.60 |
||
|
5
|
5
09265-30012-000
Rt 30x72x21 brg
STD; 1995-05-01~1997-07-01 |
09265-30012-000 |
— | ||
| replacement | |||||
|
5
|
5
09265-30018-000 BEARING(30X72X20.75)STD; 1995-05-01~1997-07-01 |
09265-30018-000 |
from US $40.80 |
||
|
6
|
6
27371-80F00-000 OIL SEAL,DIFF INPUTSTD; 1995-05-01~1997-07-01 |
27371-80F00-000 |
from US $16.74 |
||
|
7
|
7
27110-63202-000 FLANGE,UNIVERSAL JOINTSTD; 1995-05-01~1997-07-01 |
27110-63202-000 |
US $70.29 |
||
|
8
|
8
27375-80F00-000 NUT,DRIVE PINIONSTD; 1995-05-01~1997-07-01 |
27375-80F00-000 |
US $16.80 |
||
|
9
|
9
27331-83020-000 PINION,DIFFERENTIALSTD; 1995-05-01~1997-07-01 |
27331-83020-000 |
from US $32.31 |
||
| replacements | |||||
|
9
|
9
27331-76A20-000
PINION,DIFFERENTIAL
STD; 1995-05-01~1997-07-01 |
27331-76A20-000 |
— | ||
|
9
|
9
27331-76A21-000 Pinion,differentialSTD; 1995-05-01~1997-07-01 |
27331-76A21-000 |
from US $31.91 |
||
|
10
|
10
27341-64B00-000
GEAR DIFFOLD
STD; 1995-05-01~1997-07-01 |
27341-64B00-000 |
— | ||
| replacements | |||||
|
10
|
10
27341-76A21-000
GEAR,DIFF
STD; 1995-05-01~1997-07-01 |
27341-76A21-000 |
— | ||
|
10
|
10
27341-76A22-000 Gear,diffSTD; 1995-05-01~1997-07-01 |
27341-76A22-000 |
from US $43.56 |
||
|
11
|
11
27351-64B20-000 SHAFT,DIFF SIDE PINIONSTD; 1995-05-01~1997-07-01 |
27351-64B20-000 |
from US $15.77 |
||
|
12
|
12
09205-05003-000 PIN,SPRING(5X45)STD; 1995-05-01~1997-07-01 |
09205-05003-000 |
from US $0.36 |
||
|
13
|
13
09164-15006-000 WASHERSTD; 1995-05-01~1997-07-01 |
09164-15006-000 |
from US $1.67 |
||
|
14
|
14
09160-35002-000 WASHER(35X46X1)STD; 1995-05-01~1997-07-01 |
09160-35002-000 |
from US $1.53 |
||
|
14
|
14
09160-35003-000 WASHER(35X46X1.1)STD; 1995-05-01~1997-07-01 |
09160-35003-000 |
from US $1.94 |
||
|
14
|
14
09160-35004-000 WASHER(35X46X1.2)STD; 1995-05-01~1997-07-01 |
09160-35004-000 |
from US $1.94 |
||
|
14
|
14
09160-35006-000 WASHER(35X46X0.9)STD; 1995-05-01~1997-07-01 |
09160-35006-000 |
from US $1.73 |
||
|
14
|
14
09160-35008-000 WASHER(35X46X0.95)Washer (35x46x0.95) STD; 1995-05-01~1997-07-01 |
09160-35008-000 |
from US $1.31 |
||
|
14
|
14
09160-35009-000 WASHER(35X46X1.05)STD; 1995-05-01~1997-07-01 |
09160-35009-000 |
from US $1.73 |
||
|
14
|
14
09160-35010-000 WASHER(35X46X1.15)STD; 1995-05-01~1997-07-01 |
09160-35010-000 |
from US $1.69 |
||
|
15
|
15
27411-80F00-000
Case,diff
STD; 1995-05-01~1997-07-01 |
27411-80F00-000 |
— | ||
|
16
|
16
09103-10028-000
Bolt, oil pump drive gear
STD; 1995-05-01~1997-07-01 |
09103-10028-000 |
— | ||
| replacement | |||||
|
16
|
16
09103-10290-000 BOLT(10X20)Bolt, oil pump drive gear STD; 1995-05-01~1997-07-01 |
09103-10290-000 |
from US $1.76 |
||
|
17
|
17
27395-80F00-000 BEARING,DIFF SIDESTD; 1995-05-01~1997-07-01 |
27395-80F00-000 |
US $136 |
||
|
18
|
18
27453-80F00-230 SHIM,DIFF SIDE T:2.30STD; 1995-05-01~1997-07-01 |
27453-80F00-230 |
US $35.20 |
||
|
18
|
18
27453-80F00-236 SHIM,DIFF SIDE T:2.36STD; 1995-05-01~1997-07-01 |
27453-80F00-236 |
US $14.76 |
||
|
18
|
18
27453-80F00-242 SHIM,DIFF SIDE T:2.42STD; 1995-05-01~1997-07-01 |
27453-80F00-242 |
US $14.76 |
||
|
18
|
18
27453-80F00-248 SHIM,DIFF SIDE T:2.48STD; 1995-05-01~1997-07-01 |
27453-80F00-248 |
US $14.76 |
||
|
18
|
18
27453-80F00-254 SHIM,DIFF SIDE T:2.54STD; 1995-05-01~1997-07-01 |
27453-80F00-254 |
US $35.20 |
||
|
18
|
18
27453-80F00-260 SHIM,DIFF SIDE T:2.60STD; 1995-05-01~1997-07-01 |
27453-80F00-260 |
US $14.76 |
||
|
19
|
19
27431-73B20-000 OIL SEAL,DIFF SIDESeal, defferential side oil STD; 1995-05-01~1997-07-01 |
27431-73B20-000 |
from US $12.96 |
||
| replacement | |||||
|
19
|
19
27431-73H30-000 SEAL,OILSTD; 1995-05-01~1997-07-01 |
27431-73H30-000 |
from US $12.67 |
||
|
20
|
20
27780-80F00-000
FLANGE,DRIVE SHAFT
STD; 1995-05-01~1997-07-01 |
27780-80F00-000 |
— | ||
|
21
|
21
09119-10049-000
Bolt (10x30)
STD; 1995-05-01~1997-07-01 |
09119-10049-000 |
— | ||
| replacement | |||||
|
21
|
21
09119-10049-XC0 BoltSTD; 1995-05-01~1997-07-01 |
09119-10049-XC0 |
from US $2.24 |
||
|
22
|
22
08316-10103-000
Nut
STD; 1995-05-01~1997-07-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
22
|
22
08316-1010B-000 NUTSTD; 1995-05-01~1997-07-01 |
08316-1010B-000 |
from US $0.80 |
||
|
23
|
23
09381-24001-000 RING,SNAPRing (od:24,d:1.6) STD; 1995-05-01~1997-07-01 |
09381-24001-000 |
from US $1.60 |
||
|
24
|
24
27450-80F00-000
CARRIER ASSY,DIFF
STD; 1995-05-01~1997-07-01 |
27450-80F00-000 |
— | ||
|
25
|
25
09111-10054-000 BOLT(10X50)STD; 1995-05-01~1997-07-01 |
09111-10054-000 |
from US $2.77 |
||
|
26
|
26
27461-80F01-000
Cover,diff
STD; 1995-05-01~1997-07-01 |
27461-80F01-000 |
— | ||
|
27
|
27
01550-08303-000
Bolt
STD; 1995-05-01~1997-07-01 |
01550-08303-000 |
— | ||
| replacements | |||||
|
27
|
27
01550-0830B-000 BoltSTD; 1995-05-01~1997-07-01 |
01550-0830B-000 |
from US $1.06 |
||
|
27
|
27
01550-0830A-000 BoltBolt, mount oil seal cover STD; 1995-05-01~1997-07-01 |
01550-0830A-000 |
from US $1.06 |
||
|
28
|
28
09246-16010-000 PLUGマグネットツキ; STD; 1995-05-01~1997-07-01 |
09246-16010-000 |
US $4.37 |
||
| replacement | |||||
|
28
|
28
09246-16021-000 Plug,t/m Oil Drainマグネットツキ; STD; 1995-05-01~1997-07-01 |
09246-16021-000 |
from US $4.37 |
||
|
29
|
29
27465-80F00-000
PLATE,OIL PROTECT
STD; 1995-05-01~1997-07-01 |
27465-80F00-000 |
— | ||
|
30
|
30
01500-06103-000
Bolt, drive
STD; 1995-05-01~1997-07-01 |
01500-06103-000 |
— | ||
| replacement | |||||
|
30
|
30
01500-0610B-000 BoltBolt STD; 1995-05-01~1997-07-01 |
01500-0610B-000 |
from US $0.80 |
||
|
31
|
31
24714-56F00-000 UNION,T/F BREATHERSTD; 1995-05-01~1997-07-01 |
24714-56F00-000 |
US $6.29 |
||
|
32
|
32
09355-70125-600 HOSE(7X12X600)Hose, fuel (pump to separator) L:600>40; STD; 1995-05-01~1997-07-01 |
09355-70125-600 |
from US $6.54 |
||
| replacement | |||||
|
32
|
32
44421-12FR0-000 HOSEL:600>40; STD; 1995-05-01~1997-07-01 |
44421-12FR0-000 |
from US $17.46 |
||
|
33
|
33
46543-60A00-000
PLUG BREATHER
STD; 1995-05-01~1997-07-01 |
46543-60A00-000 |
— | ||
| replacement | |||||
|
33
|
33
27991-65D01-000 PLUG,BREATHERSTD; 1995-05-01~1997-07-01 |
27991-65D01-000 |
from US $1.92 |
||
|
34
|
34
29658-80F00-000 MOUNT,DIFF RRSTD; 1995-05-01~1997-07-01 |
29658-80F00-000 |
US $102.40 |
||
|
35
|
35
26121-80F00-000
Gear,speedometer drive
STD; 1995-05-01~1997-07-01 |
26121-80F00-000 |
— | ||
|
36
|
36
26131-80F00-000
GEAR,SPDOM DRIVEN
STD:5MT; 1995-05-01~1997-07-01 |
26131-80F00-000 |
— | ||
|
37
|
37
29430-60810-000 CASE SET,SPEEDOMETER GEARSTD; 1995-05-01~1997-07-01 |
29430-60810-000 |
from US $24.86 |
||
|
38
|
38
09205-03028-000 PIN,SPRING(3X14)Pin, driveshaft spring STD; 1995-05-01~1997-07-01 |
09205-03028-000 |
US $1.12 |
||
|
39
|
39
09280-24009-000 O RING(D:3.6,ID:23.5)O ring STD; 1995-05-01~1997-07-01 |
09280-24009-000 |
from US $1.15 |
||
|
40
|
40
09282-07001-000 SEAL,OIL(7X16X5)STD; 1995-05-01~1997-07-01 |
09282-07001-000 |
US $3.38 |
||
|
41
|
41
01550-06123-000
Bolt
STD; 1995-05-01~1997-07-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
41
|
41
01550-0612B-000 BoltBolt, clamp STD; 1995-05-01~1997-07-01 |
01550-0612B-000 |
from US $0.76 |
||
|
41
|
41
01550-0612A-000 BoltSTD; 1995-05-01~1997-07-01 |
01550-0612A-000 |
from US $0.76 |
||
