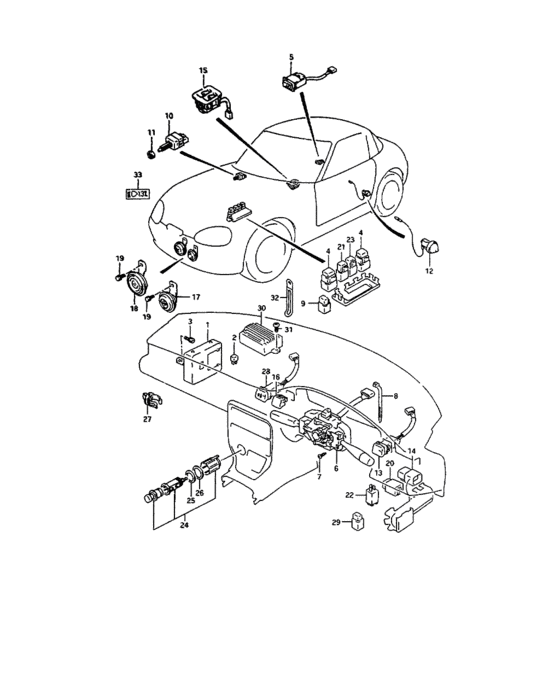

Electrical control (ELECTRICAL CONTROL) Diagram Suzuki CAPPUCCINO
- Year
- -
- Sales region
- Asia
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33920-80F10-000
CONTROLLER,FUEL INJECTION
|
33920-80F10-000 |
— | ||
|
2
|
2
33933-80710-000 RESISTOR,CO ADJUSTMORK:L5 |
33933-80710-000 |
US $6.96 |
||
|
2
|
2
33932-80710-000
RESISTER,CO ADJUST NO.7
MORK:L4 |
33932-80710-000 |
— | ||
|
2
|
2
33926-80710-000 RESISTOR,CO ADJUSTMORK:L3 |
33926-80710-000 |
US $8.10 |
||
|
2
|
2
33927-80710-000 RESISTOR,CO ADJUSTMORK:L2 |
33927-80710-000 |
US $8.10 |
||
|
2
|
2
33928-80710-000 RESISTOR,CO ADJUSTMORK:L1 |
33928-80710-000 |
US $8.10 |
||
|
2
|
2
33929-80710-000
RESISTOR,CO ADJUST
MORK:R1 |
33929-80710-000 |
— | ||
|
2
|
2
33930-80710-000 RESISTOR,CO ADJUSTMORK:R2 |
33930-80710-000 |
from US $6.95 |
||
|
2
|
2
33931-80710-000 RESISTOR,CO ADJUSTMORK:R3 |
33931-80710-000 |
US $8.10 |
||
|
3
|
3
09128-06011-000
SCREW(6X12)
|
09128-06011-000 |
— | ||
| replacement | |||||
|
3
|
3
09128-06092-000 SCREW(6X12) |
09128-06092-000 |
from US $2.79 |
||
|
4
|
4
38860-84010-000
リレーアッシ
|
38860-84010-000 |
— | ||
| replacement | |||||
|
4
|
4
38860-72G00-000 RELAY ASSYRelay, air con |
38860-72G00-000 |
from US $28.82 |
||
|
5
|
5
36220-80F00-000
スイッチアッシ,ルームランプ
|
36220-80F00-000 |
— | ||
|
6
|
6
37400-60F14-000
SWITCH ASSY,COMB
TYPE 1 |
37400-60F14-000 |
— | ||
|
6
|
6
37400-70F13-000
スイッチアッシ,コンビネーション
TYPE 2 |
37400-70F13-000 |
— | ||
| replacement | |||||
|
6
|
6
37400-60F14-000
SWITCH ASSY,COMB
TYPE 2 |
37400-60F14-000 |
— | ||
|
7
|
7
02112-05123-000
Screw 5x12
|
02112-05123-000 |
— | ||
| replacement | |||||
|
7
|
7
02112-0512A-000 SCREW |
02112-0512A-000 |
from US $0.80 |
||
|
8
|
8
09407-25401-000 CLAMP(L:235)Clamp (l:235) |
09407-25401-000 |
from US $1.87 |
||
|
9
|
9
38850-60A10-000 RELAY ASSY |
38850-60A10-000 |
US $28.82 |
||
| replacement | |||||
|
9
|
9
38860-72G00-000 RELAY ASSYRelay, air con |
38860-72G00-000 |
from US $28.82 |
||
|
10
|
10
37740-60D00-000 SWITCH ASSY STOP LAMP |
37740-60D00-000 |
US $28.82 |
||
| replacement | |||||
|
10
|
10
37740-60D01-000 SWITCH ASSY,STOP LAMP |
37740-60D01-000 |
from US $28.82 |
||
|
11
|
11
09140-10043-000 NUTNut, tie rod rh thread |
09140-10043-000 |
from US $0.91 |
||
|
12
|
12
37670-60B11-000
スイッチアッシ,ドア
|
37670-60B11-000 |
— | ||
| replacement | |||||
|
12
|
12
37670-60A02-000 SWITCH ASSY,DOOR |
37670-60A02-000 |
from US $13.84 |
||
|
13
|
13
37860-80F00-000 SWITCH ASSY,RR DEFOGGER |
37860-80F00-000 |
US $95.68 |
||
|
14
|
14
38850-60A10-000 RELAY ASSY |
38850-60A10-000 |
US $28.82 |
||
| replacement | |||||
|
14
|
14
38860-72G00-000 RELAY ASSYRelay, air con |
38860-72G00-000 |
from US $28.82 |
||
|
15
|
15
37990-80F00-000 SWITCH ASSY,P/W |
37990-80F00-000 |
US $468.80 |
||
|
16
|
16
37275-80F00-000
CAP,OPTION SW HOLE
, Hong Kong |
37275-80F00-000 |
— | ||
|
17
|
17
38500-60B10-000
ホーンアッシ,ハイ
|
38500-60B10-000 |
— | ||
| replacement | |||||
|
17
|
17
38500-60B11-000
HORN ASSY
|
38500-60B11-000 |
— | ||
|
17
|
17
38500-86110-000
Horn assy, high pitched
|
38500-86110-000 |
— | ||
| replacement | |||||
|
17
|
17
38500-60G10-000 HORN ASSY |
38500-60G10-000 |
from US $32.20 |
||
|
18
|
18
38500-83000-000
HORN ASSY
|
38500-83000-000 |
— | ||
| replacement | |||||
|
18
|
18
38500-60G00-000 HORN ASSY |
38500-60G00-000 |
from US $49.86 |
||
|
18
|
18
38500-70B10-000
ホーンアッシ
|
38500-70B10-000 |
— | ||
| replacement | |||||
|
18
|
18
38500-60G00-000 HORN ASSY |
38500-60G00-000 |
from US $49.86 |
||
|
19
|
19
01570-08123-000
Bolt
|
01570-08123-000 |
— | ||
| replacement | |||||
|
19
|
19
01570-0812A-000 Bolt |
01570-0812A-000 |
US $14.40 |
||
|
20
|
20
38590-50E20-000
ブザーアッシ,ウォーニング
|
38590-50E20-000 |
— | ||
| replacement | |||||
|
20
|
20
38590-50E10-000 BUZZER ASSY,WARNING |
38590-50E10-000 |
US $118.50 |
||
|
21
|
21
38850-60A10-000 RELAY ASSY |
38850-60A10-000 |
US $28.82 |
||
| replacement | |||||
|
21
|
21
38860-72G00-000 RELAY ASSYRelay, air con |
38860-72G00-000 |
from US $28.82 |
||
|
22
|
22
38610-84001-000
RELAY ASSY TURN 4 WAY
|
38610-84001-000 |
— | ||
| replacement | |||||
|
22
|
22
38610-76G00-000 RELAY,TURN SIGNAL&4WAYRelay, turnsignal & 4 way |
38610-76G00-000 |
from US $44.30 |
||
|
23
|
23
38850-60A10-000 RELAY ASSY |
38850-60A10-000 |
US $28.82 |
||
| replacement | |||||
|
23
|
23
38860-72G00-000 RELAY ASSYRelay, air con |
38860-72G00-000 |
from US $28.82 |
||
|
24
|
24
39400-84810-000
ライタアッシ,シガレット
|
39400-84810-000 |
— | ||
| replacement | |||||
|
24
|
24
39400-84811-000 LIGHTER ASSY,CIGARETTELighter assy, cigarette |
39400-84811-000 |
from US $14.40 |
||
|
25
|
25
39471-84000-000 RIM,CIGAR LIGHTER |
39471-84000-000 |
from US $2.72 |
||
|
26
|
26
09160-23007-000 WASHER(23X34X1) |
09160-23007-000 |
US $15.50 |
||
|
27
|
27
39715-70B10-000
HOLDER,SIGNAL FLARE
|
39715-70B10-000 |
— | ||
|
28
|
28
37280-80F00-000
Switch, rear fog lamp
|
37280-80F00-000 |
— | ||
|
29
|
29
38850-60A10-000 RELAY ASSY |
38850-60A10-000 |
US $28.82 |
||
| replacement | |||||
|
29
|
29
38860-72G00-000 RELAY ASSYRelay, air con |
38860-72G00-000 |
from US $28.82 |
||
|
30
|
30
38660-80F00-000
Controller, dim-dip
|
38660-80F00-000 |
— | ||
|
31
|
31
02142-06123-000
Screw
|
02142-06123-000 |
— | ||
| replacements | |||||
|
31
|
31
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
31
|
31
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
|
32
|
32
09404-06413-000
Clamp throttle
|
09404-06413-000 |
— | ||
| replacements | |||||
|
32
|
32
09404-06432-000
CLAMP(L:65)
|
09404-06432-000 |
— | ||
|
32
|
32
09404-06039-000 Clamp(L:65) |
09404-06039-000 |
from US $1.82 |
||
|
33
|
33
35186-70A01-000
LABEL,HEADLAMP INITIAL AIMING
|
35186-70A01-000 |
— | ||
