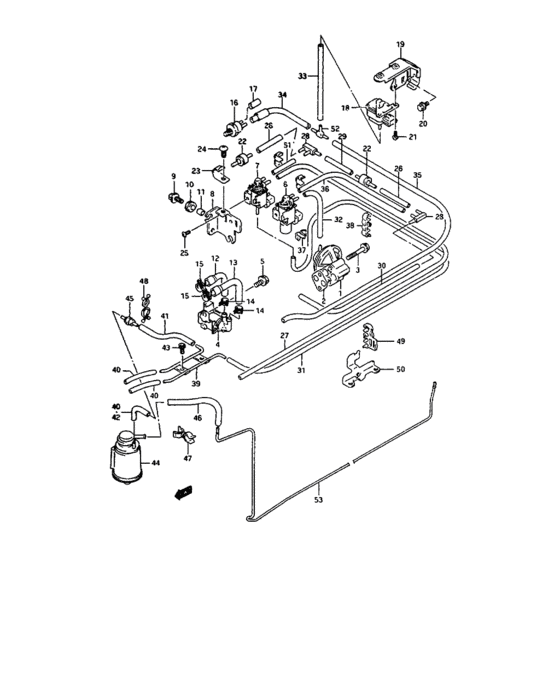

Emission control (EMISSION CONTROL) Diagram Suzuki CAPPUCCINO
- Year
- -
- Sales region
- Asia
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18520-79B50-000
VALVE,EGR
|
18520-79B50-000 |
— | ||
|
2
|
2
18529-60A00-000 GASKET,EGR VALVE |
18529-60A00-000 |
from US $0.90 |
||
|
3
|
3
01550-06453-000
Bolt
|
01550-06453-000 |
— | ||
| replacement | |||||
|
3
|
3
01550-0645A-000 Bolt |
01550-0645A-000 |
from US $0.96 |
||
|
4
|
4
18117-64D00-000
バルブ,ISC
|
18117-64D00-000 |
— | ||
| replacement | |||||
|
4
|
4
18117-64D01-000
VALVE,ISC
|
18117-64D01-000 |
— | ||
|
5
|
5
01550-08123-000
Bolt
|
01550-08123-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-0812B-000 BoltPlug, drain |
01550-0812B-000 |
from US $0.96 |
||
|
5
|
5
01550-0812A-000 Bolt |
01550-0812A-000 |
from US $0.91 |
||
|
6
|
6
18117-80F00-000
VALVE,VACUUM SWITCHING
|
18117-80F00-000 |
— | ||
|
7
|
7
18114-80F00-000 VALVE,ABV CONT |
18114-80F00-000 |
US $48 |
||
|
8
|
8
18113-80F00-000
ブラケット,コントロールバルブ
|
18113-80F00-000 |
— | ||
|
9
|
9
09136-06086-000
スクリュ,6X14
|
09136-06086-000 |
— | ||
| replacement | |||||
|
9
|
9
09136-06133-000 BOLT(6X16)Screw |
09136-06133-000 |
from US $0.77 |
||
|
10
|
10
09308-10004-000 GROMMET |
09308-10004-000 |
from US $0.90 |
||
|
11
|
11
09180-06106-000 SPACER(6.8X10X7) |
09180-06106-000 |
from US $0.92 |
||
|
12
|
12
18588-80F00-000 HOSE,ISC INLET |
18588-80F00-000 |
US $19.20 |
||
|
13
|
13
18589-80F00-000
ホース,スピードコントロールバルブ,アウトレット
|
18589-80F00-000 |
— | ||
| replacement | |||||
|
13
|
13
09359-70121-600
HOSE
|
09359-70121-600 |
— | ||
|
14
|
14
09401-11408-000
Clip
|
09401-11408-000 |
— | ||
| replacements | |||||
|
14
|
14
09401-11415-000 CLIP |
09401-11415-000 |
from US $1.06 |
||
|
14
|
14
09401-11407-000
CLIP
|
09401-11407-000 |
— | ||
|
15
|
15
09401-13413-000 ClipClip, air hose no.1 |
09401-13413-000 |
US $2.15 |
||
| replacement | |||||
|
15
|
15
09401-13417-000 CLIP |
09401-13417-000 |
from US $0.79 |
||
|
16
|
16
18133-85550-000 FILTER,GAS |
18133-85550-000 |
from US $6.93 |
||
|
17
|
17
09250-04003-000 PLUG(OD:8)Plug (od:8) |
09250-04003-000 |
from US $0.59 |
||
| replacement | |||||
|
17
|
17
07130-0510B-000 BoltBolt, sensor |
07130-0510B-000 |
from US $0.96 |
||
|
18
|
18
18590-64000-000
Sensor, pressure
|
18590-64000-000 |
— | ||
|
19
|
19
18599-80F00-000
BRACKET,PRESSURE SENSOR
|
18599-80F00-000 |
— | ||
|
20
|
20
01550-06103-000
Bolt, front
|
01550-06103-000 |
— | ||
| replacements | |||||
|
20
|
20
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.96 |
||
|
20
|
20
01550-0610A-000 Bolt |
01550-0610A-000 |
from US $0.96 |
||
|
21
|
21
02112-05103-000
Bolt
|
02112-05103-000 |
— | ||
| replacement | |||||
|
21
|
21
02112-0510A-000 SCREW |
02112-0510A-000 |
from US $0.76 |
||
|
22
|
22
95569-78040-000 VALVE,CHECKValve, check |
95569-78040-000 |
from US $15.36 |
||
|
23
|
23
18415-64D01-000
クランプ,チェックバルブ
|
18415-64D01-000 |
— | ||
| replacements | |||||
|
23
|
23
09404-08207-000
CLAMP(L:80)
|
09404-08207-000 |
— | ||
|
23
|
23
09404-08204-000
Clamp
|
09404-08204-000 |
— | ||
|
23
|
23
09404-08212-000 Clamp |
09404-08212-000 |
from US $1.22 |
||
|
24
|
24
02142-06103-000
Screw
|
02142-06103-000 |
— | ||
| replacements | |||||
|
24
|
24
02142-0610B-000 SCREWStopper, cl rlse cam shaft |
02142-0610B-000 |
from US $0.76 |
||
|
24
|
24
02142-0610A-000 SCREW |
02142-0610A-000 |
from US $0.96 |
||
|
25
|
25
02112-35083-000
Screw, cap steering lock
|
02112-35083-000 |
— | ||
| replacement | |||||
|
25
|
25
02112-3508B-000 SCREW |
02112-3508B-000 |
from US $1.87 |
||
|
26
|
26
09358-35754-300
ホース,3.5X7.5X300
L:300->50 |
09358-35754-300 |
— | ||
| replacements | |||||
|
26
|
26
09355-35754-601
HOSE(3.5X7.5X601)
L:300->50 |
09355-35754-601 |
— | ||
|
26
|
26
09355-35006-601 Hose(3.5X7.5X601)L:300->50 |
09355-35006-601 |
from US $5.78 |
||
|
27
|
27
09358-35754-600
ホース,3.5X7.5X600
L:600->320 |
09358-35754-600 |
— | ||
| replacements | |||||
|
27
|
27
09355-35754-601
HOSE(3.5X7.5X601)
L:600->320 |
09355-35754-601 |
— | ||
|
27
|
27
09355-35006-601 Hose(3.5X7.5X601)L:600->320 |
09355-35006-601 |
from US $5.78 |
||
|
28
|
28
09367-04009-000 JOINTJoint, 3 way |
09367-04009-000 |
from US $1.67 |
||
|
29
|
29
09358-35754-300
ホース,3.5X7.5X300
L:300->40 |
09358-35754-300 |
— | ||
| replacements | |||||
|
29
|
29
09355-35754-601
HOSE(3.5X7.5X601)
L:300->40 |
09355-35754-601 |
— | ||
|
29
|
29
09355-35006-601 Hose(3.5X7.5X601)L:300->40 |
09355-35006-601 |
from US $5.78 |
||
|
30
|
30
09358-35754-300
ホース,3.5X7.5X300
L:300->180 |
09358-35754-300 |
— | ||
| replacements | |||||
|
30
|
30
09355-35754-601
HOSE(3.5X7.5X601)
L:300->180 |
09355-35754-601 |
— | ||
|
30
|
30
09355-35006-601 Hose(3.5X7.5X601)L:300->180 |
09355-35006-601 |
from US $5.78 |
||
|
31
|
31
09358-35754-600
ホース,3.5X7.5X600
L:600->380 |
09358-35754-600 |
— | ||
| replacements | |||||
|
31
|
31
09355-35754-601
HOSE(3.5X7.5X601)
L:600->380 |
09355-35754-601 |
— | ||
|
31
|
31
09355-35006-601 Hose(3.5X7.5X601)L:600->380 |
09355-35006-601 |
from US $5.78 |
||
|
32
|
32
09358-35754-300
ホース,3.5X7.5X300
L:300->95 |
09358-35754-300 |
— | ||
| replacements | |||||
|
32
|
32
09355-35754-601
HOSE(3.5X7.5X601)
L:300->95 |
09355-35754-601 |
— | ||
|
32
|
32
09355-35006-601 Hose(3.5X7.5X601)L:300->95 |
09355-35006-601 |
from US $5.78 |
||
|
33
|
33
09358-35754-300
ホース,3.5X7.5X300
L:300->115 |
09358-35754-300 |
— | ||
| replacements | |||||
|
33
|
33
09355-35754-601
HOSE(3.5X7.5X601)
L:300->115 |
09355-35754-601 |
— | ||
|
33
|
33
09355-35006-601 Hose(3.5X7.5X601)L:300->115 |
09355-35006-601 |
from US $5.78 |
||
|
34
|
34
18466-80F00-000
Hose, filter vacuum
|
18466-80F00-000 |
— | ||
| replacement | |||||
|
34
|
34
18564-63D00-000
HOSE,VACUUM
|
18564-63D00-000 |
— | ||
|
35
|
35
09358-35754-300
ホース,3.5X7.5X300
L:300->240 |
09358-35754-300 |
— | ||
| replacements | |||||
|
35
|
35
09355-35754-601
HOSE(3.5X7.5X601)
L:300->240 |
09355-35754-601 |
— | ||
|
35
|
35
09355-35006-601 Hose(3.5X7.5X601)L:300->240 |
09355-35006-601 |
from US $5.78 |
||
|
36
|
36
09358-35754-300
ホース,3.5X7.5X300
L:300->100 |
09358-35754-300 |
— | ||
| replacements | |||||
|
36
|
36
09355-35754-601
HOSE(3.5X7.5X601)
L:300->100 |
09355-35754-601 |
— | ||
|
36
|
36
09355-35006-601 Hose(3.5X7.5X601)L:300->100 |
09355-35006-601 |
from US $5.78 |
||
|
37
|
37
09408-00033-000 CLAMPClamp |
09408-00033-000 |
from US $1.60 |
||
|
38
|
38
09408-00035-000 CLIPClamp |
09408-00035-000 |
from US $1.10 |
||
|
39
|
39
18410-80F00-000
パイプ,パージ
|
18410-80F00-000 |
— | ||
|
40
|
40
09358-35754-300
ホース,3.5X7.5X300
L:300->40 |
09358-35754-300 |
— | ||
| replacements | |||||
|
40
|
40
09355-35754-601
HOSE(3.5X7.5X601)
L:300->40 |
09355-35754-601 |
— | ||
|
40
|
40
09355-35006-601 Hose(3.5X7.5X601)L:300->40 |
09355-35006-601 |
from US $5.78 |
||
|
41
|
41
09358-35754-300
ホース,3.5X7.5X300
L:300->65 |
09358-35754-300 |
— | ||
| replacements | |||||
|
41
|
41
09355-35754-601
HOSE(3.5X7.5X601)
L:300->65 |
09355-35754-601 |
— | ||
|
41
|
41
09355-35006-601 Hose(3.5X7.5X601)L:300->65 |
09355-35006-601 |
from US $5.78 |
||
|
42
|
42
09358-35754-300
ホース,3.5X7.5X300
L:300->95 |
09358-35754-300 |
— | ||
| replacements | |||||
|
42
|
42
09355-35754-601
HOSE(3.5X7.5X601)
L:300->95 |
09355-35754-601 |
— | ||
|
42
|
42
09355-35006-601 Hose(3.5X7.5X601)L:300->95 |
09355-35006-601 |
from US $5.78 |
||
|
43
|
43
07110-06103-000
ボルト
|
07110-06103-000 |
— | ||
| replacement | |||||
|
43
|
43
07130-0610B-000 Bolt |
07130-0610B-000 |
from US $0.96 |
||
|
44
|
44
18560-82031-000
CANISTER
SEE NOTE |
18560-82031-000 |
— | ||
|
45
|
45
18565-84150-000
バルブ,キャニスタパージ
|
18565-84150-000 |
— | ||
| replacement | |||||
|
45
|
45
18565-84151-000 VALVE,CANISTER PURGE |
18565-84151-000 |
US $21.60 |
||
|
46
|
46
09358-54116-300
New Genuine Part
L:300->195 |
09358-54116-300 |
— | ||
| replacement | |||||
|
46
|
46
09355-54115-600 HOSE(5.4X11.4X600)Hose, vacuum L:300->195 |
09355-54115-600 |
from US $7.20 |
||
|
47
|
47
09408-00054-000 CLAMP |
09408-00054-000 |
US $19.10 |
||
|
48
|
48
09408-00013-000 CLAMPClamp |
09408-00013-000 |
US $1.92 |
||
|
49
|
49
33884-86510-000 CLAMP |
33884-86510-000 |
from US $0.97 |
||
|
50
|
50
18561-80F00-000
ブラケット,ブーストクリップ
|
18561-80F00-000 |
— | ||
|
51
|
51
09358-35754-300
ホース,3.5X7.5X300
L:300->35 |
09358-35754-300 |
— | ||
| replacements | |||||
|
51
|
51
09355-35754-601
HOSE(3.5X7.5X601)
L:300->35 |
09355-35754-601 |
— | ||
|
51
|
51
09355-35006-601 Hose(3.5X7.5X601)L:300->35 |
09355-35006-601 |
from US $5.78 |
||
|
52
|
52
09367-04002-000 CONNECTOR |
09367-04002-000 |
from US $3.51 |
||
|
53
|
53
15865-80F00-000 PIPE,CANISTER INLET |
15865-80F00-000 |
US $35.88 |
||
