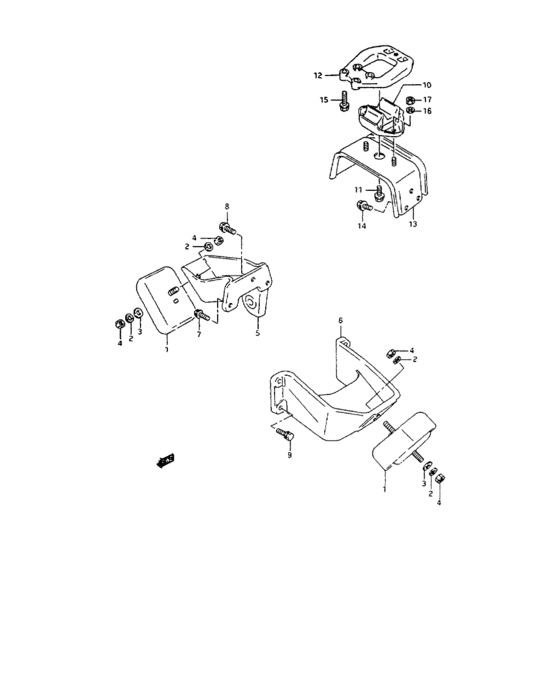

Engine mounting (ENGINE MOUNTING) Diagram Suzuki CAPPUCCINO
- Year
- -
- Sales region
- Asia
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11610-80F00-000 MOUNTING,ENG FR |
11610-80F00-000 |
US $135.20 |
||
| replacement | |||||
|
1
|
1
11610-82C00-000 MOUNTING,ENG FR |
11610-82C00-000 |
from US $48.22 |
||
|
2
|
2
08321-01103-000
Washer
|
08321-01103-000 |
— | ||
| replacements | |||||
|
2
|
2
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.96 |
||
|
2
|
2
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.96 |
||
|
3
|
3
09160-10094-000 WASHER(10.5X30X3.2) |
09160-10094-000 |
from US $1.12 |
||
|
4
|
4
08310-00103-000
Nut
|
08310-00103-000 |
— | ||
| replacements | |||||
|
4
|
4
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.83 |
||
|
4
|
4
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
|
5
|
5
11640-80F00-000
BRACKET,ENG FR MTG,R
|
11640-80F00-000 |
— | ||
|
6
|
6
11651-80F00-000
Bracket,engine front mtg,l
|
11651-80F00-000 |
— | ||
|
7
|
7
09117-08052-000 BOLT(8X21.5) |
09117-08052-000 |
US $12.50 |
||
|
8
|
8
01570-10253-000
ボルト
|
01570-10253-000 |
— | ||
| replacement | |||||
|
8
|
8
01570-1025A-000 Bolt |
01570-1025A-000 |
US $1.12 |
||
|
9
|
9
01570-08303-000
Bolt, rear
|
01570-08303-000 |
— | ||
| replacement | |||||
|
9
|
9
01570-0830A-000 Bolt |
01570-0830A-000 |
US $1.12 |
||
|
10
|
10
11710-80F00-000 MOUNTING,ENG RR |
11710-80F00-000 |
US $113.60 |
||
|
11
|
11
01580-08203-000
Bolt, rear
|
01580-08203-000 |
— | ||
| replacement | |||||
|
11
|
11
01580-0820A-000 Bolt |
01580-0820A-000 |
from US $0.91 |
||
|
12
|
12
11741-80F00-000
ブラケット,エンジンリヤマウンチング
|
11741-80F00-000 |
— | ||
|
13
|
13
11761-80F00-000
Bracket,eng rear mtg frm side
|
11761-80F00-000 |
— | ||
|
14
|
14
01550-08163-000
Bolt, holder
|
01550-08163-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0816B-000 Bolt |
01550-0816B-000 |
from US $0.91 |
||
|
14
|
14
01550-0816A-000 BoltBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
|
15
|
15
01570-08303-000
Bolt, rear
|
01570-08303-000 |
— | ||
| replacement | |||||
|
15
|
15
01570-0830A-000 Bolt |
01570-0830A-000 |
US $1.12 |
||
|
16
|
16
08321-01083-000
Lock washer
|
08321-01083-000 |
— | ||
| replacements | |||||
|
16
|
16
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
16
|
16
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.90 |
||
|
17
|
17
08310-00083-000
Nut
|
08310-00083-000 |
— | ||
| replacements | |||||
|
17
|
17
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.96 |
||
|
17
|
17
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
