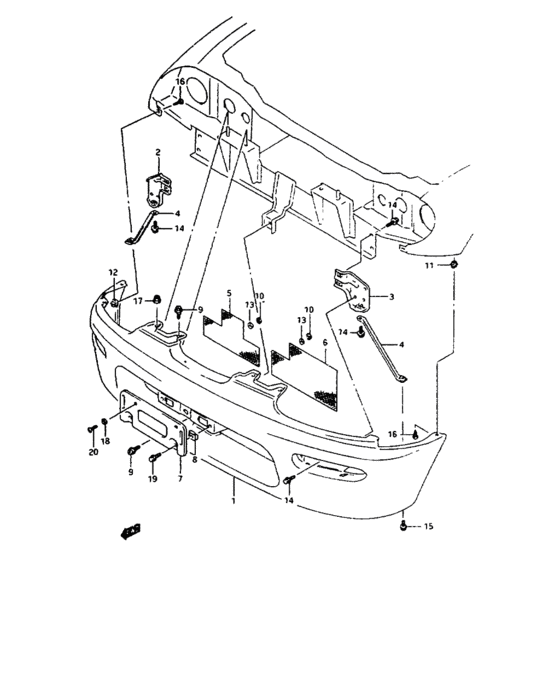

Front bumper (FRONT BUMPER) Diagram Suzuki CAPPUCCINO
- Year
- -
- Sales region
- Asia
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71711-80F00-799
Bumper, front
PAINT TO MATCH |
71711-80F00-799 |
— | ||
| replacement | |||||
|
1
|
1
71711-80F01-799 BUMPER,FR(PRIMARY)PAINT TO MATCH |
71711-80F01-799 |
US $1,824 |
||
|
2
|
2
71712-80F00-000 STAY,FRONT BUMPER,R |
71712-80F00-000 |
US $52.80 |
||
|
3
|
3
71713-80F00-000 STAY,FRONT BUMPER,L |
71713-80F00-000 |
US $52.80 |
||
|
4
|
4
71714-80F00-000 STAY,FRONT BUMPER LWR |
71714-80F00-000 |
US $36.80 |
||
|
5
|
5
71717-80F00-000
Net, front bumper rh
|
71717-80F00-000 |
— | ||
| replacement | |||||
|
5
|
5
71717-80F0V-000 NET,FR BUMPER,R |
71717-80F0V-000 |
US $104.13 |
||
|
6
|
6
71718-80F00-000
Net, front bumper lh
|
71718-80F00-000 |
— | ||
| replacement | |||||
|
6
|
6
71718-80F01-000 NET,FR BUMPER,L |
71718-80F01-000 |
US $104.13 |
||
|
7
|
7
71720-80F00-000
Bracket, license plate
|
71720-80F00-000 |
— | ||
| replacement | |||||
|
7
|
7
71720-80F01-000
BRACKET,LICENSE PLATE
|
71720-80F01-000 |
— | ||
|
8
|
8
71812-82010-000
Nut
|
71812-82010-000 |
— | ||
| replacement | |||||
|
8
|
8
09148-06021-000 NUTNut, air cleaner |
09148-06021-000 |
from US $1.34 |
||
|
9
|
9
09111-06061-000
Bolt,6x16.5
|
09111-06061-000 |
— | ||
| replacement | |||||
|
9
|
9
09111-06094-000 BOLT(6X16.5) |
09111-06094-000 |
from US $0.74 |
||
|
10
|
10
09148-04010-000 NUTEcrou |
09148-04010-000 |
from US $0.54 |
||
|
11
|
11
09148-05018-000 NUT |
09148-05018-000 |
from US $0.63 |
||
|
12
|
12
09148-05040-000 NUT |
09148-05040-000 |
US $16.90 |
||
|
13
|
13
09161-04008-000 WASHER(4X12X2) |
09161-04008-000 |
from US $0.36 |
||
|
14
|
14
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0612B-000 BoltBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
14
|
14
01550-0612A-000 Bolt |
01550-0612A-000 |
from US $0.76 |
||
|
15
|
15
01550-06163-000
Bolt
|
01550-06163-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0616B-000 Bolt |
01550-0616B-000 |
from US $0.76 |
||
|
15
|
15
01550-0616A-000 Bolt |
01550-0616A-000 |
from US $0.76 |
||
|
16
|
16
03241-05163-000
Screw, bracket
|
03241-05163-000 |
— | ||
| replacement | |||||
|
16
|
16
03241-0516A-000 SCREW |
03241-0516A-000 |
from US $0.76 |
||
|
17
|
17
08361-25063-000
Nut
|
08361-25063-000 |
— | ||
| replacement | |||||
|
17
|
17
08361-2506A-000 NUT |
08361-2506A-000 |
US $0.80 |
||
|
18
|
18
09160-06079-000 WASHER(6.5X16X1.2) |
09160-06079-000 |
from US $1.12 |
||
| replacement | |||||
|
18
|
18
09160-06052-000 WASHER(6.5X16X1.2)Washer (6.5x16x1.2) |
09160-06052-000 |
from US $1.44 |
||
|
19
|
19
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
19
|
19
01550-0612B-000 BoltBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
19
|
19
01550-0612A-000 Bolt |
01550-0612A-000 |
from US $0.76 |
||
|
20
|
20
02112-06083-000
Screw
|
02112-06083-000 |
— | ||
| replacement | |||||
|
20
|
20
02112-0608A-000 SCREW |
02112-0608A-000 |
from US $0.91 |
||
