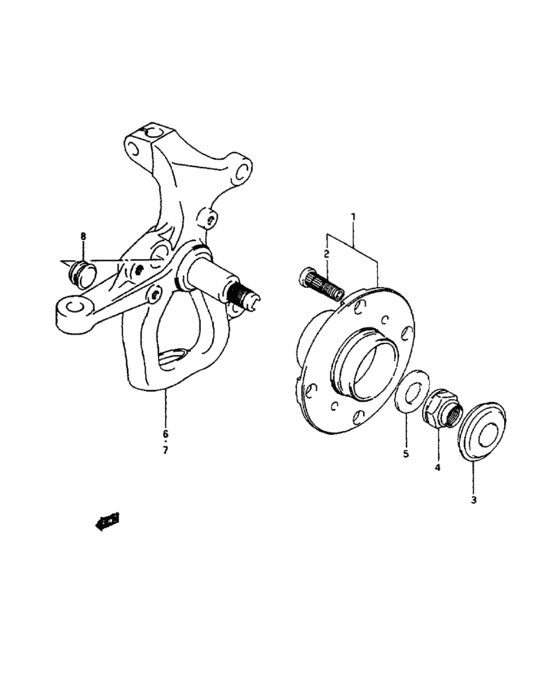

Front wheel hub (FRONT WHEEL HUB) Diagram Suzuki CAPPUCCINO
- Year
- -
- Sales region
- Asia
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43402-80F00-000
Hub assy, front wheel
|
43402-80F00-000 |
— | ||
| replacement | |||||
|
1
|
1
43402-80F11-000 HUB ASSY,FR WHL |
43402-80F11-000 |
US $621.68 |
||
|
2
|
2
09119-12012-000 BOLT(12X38) |
09119-12012-000 |
from US $1.13 |
||
|
3
|
3
43241-64B00-000
Cap,spindle
|
43241-64B00-000 |
— | ||
| replacement | |||||
|
3
|
3
43241-64B01-000 CAP,SPINDLE |
43241-64B01-000 |
US $8.13 |
||
|
4
|
4
09159-18013-000 NUT |
09159-18013-000 |
from US $4.64 |
||
|
5
|
5
09160-18025-000 WASHER(18X38X4) |
09160-18025-000 |
from US $1.13 |
||
|
6
|
6
45100-80810-000
ナックルセット,ステアリング,ライト
|
45100-80810-000 |
— | ||
| replacements | |||||
|
6
|
6
09100-10222-000 BOLT(10X50) |
09100-10222-000 |
from US $1.98 |
||
|
6
|
6
09159-10048-000 NUT |
09159-10048-000 |
from US $1.22 |
||
|
6
|
6
09160-10142-000 WASHER(10X20X2.3)Washer, crankcase bolt |
09160-10142-000 |
from US $1.12 |
||
|
6
|
6
45100-80811-000 KNUCKLE SET,STRG,R |
45100-80811-000 |
US $721.60 |
||
|
6
|
6
09160-10085-000
Washer, rear
|
09160-10085-000 |
— | ||
|
7
|
7
45100-80020-000
Knuckle set, steering lh
|
45100-80020-000 |
— | ||
|
8
|
8
09250-19001-000 CAP(OD:20.5) |
09250-19001-000 |
from US $2.16 |
||
