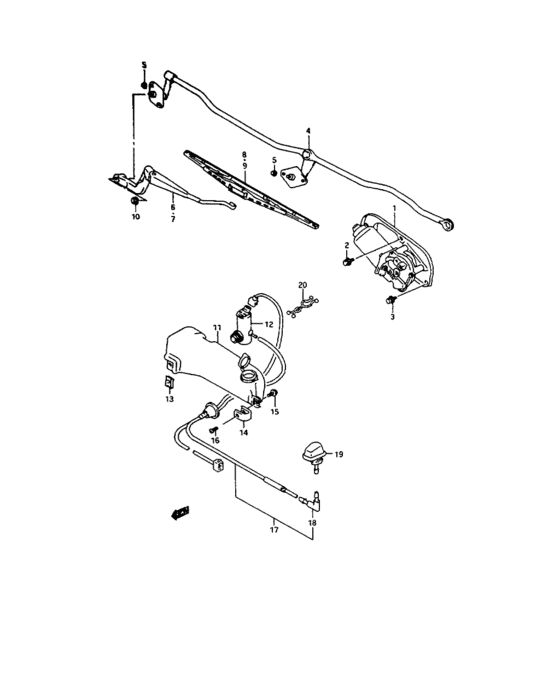

Front wind shield wiper and washer (FRONT WIND SHIELD WIPER AND WASHER) Diagram Suzuki CAPPUCCINO
- Year
- -
- Sales region
- Asia
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38101-80F00-000
MOTOR&BRACKET ASSY,WIPER
|
38101-80F00-000 |
— | ||
|
2
|
2
09115-06001-000 Bolt, lhBolt (6x16) |
09115-06001-000 |
US $0.86 |
||
| replacement | |||||
|
2
|
2
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
from US $0.86 |
||
|
3
|
3
01580-06123-000
Bolt
|
01580-06123-000 |
— | ||
| replacements | |||||
|
3
|
3
01580-0612B-000 Bolt |
01580-0612B-000 |
US $0.96 |
||
|
3
|
3
01580-0612A-000 Bolt |
01580-0612A-000 |
from US $0.91 |
||
|
4
|
4
38102-80F00-000
LINK ASSY,WIPER
|
38102-80F00-000 |
— | ||
|
5
|
5
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
5
|
5
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
6
|
6
38330-80F00-000
ARM ASSY,WIPER,R
|
38330-80F00-000 |
— | ||
|
7
|
7
38310-80F00-000
ARM ASSY,WIPER,L
|
38310-80F00-000 |
— | ||
|
8
|
8
38340-65B10-000 BLADE ASSY,WIPER |
38340-65B10-000 |
US $44.90 |
||
|
9
|
9
38340-80F00-000
BLADE ASSY,WIPER,L
|
38340-80F00-000 |
— | ||
|
10
|
10
08313-20083-000
Nut
|
08313-20083-000 |
— | ||
| replacements | |||||
|
10
|
10
08313-2008B-000 NUT |
08313-2008B-000 |
from US $3.94 |
||
|
10
|
10
08313-2008A-000 NUT |
08313-2008A-000 |
from US $0.91 |
||
|
11
|
11
38450-80F00-000 TANK,WASHER |
38450-80F00-000 |
US $85.60 |
||
|
12
|
12
38410-80F00-000
PUMP ASSY,WASHER
|
38410-80F00-000 |
— | ||
|
13
|
13
38462-80F00-000
NUT,WASHER TANK
|
38462-80F00-000 |
— | ||
|
14
|
14
38461-80F00-000
BRACKET,WASHER TANK
|
38461-80F00-000 |
— | ||
|
15
|
15
01580-06163-000
Bolt
|
01580-06163-000 |
— | ||
| replacement | |||||
|
15
|
15
01580-0616A-000 Bolt |
01580-0616A-000 |
from US $0.96 |
||
|
16
|
16
02142-06123-000
Screw
|
02142-06123-000 |
— | ||
| replacements | |||||
|
16
|
16
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
16
|
16
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
|
17
|
17
38832-80F01-000 HOSE ASSY,WASHER |
38832-80F01-000 |
US $50.05 |
||
|
18
|
18
38496-80F00-000
ジョイント,ウォッシャホース
|
38496-80F00-000 |
— | ||
|
19
|
19
38480-80F01-000
ノズルアッシ,ウォッシャ
|
38480-80F01-000 |
— | ||
| replacement | |||||
|
19
|
19
38480-70B00-000 NOZZLE,WASHER |
38480-70B00-000 |
US $32 |
||
|
20
|
20
09408-00013-000 CLAMPClamp |
09408-00013-000 |
US $1.92 |
||
