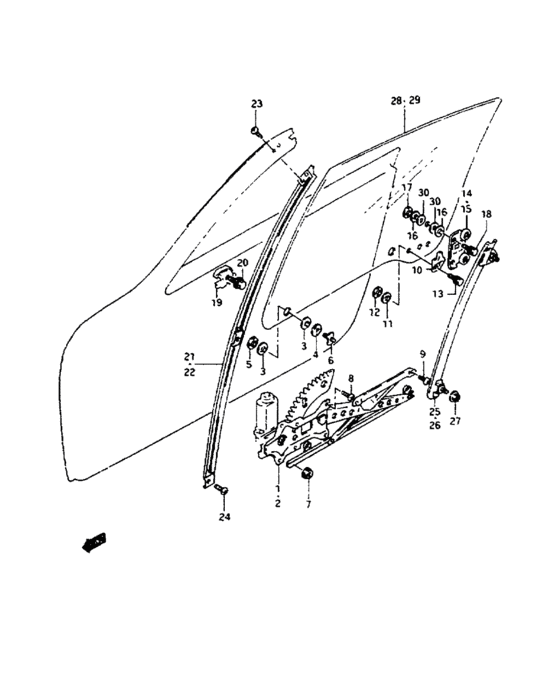

Window regulator (WINDOW REGULATOR) Diagram Suzuki CAPPUCCINO
- Year
- -
- Sales region
- Asia
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
83401-80F00-000
REGULATOR ASSY,FR WINDOW,R
|
83401-80F00-000 |
— | ||
|
2
|
2
83402-80F00-000
REGULATOR ASSY,FR WINDOW,L
|
83402-80F00-000 |
— | ||
|
3
|
3
83517-50D00-000
PACKING
|
83517-50D00-000 |
— | ||
|
4
|
4
83519-50D00-000
スペーサ,ウィンドレギュレータボトム
|
83519-50D00-000 |
— | ||
|
5
|
5
83516-50D00-000 NUT,DOOR STABILIZER |
83516-50D00-000 |
US $4.67 |
||
|
6
|
6
83518-50D00-000 BOLT,WINDOW RGLTR BOTTOM |
83518-50D00-000 |
US $5.96 |
||
|
7
|
7
08316-20063-000
Nut
|
08316-20063-000 |
— | ||
| replacement | |||||
|
7
|
7
08316-2006A-000 NUT |
08316-2006A-000 |
from US $0.76 |
||
|
8
|
8
02112-76103-000
Screw
|
02112-76103-000 |
— | ||
| replacement | |||||
|
8
|
8
02112-7610A-000 SCREW |
02112-7610A-000 |
from US $3.59 |
||
|
9
|
9
02142-06103-000
Screw
|
02142-06103-000 |
— | ||
| replacements | |||||
|
9
|
9
02142-0610B-000 SCREWStopper, cl rlse cam shaft |
02142-0610B-000 |
from US $0.76 |
||
|
9
|
9
02142-0610A-000 SCREW |
02142-0610A-000 |
from US $0.96 |
||
|
10
|
10
83512-50D00-000 STABILIZER,DOOR GLASS MALE |
83512-50D00-000 |
from US $4.86 |
||
|
11
|
11
83517-50D00-000
PACKING
|
83517-50D00-000 |
— | ||
|
12
|
12
83516-50D00-000 NUT,DOOR STABILIZER |
83516-50D00-000 |
US $4.67 |
||
|
13
|
13
01570-06123-000
Bolt
|
01570-06123-000 |
— | ||
| replacements | |||||
|
13
|
13
01570-0612B-000 BoltBolt, upper |
01570-0612B-000 |
US $0.96 |
||
|
13
|
13
01570-0612A-000 BoltBolt |
01570-0612A-000 |
from US $0.96 |
||
|
14
|
14
83515-50000-000
Bracket sub assy, rr sash rh
|
83515-50000-000 |
— | ||
|
15
|
15
83525-50000-000
Bracket sub assy, rr sash lh
|
83525-50000-000 |
— | ||
|
16
|
16
83517-50000-000
Packing
|
83517-50000-000 |
— | ||
|
17
|
17
83516-50000-000
Nut, rear bracket
|
83516-50000-000 |
— | ||
|
18
|
18
01570-06123-000
Bolt
|
01570-06123-000 |
— | ||
| replacements | |||||
|
18
|
18
01570-0612B-000 BoltBolt, upper |
01570-0612B-000 |
US $0.96 |
||
|
18
|
18
01570-0612A-000 BoltBolt |
01570-0612A-000 |
from US $0.96 |
||
|
19
|
19
83513-80F00-000
Stopper,fr door window up
|
83513-80F00-000 |
— | ||
|
20
|
20
22791-61D00-000
ボルト,トルクコンバータ
|
22791-61D00-000 |
— | ||
| replacements | |||||
|
20
|
20
09103-08421-000 BOLT(8X9.5) |
09103-08421-000 |
from US $1.28 |
||
|
20
|
20
09103-08335-000
Bolt
|
09103-08335-000 |
— | ||
|
21
|
21
81710-80F00-000
SASH,FR DOOR CENTER,R
|
81710-80F00-000 |
— | ||
|
22
|
22
81730-80F00-000 SASH,FR DOOR CENTER,L |
81730-80F00-000 |
US $56.67 |
||
|
23
|
23
02122-04083-000
SCREW
|
02122-04083-000 |
— | ||
| replacement | |||||
|
23
|
23
02122-0408A-000 SCREW |
02122-0408A-000 |
from US $0.76 |
||
|
24
|
24
02112-76103-000
Screw
|
02112-76103-000 |
— | ||
| replacement | |||||
|
24
|
24
02112-7610A-000 SCREW |
02112-7610A-000 |
from US $3.59 |
||
|
25
|
25
81720-80F00-000 SASH,FR DOOR REAR,R |
81720-80F00-000 |
US $50.05 |
||
|
26
|
26
81740-80F00-000 SASH,FR DOOR REAR,L |
81740-80F00-000 |
US $50.05 |
||
|
27
|
27
08361-15083-000
Nut
|
08361-15083-000 |
— | ||
| replacement | |||||
|
27
|
27
08361-1508A-000 NUT |
08361-1508A-000 |
from US $3.20 |
||
|
28
|
28
84531-80F10-000
ガラス,フロントドアウィンド,ライト(ブルー)
|
84531-80F10-000 |
— | ||
| replacement | |||||
|
28
|
28
84531-80F30-000 GLASS,FR DR WDO,R |
84531-80F30-000 |
US $160.08 |
||
|
29
|
29
84536-80F10-000
ガラス,フロントドアウィンド,レフト(ブルー)
|
84536-80F10-000 |
— | ||
| replacement | |||||
|
29
|
29
84536-80F30-000
GLASS,FR DR WDO,L
|
84536-80F30-000 |
— | ||
|
30
|
30
83526-80F00-000
CUSHION,REAR BRACKET
|
83526-80F00-000 |
— | ||
