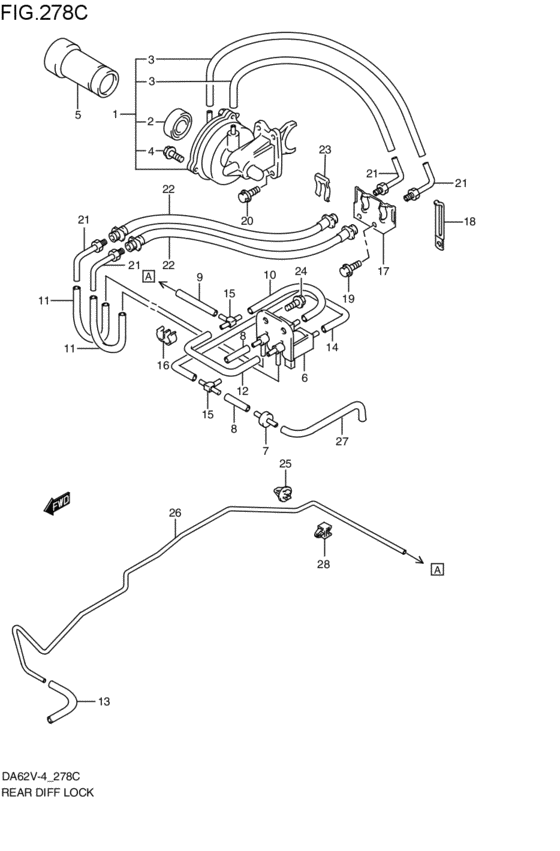

rear differential locking device (KUG,KUGM; 2001-08-01~2002-12-01) Diagram Suzuki CARRY/EVERY
- Year
- 2001 - 2011
- Sales region
- Japan
- supercharge
- 4V
- drive
- 4WD
- transmission
- MT
- grade
- KUG
- number of the gears
- 5MT
- body
- T
- air bag
- AB-N
- abs
- ABS-N
- power steering
- PWST-N
- differential lock
- DFLK
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27900-79A00-000 ACTUATOR ASSY,DIFF LOCK SHIFTKUG,KUGM; 2001-08-01~2002-12-01 |
27900-79A00-000 |
US $342.40 |
||
|
2
|
2
09282-14005-000 SEAL,OIL(14X24X7)KUG,KUGM; 2001-08-01~2002-12-01 |
09282-14005-000 |
US $5.26 |
||
|
3
|
3
09355-35754-601
HOSE(3.5X7.5X601)
L:601>220; KUG,KUGM; 2001-08-01~2002-12-01 |
09355-35754-601 |
— | ||
| replacement | |||||
|
3
|
3
09355-35006-601 Hose(3.5X7.5X601)L:601>220; KUG,KUGM; 2001-08-01~2002-12-01 |
09355-35006-601 |
from US $5.78 |
||
|
4
|
4
01550-06123-000
Bolt
KUG,KUGM; 2001-08-01~2002-12-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0612B-000 BoltBolt, clamp KUG,KUGM; 2001-08-01~2002-12-01 |
01550-0612B-000 |
from US $0.76 |
||
|
4
|
4
01550-0612A-000 BoltKUG,KUGM; 2001-08-01~2002-12-01 |
01550-0612A-000 |
from US $0.76 |
||
|
5
|
5
27911-85600-000 SLEEVE,DIFF LOCKKUG,KUGM; 2001-08-01~2002-12-01 |
27911-85600-000 |
US $60.35 |
||
|
6
|
6
27951-85600-000 VALVE,VACUUM SWITCHKUG,KUGM; 2001-08-01~2002-12-01 |
27951-85600-000 |
from US $120.71 |
||
|
7
|
7
27965-85400-000 FILTER,VSVFilter assy, vsv KUG,KUGM; 2001-08-01~2002-12-01 |
27965-85400-000 |
from US $10.40 |
||
|
8
|
8
09355-35754-601
HOSE(3.5X7.5X601)
L:601>40; KUG,KUGM; 2001-08-01~2002-12-01 |
09355-35754-601 |
— | ||
| replacement | |||||
|
8
|
8
09355-35006-601 Hose(3.5X7.5X601)L:601>40; KUG,KUGM; 2001-08-01~2002-12-01 |
09355-35006-601 |
from US $5.78 |
||
|
9
|
9
09355-35754-601
HOSE(3.5X7.5X601)
L:601>100; KUG,KUGM; 2001-08-01~2002-12-01 |
09355-35754-601 |
— | ||
| replacement | |||||
|
9
|
9
09355-35006-601 Hose(3.5X7.5X601)L:601>100; KUG,KUGM; 2001-08-01~2002-12-01 |
09355-35006-601 |
from US $5.78 |
||
|
10
|
10
09355-35754-601
HOSE(3.5X7.5X601)
L:601>120; KUG,KUGM; 2001-08-01~2002-12-01 |
09355-35754-601 |
— | ||
| replacement | |||||
|
10
|
10
09355-35006-601 Hose(3.5X7.5X601)L:601>120; KUG,KUGM; 2001-08-01~2002-12-01 |
09355-35006-601 |
from US $5.78 |
||
|
11
|
11
09355-35754-601
HOSE(3.5X7.5X601)
L:601>130; KUG,KUGM; 2001-08-01~2002-12-01 |
09355-35754-601 |
— | ||
| replacement | |||||
|
11
|
11
09355-35006-601 Hose(3.5X7.5X601)L:601>130; KUG,KUGM; 2001-08-01~2002-12-01 |
09355-35006-601 |
from US $5.78 |
||
|
12
|
12
09355-35754-601
HOSE(3.5X7.5X601)
L:601>150; KUG,KUGM; 2001-08-01~2002-12-01 |
09355-35754-601 |
— | ||
| replacement | |||||
|
12
|
12
09355-35006-601 Hose(3.5X7.5X601)L:601>150; KUG,KUGM; 2001-08-01~2002-12-01 |
09355-35006-601 |
from US $5.78 |
||
|
13
|
13
09355-35754-601
HOSE(3.5X7.5X601)
L:601>200; KUG,KUGM; 2001-08-01~2002-12-01 |
09355-35754-601 |
— | ||
| replacement | |||||
|
13
|
13
09355-35006-601 Hose(3.5X7.5X601)L:601>200; KUG,KUGM; 2001-08-01~2002-12-01 |
09355-35006-601 |
from US $5.78 |
||
|
14
|
14
09355-35754-601
HOSE(3.5X7.5X601)
L:601>210; KUG,KUGM; 2001-08-01~2002-12-01 |
09355-35754-601 |
— | ||
| replacement | |||||
|
14
|
14
09355-35006-601 Hose(3.5X7.5X601)L:601>210; KUG,KUGM; 2001-08-01~2002-12-01 |
09355-35006-601 |
from US $5.78 |
||
|
15
|
15
09367-04002-000 CONNECTORKUG,KUGM; 2001-08-01~2002-12-01 |
09367-04002-000 |
from US $3.51 |
||
|
16
|
16
09408-00033-000 CLAMPClamp KUG,KUGM; 2001-08-01~2002-12-01 |
09408-00033-000 |
from US $1.60 |
||
|
17
|
17
27961-85600-000 BRACKET,DIFF LOCK VACUUM HOSEKUG,KUGM; 2001-08-01~2002-12-01 |
27961-85600-000 |
US $3.28 |
||
|
18
|
18
09404-08206-000 CLAMP(L:65 T:0.8)Clamp KUG,KUGM; 2001-08-01~2002-12-01 |
09404-08206-000 |
from US $1.13 |
||
|
19
|
19
01550-08123-000
Bolt
KUG,KUGM; 2001-08-01~2002-12-01 |
01550-08123-000 |
— | ||
| replacements | |||||
|
19
|
19
01550-0812B-000 BoltPlug, drain KUG,KUGM; 2001-08-01~2002-12-01 |
01550-0812B-000 |
from US $0.96 |
||
|
19
|
19
01550-0812A-000 BoltKUG,KUGM; 2001-08-01~2002-12-01 |
01550-0812A-000 |
from US $0.91 |
||
|
20
|
20
01550-08163-000
Bolt, holder
KUG,KUGM; 2001-08-01~2002-12-01 |
01550-08163-000 |
— | ||
| replacements | |||||
|
20
|
20
01550-0816B-000 BoltKUG,KUGM; 2001-08-01~2002-12-01 |
01550-0816B-000 |
from US $0.91 |
||
|
20
|
20
01550-0816A-000 BoltBolt, rear KUG,KUGM; 2001-08-01~2002-12-01 |
01550-0816A-000 |
from US $0.91 |
||
|
21
|
21
27962-85600-000 PIPE,DIFF LOCK VACUUM NO.2KUG,KUGM; 2001-08-01~2002-12-01 |
27962-85600-000 |
US $3.64 |
||
|
22
|
22
27963-79A00-000
ホース,バキューム
KUG,KUGM; 2001-08-01~2002-12-01 |
27963-79A00-000 |
— | ||
| replacement | |||||
|
22
|
22
27963-79A0V-000
New Genuine Part
KUG,KUGM; 2001-08-01~2002-12-01 |
27963-79A0V-000 |
— | ||
|
23
|
23
09383-13001-000 E RINGKUG,KUGM; 2001-08-01~2002-12-01 |
09383-13001-000 |
from US $0.70 |
||
| replacement | |||||
|
23
|
23
09383-13003-000 E-RINGKUG,KUGM; 2001-08-01~2002-12-01 |
09383-13003-000 |
from US $1.46 |
||
|
24
|
24
02162-06123-000
Bolt (6x12)
KUG,KUGM; 2001-08-01~2002-12-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
24
|
24
02162-0612B-000 SCREWBolt KUG,KUGM; 2001-08-01~2002-12-01 |
02162-0612B-000 |
from US $0.80 |
||
|
24
|
24
02162-0612A-000 SCREWBolt, bracket KUG,KUGM; 2001-08-01~2002-12-01 |
02162-0612A-000 |
from US $0.79 |
||
|
25
|
25
27761-79A00-000 CLAMP,DIFF LOCK PIPEKUG,KUGM; 2001-08-01~2002-12-01 |
27761-79A00-000 |
US $2.32 |
||
|
26
|
26
27964-66H00-000
パイプ,ディファレンシャルロック
KUG,KUGM; 2001-08-01~2002-12-01 |
27964-66H00-000 |
— | ||
|
27
|
27
09355-35754-601
HOSE(3.5X7.5X601)
L:601>340; KUG,KUGM; 2001-08-01~2002-12-01 |
09355-35754-601 |
— | ||
| replacement | |||||
|
27
|
27
09355-35006-601 Hose(3.5X7.5X601)L:601>340; KUG,KUGM; 2001-08-01~2002-12-01 |
09355-35006-601 |
from US $5.78 |
||
|
28
|
28
27762-79A00-000 CLAMP,DIFF LOCK PIPE NO.2KUG,KUGM; 2001-08-01~2002-12-01 |
27762-79A00-000 |
US $2.43 |
||
