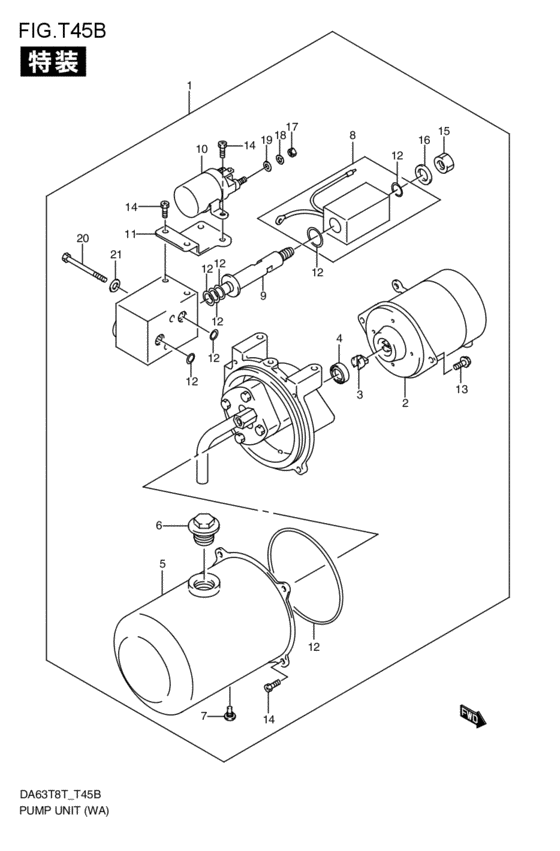

Pump unit fuel (キンタロウダンプ; WA; 2008-01-01~) Diagram Suzuki CARRY/EVERY
- Year
- 2008 - 2011
- Sales region
- Japan
- drive
- 2WD
- transmission
- MT
- grade
- WA
- rear differential lock
- RDFLK-N
- high-mounted stop lamp
- HMSTL-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
97300-56H01-000
モータ/ポンプアッシ,ハイドロリック
WA; 2008-01-01~ |
97300-56H01-000 |
— | ||
|
2
|
2
97330-85970-000
モータアッシ
WA; 2008-01-01~ |
97330-85970-000 |
— | ||
|
3
|
3
97385-85970-000
Jointballdrive shaf
WA; 2008-01-01~ |
97385-85970-000 |
— | ||
|
4
|
4
97364-79340-000
Oil seal
WA; 2008-01-01~ |
97364-79340-000 |
— | ||
|
5
|
5
97351-56D90-000
タンク,オイル
WA; 2008-01-01~ |
97351-56D90-000 |
— | ||
|
6
|
6
97342-85970-000
プラグ,エアブリーザ
WA; 2008-01-01~ |
97342-85970-000 |
— | ||
|
7
|
7
97346-56D90-000
プラグ,オイルタンク
WA; 2008-01-01~ |
97346-56D90-000 |
— | ||
|
8
|
8
97320-56810-000
パーツセット,ソレノイドモールド
WA; 2008-01-01~ |
97320-56810-000 |
— | ||
|
9
|
9
97300-56810-000
パーツセット,ソレノイドカートリッジ
WA; 2008-01-01~ |
97300-56810-000 |
— | ||
|
10
|
10
97310-85970-000
スタータリレー/モータアッシ
WA; 2008-01-01~ |
97310-85970-000 |
— | ||
|
11
|
11
97341-56H00-000
ブラケット,スタータリレー
WA; 2008-01-01~ |
97341-56H00-000 |
— | ||
|
12
|
12
97300-56830-000
シールセット,ポンプユニット
WA; 2008-01-01~ |
97300-56830-000 |
— | ||
|
13
|
13
01500-0616A-000 BoltWA; 2008-01-01~ |
01500-0616A-000 |
from US $0.76 |
||
|
14
|
14
01500-0610B-000 BoltBolt WA; 2008-01-01~ |
01500-0610B-000 |
from US $0.80 |
||
|
15
|
15
08319-21163-000
Nut
WA; 2008-01-01~ |
08319-21163-000 |
— | ||
| replacement | |||||
|
15
|
15
08319-2116A-000 NUTWA; 2008-01-01~ |
08319-2116A-000 |
from US $7.97 |
||
|
16
|
16
97345-56D90-000
カラー,バルブボディ
WA; 2008-01-01~ |
97345-56D90-000 |
— | ||
|
17
|
17
08310-0006B-000 NUTNut gear shift link rod WA; 2008-01-01~ |
08310-0006B-000 |
from US $0.76 |
||
|
18
|
18
08321-0106A-000 WASHER,LOCKWA; 2008-01-01~ |
08321-0106A-000 |
from US $0.76 |
||
|
19
|
19
08322-0106B-000 WASHERWA; 2008-01-01~ |
08322-0106B-000 |
from US $0.76 |
||
|
20
|
20
01500-0850B-000 BoltWA; 2008-01-01~ |
01500-0850B-000 |
from US $1.07 |
||
|
21
|
21
97347-56D90-000
ワッシャ,バルブボディ
WA; 2008-01-01~ |
97347-56D90-000 |
— | ||
