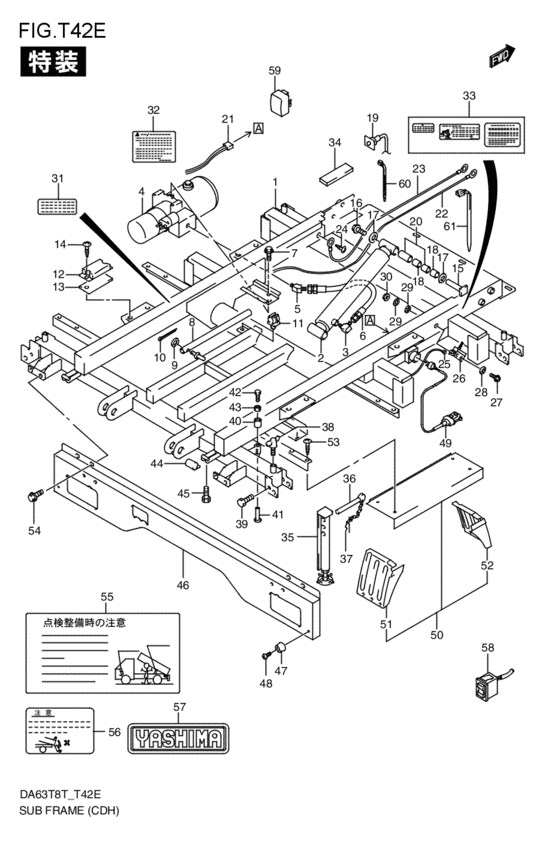

subframe (カソウ) (リフトダンプ; CDH; 2008-01-01~) Diagram Suzuki CARRY/EVERY
- Year
- 2008 - 2011
- Sales region
- Japan
- drive
- 4WD
- transmission
- MT
- grade
- CDH
- rear differential lock
- RDFLK-N
- high-mounted stop lamp
- HMSTL-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
98310-56HU2-000
フレーム,リフトダンプサブ
CDH; 2008-01-01~2009-03-01 |
98310-56HU2-000 |
— | ||
| replacements | |||||
|
1
|
1
75250-67H20-000 INSULATOR,DECK FLOOR FRCDH; 2008-01-01~2009-03-01 |
75250-67H20-000 |
US $89.79 |
||
|
1
|
1
98310-56HU3-000
フレーム,リフトダンプサブ
CDH; 2008-01-01~2009-03-01 |
98310-56HU3-000 |
— | ||
|
1
|
1
98310-56HU3-000
フレーム,リフトダンプサブ
CDH; 2009-04-01~ |
98310-56HU3-000 |
— | ||
|
2
|
2
97100-56H00-000
シリンダアッシ,ダンプ
CDH; 2008-01-01~ |
97100-56H00-000 |
— | ||
|
3
|
3
97131-56H00-000
Elbow
CDH; 2008-01-01~ |
97131-56H00-000 |
— | ||
|
4
|
4
97300-56H11-000
モータ/ポンプアッシ,ハイドロリック
CDH; 2008-01-01~ |
97300-56H11-000 |
— | ||
|
5
|
5
97121-56H00-000
メールアダプタ,ポンプ/ホース
CDH; 2008-01-01~ |
97121-56H00-000 |
— | ||
|
6
|
6
97110-56H00-000
ホース,ハイドロリックシリンダ
CDH; 2008-01-01~ |
97110-56H00-000 |
— | ||
|
7
|
7
01500-0820A-000 BoltCDH; 2008-01-01~ |
01500-0820A-000 |
from US $0.80 |
||
|
8
|
8
97561-56DA0-000
ポール,セーフティ
CDH; 2008-01-01~ |
97561-56DA0-000 |
— | ||
|
9
|
9
97563-85970-000
Washerxx
CDH; 2008-01-01~ |
97563-85970-000 |
— | ||
|
10
|
10
97564-85970-000
Float pin
CDH; 2008-01-01~ |
97564-85970-000 |
— | ||
|
11
|
11
97562-85970-000
ホルダ,セフティポール
CDH; 2008-01-01~ |
97562-85970-000 |
— | ||
|
12
|
12
73251-79340-000 PACKING,FRAMECDH; 2008-01-01~ |
73251-79340-000 |
US $36.06 |
||
|
13
|
13
73252-56H00-000 SHIM,PACKINGCDH; 2008-01-01~ |
73252-56H00-000 |
US $15.09 |
||
|
14
|
14
09132-06008-000 SCREW(6X12)CDH; 2008-01-01~ |
09132-06008-000 |
US $12.90 |
||
|
15
|
15
97652-69C70-000
ピン,シリンダマウント
CDH; 2008-01-01~ |
97652-69C70-000 |
— | ||
|
16
|
16
01570-1016A-000 BoltCDH; 2008-01-01~ |
01570-1016A-000 |
US $17.30 |
||
|
17
|
17
97643-72D00-000
Washerxx
CDH; 2008-01-01~ |
97643-72D00-000 |
— | ||
|
18
|
18
97644-85970-000
ブッシュ,デッキフロア,25X28X30
CDH; 2008-01-01~ |
97644-85970-000 |
— | ||
|
19
|
19
98961-72D91-000
ランプ,リフトダンプウォーニング
CDH; 2008-01-01~ |
98961-72D91-000 |
— | ||
|
20
|
20
97650-56810-000
ブッシュセット,ホイストシリンダ
CDH; 2008-01-01~ |
97650-56810-000 |
— | ||
|
21
|
21
98920-56H71-000
ハーネス,リフトダンプ,リヤ
CDH; 2008-01-01~ |
98920-56H71-000 |
— | ||
|
22
|
22
97825-56H01-000
ワイヤ,バッテリ
CDH; 2008-01-01~ |
97825-56H01-000 |
— | ||
|
23
|
23
97826-56HM0-000
ハーネス,モータアース
CDH; 2008-01-01~ |
97826-56HM0-000 |
— | ||
|
24
|
24
09132-06008-000 SCREW(6X12)CDH; 2008-01-01~ |
09132-06008-000 |
US $12.90 |
||
|
25
|
25
98953-56H70-000
ハーネス,リミットスイッチ
CDH; 2008-01-01~ |
98953-56H70-000 |
— | ||
|
26
|
26
98940-56X50-000
スイッチ,リミット
CDH; 2008-01-01~ |
98940-56X50-000 |
— | ||
|
27
|
27
02162-04353-000 ScrewCDH; 2008-01-01~ |
02162-04353-000 |
US $18.40 |
||
|
28
|
28
08322-0104B-000 WASHERWasher, headlamp CDH; 2008-01-01~ |
08322-0104B-000 |
from US $0.37 |
||
|
29
|
29
08321-0104A-000 WASHER,LOCKCDH; 2008-01-01~ |
08321-0104A-000 |
from US $0.96 |
||
|
30
|
30
08316-10043-000
Nut
CDH; 2008-01-01~ |
08316-10043-000 |
— | ||
| replacement | |||||
|
30
|
30
08316-1004B-000 NUTCDH; 2008-01-01~ |
08316-1004B-000 |
from US $4.28 |
||
|
31
|
31
97959-56DB1-000
ラベル,セフティポールコーション
CDH; 2008-01-01~ |
97959-56DB1-000 |
— | ||
| replacement | |||||
|
31
|
31
97951-56H00-000
New Genuine Part
CDH; 2008-01-01~ |
97951-56H00-000 |
— | ||
|
32
|
32
97958-56DB1-000
ラベル,オイルコーション
CDH; 2008-01-01~ |
97958-56DB1-000 |
— | ||
| replacement | |||||
|
32
|
32
97958-56DB2-000
New Genuine Part
CDH; 2008-01-01~ |
97958-56DB2-000 |
— | ||
|
33
|
33
97900-72820-000
ラベルセット,リフトダンプコーション
CDH; 2008-01-01~ |
97900-72820-000 |
— | ||
|
34
|
34
98461-56H70-000
パッキング,ラバー
CDH; 2008-01-01~ |
98461-56H70-000 |
— | ||
|
35
|
35
98650-56HL0-000
アウトリガー,リフトダンプ
CDH; 2008-01-01~ |
98650-56HL0-000 |
— | ||
|
36
|
36
98653-56H70-000
ピン,アウトリガー
CDH; 2008-01-01~ |
98653-56H70-000 |
— | ||
|
37
|
37
98654-72D90-000
クリップ
CDH; 2008-01-01~ |
98654-72D90-000 |
— | ||
|
38
|
38
98661-56H70-000
ボルト,アウトリガー
CDH; 2008-01-01~ |
98661-56H70-000 |
— | ||
|
39
|
39
01500-0616A-000 BoltCDH; 2008-01-01~ |
01500-0616A-000 |
from US $0.76 |
||
|
40
|
40
97563-72D00-000
クッション
CDH; 2008-01-01~ |
97563-72D00-000 |
— | ||
|
41
|
41
97564-72D00-000
Float pin
CDH; 2008-01-01~ |
97564-72D00-000 |
— | ||
|
42
|
42
01500-0830B-000 BoltCDH; 2008-01-01~ |
01500-0830B-000 |
from US $0.96 |
||
|
43
|
43
08310-0008B-000 NUTCDH; 2008-01-01~ |
08310-0008B-000 |
from US $0.96 |
||
|
44
|
44
98437-56DH0-000
プレート,スキッド
CDH; 2008-01-01~ |
98437-56DH0-000 |
— | ||
|
45
|
45
01500-0820A-000 BoltCDH; 2008-01-01~ |
01500-0820A-000 |
from US $0.80 |
||
|
46
|
46
98510-56H90-000
パネル,リヤスカート
CDH; 2008-01-01~ |
98510-56H90-000 |
— | ||
|
47
|
47
98521-56H10-000
ラバー,クッション
CDH; 2008-01-01~ |
98521-56H10-000 |
— | ||
|
48
|
48
02112-0520B-000 SCREWCDH; 2008-01-01~ |
02112-0520B-000 |
from US $0.80 |
||
|
49
|
49
98930-72D80-000
ハーネス,リフトダンプ,リモート
CDH; 2008-01-01~ |
98930-72D80-000 |
— | ||
|
50
|
50
73360-72D01-000 PANEL,RR WHEEL HOUSECDH; 2008-01-01~ |
73360-72D01-000 |
US $44.90 |
||
|
51
|
51
66323-56HN0-000 FENDER,DECK RR,RCDH; 2008-01-01~ |
66323-56HN0-000 |
US $7.54 |
||
|
52
|
52
66333-56HN0-000 FENDER,DECK RR,LCDH; 2008-01-01~ |
66333-56HN0-000 |
US $7.54 |
||
|
53
|
53
09132-06008-000 SCREW(6X12)CDH; 2008-01-01~ |
09132-06008-000 |
US $12.90 |
||
|
54
|
54
01550-0612A-000 BoltCDH; 2008-01-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
55
|
55
97951-85970-000
プレート,ダンプセフティコーション
CDH; 2008-01-01~ |
97951-85970-000 |
— | ||
| replacement | |||||
|
55
|
55
97951-56H00-000
New Genuine Part
CDH; 2008-01-01~ |
97951-56H00-000 |
— | ||
|
56
|
56
97954-72D00-000
ラベル,リヤゲートコーション
CDH; 2008-01-01~ |
97954-72D00-000 |
— | ||
| replacement | |||||
|
56
|
56
97954-56H00-000
New Genuine Part
CDH; 2008-01-01~ |
97954-56H00-000 |
— | ||
|
57
|
57
97956-72D00-000
ラベル,ネームYASHIMA
CDH; 2008-01-01~ |
97956-72D00-000 |
— | ||
|
58
|
58
97810-85972-5PK
Switch assy,dump control(black
CDH; 2008-01-01~ |
97810-85972-5PK |
— | ||
| replacement | |||||
|
58
|
58
97810-85900-5PK SWITCH,DUMP CONTROL(BLACK)CDH; 2008-01-01~ |
97810-85900-5PK |
US $48.58 |
||
|
59
|
59
37285-75F00-000 CAP,OPTION SW HOLECDH; 2008-01-01~ |
37285-75F00-000 |
from US $2.28 |
||
|
60
|
60
09407-11402-000 CLAMP(L:90)CDH; 2008-01-01~ |
09407-11402-000 |
from US $1.75 |
||
| replacement | |||||
|
60
|
60
09407-17402-000 CLAMPCDH; 2008-01-01~ |
09407-17402-000 |
from US $1.98 |
||
|
61
|
61
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap CDH; 2008-01-01~ |
09407-14403-000 |
from US $1.08 |
||
