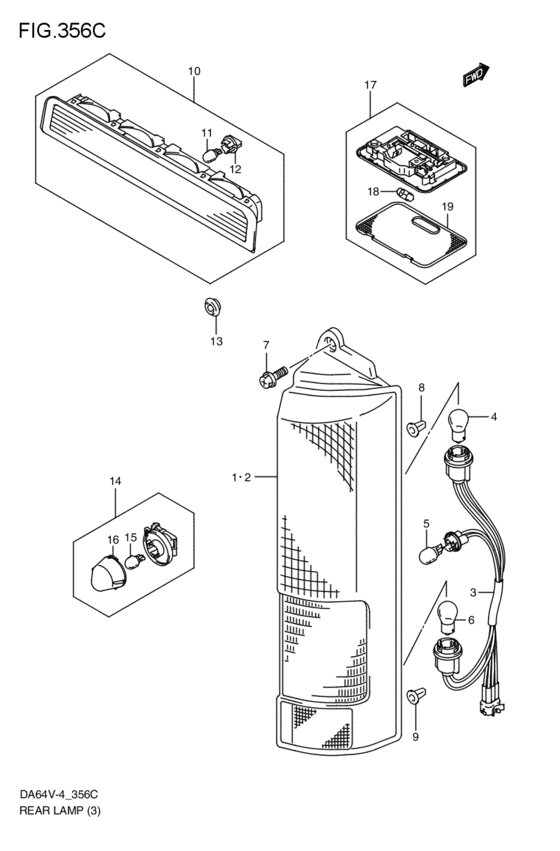

rear lamp (WBL; 2009-10-01~) Diagram Suzuki CARRY/EVERY
- Year
- 2009 - 2011
- Sales region
- Japan
- supercharge
- TURBO
- drive
- 2WD
- transmission
- AT
- grade
- WBL
- number of the gears
- 4AT
- body
- DA64W
- abs
- ABS
- wheel
- ALUMI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35650-68H20-000
ランプユニット RH,リヤコンビネーションライト
WBL; 2009-10-01~ |
35650-68H20-000 |
— | ||
|
2
|
2
35670-68H20-000 ランプユニット LH,リヤコンビネーションレフトWBL; 2009-10-01~ |
35670-68H20-000 |
US $334.88 |
||
|
3
|
3
35658-68H12-000
ソケット/コードアッシ
WBL; 2009-10-01~ |
35658-68H12-000 |
— | ||
| replacement | |||||
|
3
|
3
35658-68H13-000
New Genuine Part
WBL; 2009-10-01~ |
35658-68H13-000 |
— | ||
|
4
|
4
09471-12083-000 BULB(12V21/5W)STANLEY,49641A; WBL; 2009-10-01~ |
09471-12083-000 |
from US $4.14 |
||
| replacement | |||||
|
4
|
4
09471-12128-000 BULB(12V21/5W,BF141-49642A)STANLEY,49641A; WBL; 2009-10-01~ |
09471-12128-000 |
from US $7.20 |
||
|
5
|
5
09471-12146-000 BULB(12V16W)Bulb (12v18w) STANLEY; WBL; 2009-10-01~ |
09471-12146-000 |
from US $3.36 |
||
|
6
|
6
09471-12186-000 BULB(12V21W,AMBER)アンバ-; WBL; 2009-10-01~ |
09471-12186-000 |
from US $8.44 |
||
|
7
|
7
02162-0616C-000 SCREWシルバー; WBL; 2009-10-01~ |
02162-0616C-000 |
from US $0.80 |
||
| replacement | |||||
|
7
|
7
02162-0616B-000 SCREWBolt, adjust シルバー; WBL; 2009-10-01~ |
02162-0616B-000 |
from US $0.96 |
||
|
7
|
7
02162-0616E-000 SCREWクロ; WBL; 2009-10-01~ |
02162-0616E-000 |
US $11.80 |
||
|
8
|
8
35153-63G00-000 GROMMET,RR COMB LAMPWBL; 2009-10-01~ |
35153-63G00-000 |
from US $2.07 |
||
|
9
|
9
35153-54G00-000 GROMMET,RR COMB LAMPWBL; 2009-10-01~ |
35153-54G00-000 |
from US $1.53 |
||
|
10
|
10
35810-68H00-000 LAMP ASSY,HIGH MT STOPWBL; 2009-10-01~ |
35810-68H00-000 |
US $68.08 |
||
|
11
|
11
09471-12216-000 BULB(12V5W)Bulb (12v5w) WBL; 2009-10-01~ |
09471-12216-000 |
from US $3.02 |
||
|
12
|
12
36218-74F00-000 SOCKETWBL; 2009-10-01~ |
36218-74F00-000 |
from US $2.12 |
||
|
13
|
13
09250-20023-000 CAP(OD:25.8)WBL; 2009-10-01~ |
09250-20023-000 |
from US $1.67 |
||
|
14
|
14
35910-14F01-000 Lamp assy,licenseWBL; 2009-10-01~ |
35910-14F01-000 |
from US $13.91 |
||
|
15
|
15
09471-12216-000 BULB(12V5W)Bulb (12v5w) WBL; 2009-10-01~ |
09471-12216-000 |
from US $3.02 |
||
|
16
|
16
35912-14F11-000 LENSWBL; 2009-10-01~ |
35912-14F11-000 |
from US $10.56 |
||
|
17
|
17
36210-58J00-6GS
Lamp assy,rr room
WBL; 2009-10-01~ |
36210-58J00-6GS |
— | ||
| replacement | |||||
|
17
|
17
36210-58J03-6GS LAMP ASSY,RR ROOMWBL; 2009-10-01~ |
36210-58J03-6GS |
from US $18.72 |
||
|
18
|
18
09471-12181-000 BULB(12V10W)WBL; 2009-10-01~ |
09471-12181-000 |
from US $3.26 |
||
|
19
|
19
36212-58J00-000 LENSWBL; 2009-10-01~ |
36212-58J00-000 |
US $5.92 |
||
