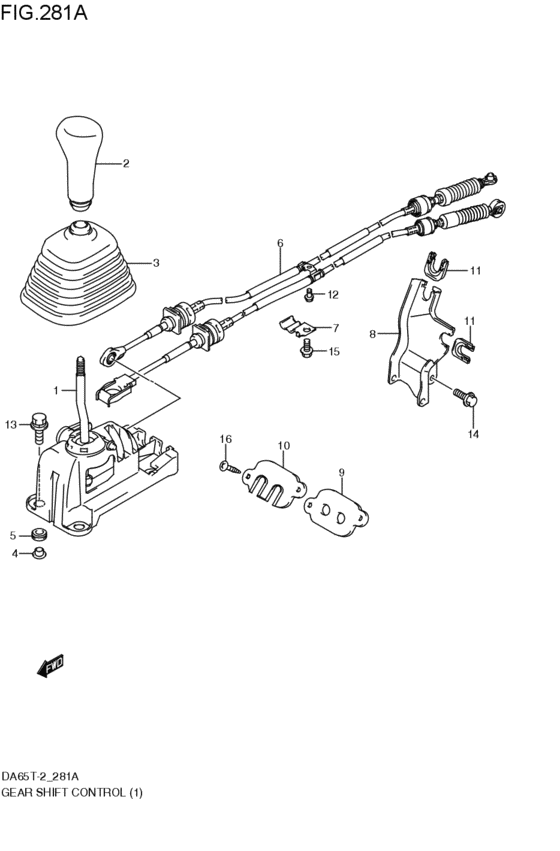

gearlever control (2WD; 2008-01-01~) Diagram Suzuki CARRY/EVERY
- Year
- 2008 - 2011
- Sales region
- Japan
- drive
- 2WD
- grade
- FC
- air bag
- AB
- power steering
- PS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28101-67H00-000
Lever assy,gear shift cont
2WD; 2008-01-01~ |
28101-67H00-000 |
— | ||
| replacement | |||||
|
1
|
1
28101-67H01-000 LEVER ASSY,GR SHF CONT2WD; 2008-01-01~ |
28101-67H01-000 |
US $106.72 |
||
|
2
|
2
28113-70G40-5PK
KNOB,CONT LEVER
2WD; 2008-01-01~ |
28113-70G40-5PK |
— | ||
| replacement | |||||
|
2
|
2
28113-70G41-5PK KNOB,CONT LEVER(BLACK)2WD; 2008-01-01~ |
28113-70G41-5PK |
US $67.20 |
||
|
3
|
3
28136-78A00-5PK BOOT,GR SHF CONT LEVER2WD; 2008-01-01~ |
28136-78A00-5PK |
from US $12.58 |
||
|
4
|
4
28367-64J00-000 SPACER,GEAR CONT GUIDE CUSHION2WD; 2008-01-01~ |
28367-64J00-000 |
from US $1.33 |
||
|
5
|
5
09320-12036-000 CUSHIONCushion, holder 2WD; 2008-01-01~ |
09320-12036-000 |
from US $0.70 |
||
|
6
|
6
28300-83J00-000
ケーブルアッシ,ギヤシフト/SLTコントロール
2WD; 2008-01-01~ |
28300-83J00-000 |
— | ||
|
7
|
7
28385-83J00-000
クランプ,ギヤコントロールケーブル
2WD; 2008-01-01~ |
28385-83J00-000 |
— | ||
|
8
|
8
28391-83J00-000 BRACKET,T/M GR CONT CABLE2WD; 2008-01-01~ |
28391-83J00-000 |
US $26.86 |
||
|
9
|
9
28393-78A21-000 GROMMET,T/M GEAR CONTROL CABLE2WD; 2008-01-01~ |
28393-78A21-000 |
from US $5.36 |
||
|
10
|
10
28395-78A20-000 GROMMET,SELECT CABLE2WD; 2008-01-01~ |
28395-78A20-000 |
from US $1.73 |
||
|
11
|
11
29365-73J00-000 CLIP,GEAR CONT CABLE NO.22WD; 2008-01-01~ |
29365-73J00-000 |
from US $4.32 |
||
|
12
|
12
09111-06092-000 BOLT(6X19)Bolt 2WD; 2008-01-01~ |
09111-06092-000 |
from US $4.13 |
||
|
13
|
13
09118-08119-000 BOLT(8X25)2WD; 2008-01-01~ |
09118-08119-000 |
from US $1.08 |
||
|
14
|
14
01550-0820A-000 BoltBolt, funnel bracket 2WD; 2008-01-01~ |
01550-0820A-000 |
from US $1.12 |
||
|
15
|
15
01551-0816C-000 Bolt2WD; 2008-01-01~ |
01551-0816C-000 |
from US $0.96 |
||
|
16
|
16
03141-0616A-000 SCREW2WD; 2008-01-01~ |
03141-0616A-000 |
from US $0.76 |
||
