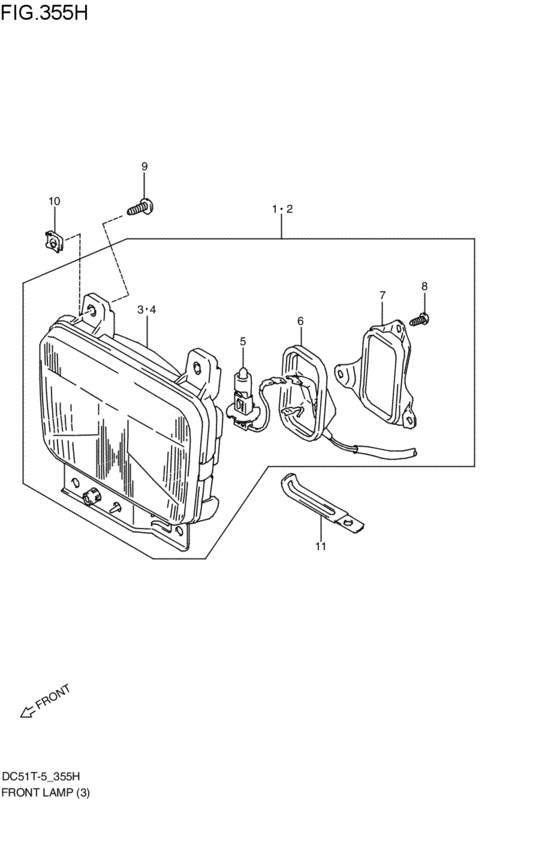

front lamp (フォグランプ; PY; 1997-04-01~1998-11-01) Diagram Suzuki CARRY/EVERY
- Year
- 1997 - 2011
- Sales region
- Japan
- Engine
- TURBO
- supercharge
- TEPI
- drive
- F4WD
- transmission
- MT
- grade
- PY
- number of the gears
- 5MT
- body
- P
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35501-50F00-000
ランプアッシ,フォグ,ライト
PY; 1997-04-01~1998-11-01 |
35501-50F00-000 |
— | ||
|
2
|
2
35502-50F00-000
ランプアッシ,フォグ,レフト
PY; 1997-04-01~1998-11-01 |
35502-50F00-000 |
— | ||
|
3
|
3
35510-50F00-000
ユニット,フォグランプ,ライト
PY; 1997-04-01~1998-11-01 |
35510-50F00-000 |
— | ||
|
4
|
4
35550-50F00-000
ユニット,フォグランプ,レフト
PY; 1997-04-01~1998-11-01 |
35550-50F00-000 |
— | ||
|
5
|
5
09471-12120-000
BULB(12V35W H3)
PY; 1997-04-01~1998-11-01 |
09471-12120-000 |
— | ||
|
6
|
6
35532-50F00-000
コード,フォグランプ
PY; 1997-04-01~1998-11-01 |
35532-50F00-000 |
— | ||
|
7
|
7
35528-50F00-000
プレート,シール
PY; 1997-04-01~1998-11-01 |
35528-50F00-000 |
— | ||
|
8
|
8
03211-04103-000
Screw
PY; 1997-04-01~1998-11-01 |
03211-04103-000 |
— | ||
| replacements | |||||
|
8
|
8
03211-0410B-000 SCREWPY; 1997-04-01~1998-11-01 |
03211-0410B-000 |
from US $0.80 |
||
|
8
|
8
03211-0410A-000 SCREWPY; 1997-04-01~1998-11-01 |
03211-0410A-000 |
from US $1.31 |
||
|
9
|
9
03541-05163-000
Screw
PY; 1997-04-01~1998-11-01 |
03541-05163-000 |
— | ||
| replacement | |||||
|
9
|
9
03541-0516A-000 SCREWPY; 1997-04-01~1998-11-01 |
03541-0516A-000 |
from US $0.76 |
||
|
10
|
10
09148-05038-000 NUTNut, inner PY; 1997-04-01~1998-11-01 |
09148-05038-000 |
from US $0.91 |
||
|
11
|
11
09404-06432-000
CLAMP(L:65)
PY; 1997-04-01~1998-11-01 |
09404-06432-000 |
— | ||
| replacement | |||||
|
11
|
11
09404-06039-000 Clamp(L:65)PY; 1997-04-01~1998-11-01 |
09404-06039-000 |
from US $1.82 |
||
