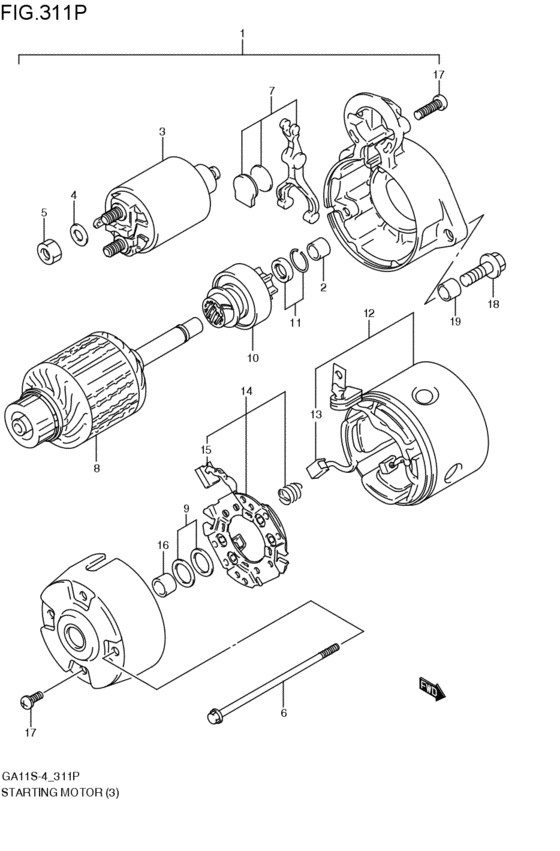

starting motor (199805 カラ 199904 マデ; MT:G13B; 1998-05-01~1999-04-01) Diagram Suzuki CULTUS
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- G13B
- drive
- 2WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- FS1
- number of the gears
- 5MT
- air bag
- 2AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-60G10-000
モータアッシ,スターティング
MT:G13B; 1998-05-01~1999-04-01 |
31100-60G10-000 |
— | ||
| replacement | |||||
|
1
|
1
31100-60G11-000 MOTOR ASSY,STARTINGMT:G13B; 1998-05-01~1999-04-01 |
31100-60G11-000 |
US $436.48 |
||
|
2
|
2
31152-70B30-000 BUSHINGMT:G13B; 1998-05-01~1999-04-01 |
31152-70B30-000 |
from US $27.97 |
||
|
3
|
3
31220-84030-000 SWITCH ASSYMT:G13B; 1998-05-01~1999-04-01 |
31220-84030-000 |
from US $165.11 |
||
|
4
|
4
08321-01083-000
Lock washer
MT:G13B; 1998-05-01~1999-04-01 |
08321-01083-000 |
— | ||
| replacements | |||||
|
4
|
4
08321-0108B-000 WASHER,LOCKMT:G13B; 1998-05-01~1999-04-01 |
08321-0108B-000 |
from US $0.76 |
||
|
4
|
4
08321-0108A-000 WASHER,LOCKMT:G13B; 1998-05-01~1999-04-01 |
08321-0108A-000 |
from US $0.88 |
||
|
5
|
5
08310-00083-000
Nut
MT:G13B; 1998-05-01~1999-04-01 |
08310-00083-000 |
— | ||
| replacements | |||||
|
5
|
5
08310-0008B-000 NUTMT:G13B; 1998-05-01~1999-04-01 |
08310-0008B-000 |
from US $0.96 |
||
|
5
|
5
08310-0008A-000 NUTNut, bead stopper MT:G13B; 1998-05-01~1999-04-01 |
08310-0008A-000 |
from US $0.76 |
||
|
6
|
6
31261-82130-000 BoltMT:G13B; 1998-05-01~1999-04-01 |
31261-82130-000 |
from US $1.89 |
||
|
7
|
7
31191-82030-000 LEVER ASSYMT:G13B; 1998-05-01~1999-04-01 |
31191-82030-000 |
from US $6.19 |
||
|
8
|
8
31311-60G10-000
ARMATURE
MT:G13B; 1998-05-01~1999-04-01 |
31311-60G10-000 |
— | ||
|
9
|
9
31361-79030-000 WASHERMT:G13B; 1998-05-01~1999-04-01 |
31361-79030-000 |
from US $5.20 |
||
|
10
|
10
31320-82130-000 CLUTCH ASSYMT:G13B; 1998-05-01~1999-04-01 |
31320-82130-000 |
from US $75.20 |
||
|
11
|
11
31313-80090-000 RING SETMT:G13B; 1998-05-01~1999-04-01 |
31313-80090-000 |
from US $4.25 |
||
|
12
|
12
31110-60G10-000
YOKE ASSY
MT:G13B; 1998-05-01~1999-04-01 |
31110-60G10-000 |
— | ||
|
13
|
13
31131-80090-000 BRUSH(+)MT:G13B; 1998-05-01~1999-04-01 |
31131-80090-000 |
from US $8.84 |
||
|
14
|
14
31173-82130-000 HOLDER ASSY,BRUSHMT:G13B; 1998-05-01~1999-04-01 |
31173-82130-000 |
from US $43.20 |
||
|
15
|
15
31132-80090-000 BRUSH(-)MT:G13B; 1998-05-01~1999-04-01 |
31132-80090-000 |
from US $8.60 |
||
|
16
|
16
31172-79030-000 BUSHMT:G13B; 1998-05-01~1999-04-01 |
31172-79030-000 |
from US $3.38 |
||
|
17
|
17
31136-79030-000 SCREW ASSYMT:G13B; 1998-05-01~1999-04-01 |
31136-79030-000 |
US $3.38 |
||
| replacement | |||||
|
17
|
17
31175-79030-000 Screw SetMT:G13B; 1998-05-01~1999-04-01 |
31175-79030-000 |
US $8.16 |
||
|
18
|
18
01550-08403-000
Bolt
MT:G13B; 1998-05-01~1999-04-01 |
01550-08403-000 |
— | ||
| replacements | |||||
|
18
|
18
01550-0840B-000 BoltMT:G13B; 1998-05-01~1999-04-01 |
01550-0840B-000 |
from US $1.12 |
||
|
18
|
18
01550-0840A-000 BoltMT:G13B; 1998-05-01~1999-04-01 |
01550-0840A-000 |
from US $1.12 |
||
|
19
|
19
04211-11129-000 PINMT:G13B; 1998-05-01~1999-04-01 |
04211-11129-000 |
from US $0.99 |
||
