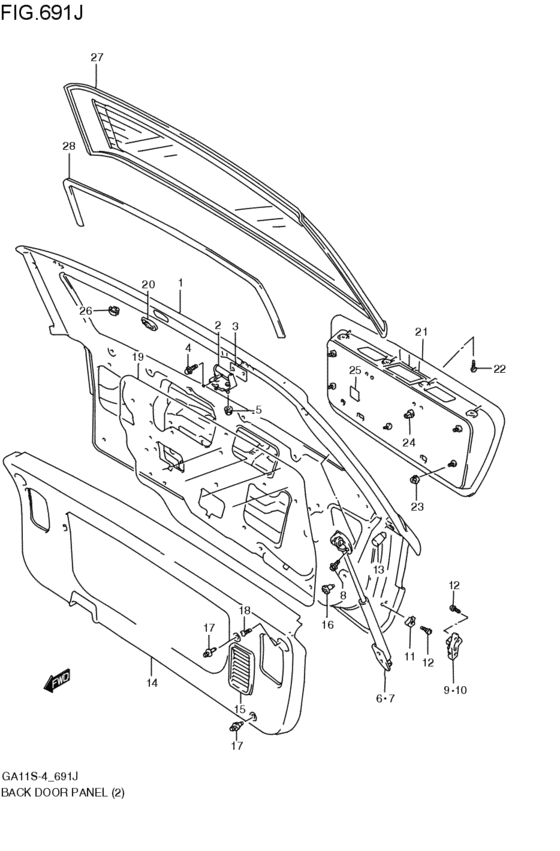

back door panel (5DR:TS; 1998-05-01~2000-02-01) Diagram Suzuki CULTUS
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- G15A
- drive
- 2WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- TS1
- number of the gears
- 4AT
- air bag
- 1AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
69100-63G21-000 PANEL,BACK DOOR5DR:TS; 1998-05-01~2000-02-01 |
69100-63G21-000 |
from US $355.21 |
||
|
2
|
2
69520-50E00-000
HINGE,BACK DOOR,L
5DR:TS; 1998-05-01~2000-02-01 |
69520-50E00-000 |
— | ||
|
3
|
3
69571-60D01-000 PACKING,BACK DOOR HINGE FEM5DR:TS; 1998-05-01~2000-02-01 |
69571-60D01-000 |
from US $1.60 |
||
|
4
|
4
01570-06123-000
Bolt
5DR:TS; 1998-05-01~2000-02-01 |
01570-06123-000 |
— | ||
| replacements | |||||
|
4
|
4
01570-0612B-000 BoltBolt, upper 5DR:TS; 1998-05-01~2000-02-01 |
01570-0612B-000 |
US $0.96 |
||
|
4
|
4
01570-0612A-000 BoltBolt 5DR:TS; 1998-05-01~2000-02-01 |
01570-0612A-000 |
from US $0.96 |
||
|
5
|
5
08361-25063-000
Nut
5DR:TS; 1998-05-01~2000-02-01 |
08361-25063-000 |
— | ||
| replacement | |||||
|
5
|
5
08361-2506A-000 NUT5DR:TS; 1998-05-01~2000-02-01 |
08361-2506A-000 |
US $0.80 |
||
|
6
|
6
81850-63G00-X10
ARTICLESPRESSURIZEDBALANCER
5DR:TS; 1998-05-01~2000-02-01 |
81850-63G00-X10 |
— | ||
| replacement | |||||
|
6
|
6
81850-63G00-000 BALANCER,BACK DR,R5DR:TS; 1998-05-01~2000-02-01 |
81850-63G00-000 |
US $98.06 |
||
|
7
|
7
81860-63G00-X10
ARTICLESPRESSURIZEDBALANCER
5DR:TS; 1998-05-01~2000-02-01 |
81860-63G00-X10 |
— | ||
| replacement | |||||
|
7
|
7
81860-63G00-000 BALANCER,BACK DR,L5DR:TS; 1998-05-01~2000-02-01 |
81860-63G00-000 |
US $82.46 |
||
|
8
|
8
02162-06123-000
Bolt (6x12)
5DR:TS; 1998-05-01~2000-02-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
8
|
8
02162-0612B-000 SCREWBolt 5DR:TS; 1998-05-01~2000-02-01 |
02162-0612B-000 |
from US $0.80 |
||
|
8
|
8
02162-0612A-000 SCREWBolt, bracket 5DR:TS; 1998-05-01~2000-02-01 |
02162-0612A-000 |
from US $0.79 |
||
|
9
|
9
82530-63G00-000
ストッパ,バックドアシャット,ライト
5DR:TS; 1998-05-01~2000-02-01 |
82530-63G00-000 |
— | ||
| replacement | |||||
|
9
|
9
82530-61J03-000 STOPPER,BACK DOOR SHUT,R5DR:TS; 1998-05-01~2000-02-01 |
82530-61J03-000 |
US $12.99 |
||
|
10
|
10
82570-63G00-000
STOPPER BACK DOOR
5DR:TS; 1998-05-01~2000-02-01 |
82570-63G00-000 |
— | ||
| replacement | |||||
|
10
|
10
82580-61J03-000 STOPPER,BACK DOOR SHUT L5DR:TS; 1998-05-01~2000-02-01 |
82580-61J03-000 |
from US $9.59 |
||
|
11
|
11
82541-63G00-000
メール,バックドアシャット
5DR:TS; 1998-05-01~2000-02-01 |
82541-63G00-000 |
— | ||
| replacement | |||||
|
11
|
11
82541-63G01-000
MALE,BACK DR SHUT
5DR:TS; 1998-05-01~2000-02-01 |
82541-63G01-000 |
— | ||
|
12
|
12
09122-76004-000 SCREW(6X16)5DR:TS; 1998-05-01~2000-02-01 |
09122-76004-000 |
US $0.96 |
||
|
13
|
13
76683-70C00-000 CUSHION,TRUNK LID/BACK DR5DR:TS; 1998-05-01~2000-02-01 |
76683-70C00-000 |
from US $1.92 |
||
|
14
|
14
83771-63G10-T01
TRIM,BACK DOOR
グレ-; 5DR:TS; 1998-05-01~2000-02-01 |
83771-63G10-T01 |
— | ||
|
15
|
15
83772-63G00-T01
CAP,BACK DR TRIM
グレ-; 5DR:TS; 1998-05-01~2000-02-01 |
83772-63G00-T01 |
— | ||
|
16
|
16
09409-08320-000 CLIP5DR:TS; 1998-05-01~2000-02-01 |
09409-08320-000 |
from US $1.15 |
||
|
17
|
17
09409-07308-T01 CLIP(GRAY)グレ-; 5DR:TS; 1998-05-01~2000-02-01 |
09409-07308-T01 |
from US $0.97 |
||
|
18
|
18
02142-06163-000
Screw
5DR:TS; 1998-05-01~2000-02-01 |
02142-06163-000 |
— | ||
| replacement | |||||
|
18
|
18
02142-0616A-000 SCREW5DR:TS; 1998-05-01~2000-02-01 |
02142-0616A-000 |
from US $0.76 |
||
|
19
|
19
83911-60X51-000
Cover, door sealing (600x1200)
5DR:TS; 1998-05-01~2000-02-01 |
83911-60X51-000 |
— | ||
| replacement | |||||
|
19
|
19
83911-60X52-000 COVER,DR SEALING5DR:TS; 1998-05-01~2000-02-01 |
83911-60X52-000 |
US $6.06 |
||
|
20
|
20
83917-82010-5PK CAP,BACK DR HOLEブラック; 5DR:TS; 1998-05-01~2000-02-01 |
83917-82010-5PK |
from US $1.60 |
||
|
21
|
21
83940-63G01-000 GARNISH,BACK DR LICキジショク; 5DR:TS; 1998-05-01~2000-02-01 |
83940-63G01-000 |
from US $50.29 |
||
|
22
|
22
03141-06123-000
Screw 6x12
5DR:TS; 1998-05-01~2000-02-01 |
03141-06123-000 |
— | ||
| replacement | |||||
|
22
|
22
03141-0612A-000 SCREW5DR:TS; 1998-05-01~2000-02-01 |
03141-0612A-000 |
US $0.76 |
||
|
23
|
23
08316-10063-000
Nut
5DR:TS; 1998-05-01~2000-02-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
23
|
23
08316-1006B-000 NUT5DR:TS; 1998-05-01~2000-02-01 |
08316-1006B-000 |
from US $0.76 |
||
|
24
|
24
09148-05035-000 NUT5DR:TS; 1998-05-01~2000-02-01 |
09148-05035-000 |
from US $0.88 |
||
|
25
|
25
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole 5DR:TS; 1998-05-01~2000-02-01 |
84761-50X50-000 |
from US $6.72 |
||
|
26
|
26
09403-05311-000 CLAMP5DR:TS; 1998-05-01~2000-02-01 |
09403-05311-000 |
US $14.40 |
||
|
27
|
27
84570-63G01-000
GLASS WINDOW GREEN
ASAHI グリーン; 5DR:TS; 1998-05-01~2000-02-01 |
84570-63G01-000 |
— | ||
| replacement | |||||
|
27
|
27
84570-63G02-000 GLASS,BACK DR WINDOWASAHI グリーン; 5DR:TS; 1998-05-01~2000-02-01 |
84570-63G02-000 |
from US $598.40 |
||
|
28
|
28
84627-63G00-000 TRIM,BACK DOOR WINDOW5DR:TS; 1998-05-01~2000-02-01 |
84627-63G00-000 |
from US $21.33 |
||
