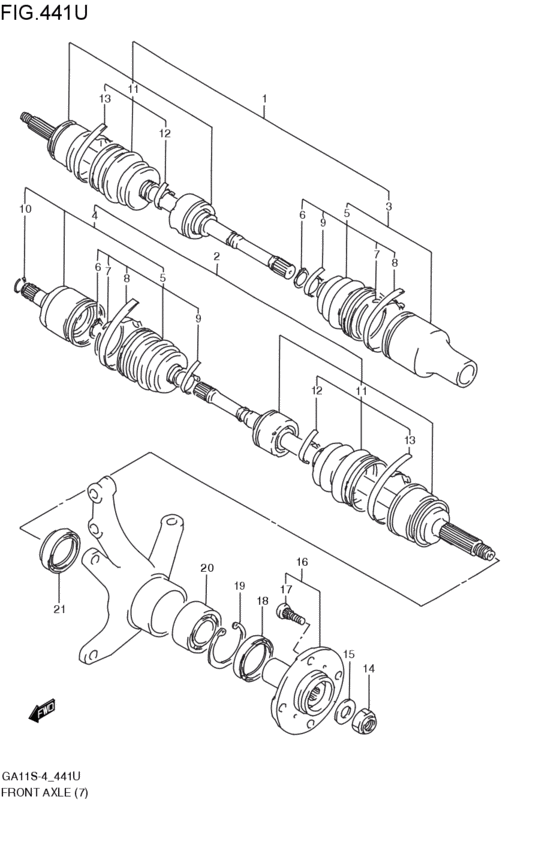

front axle (J18A:MT; 1998-05-01~2000-02-01) Diagram Suzuki CULTUS
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- J18A
- drive
- 2WD
- transmission
- MT
- Number of doors
- 5DR
- grade
- TZ1
- number of the gears
- 5MT
- air bag
- AB-N
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44101-60G44-000
SHAFT ASSY,FRONT DRIVE,R
J18A:MT; 1998-05-01~2000-02-01 |
44101-60G44-000 |
— | ||
|
2
|
2
44102-60G42-000
SHAFT ASSY,FRONT DRIVE,L
J18A:MT; 1998-05-01~2000-02-01 |
44102-60G42-000 |
— | ||
|
3
|
3
44117-60G43-000
JOINT ASSY,DIFF SIDE
ライト; J18A:MT; 1998-05-01~2000-02-01 |
44117-60G43-000 |
— | ||
|
4
|
4
44115-60G41-000
JOINT ASSY,DIFF SIDE
レフト; J18A:MT; 1998-05-01~2000-02-01 |
44115-60G41-000 |
— | ||
|
5
|
5
44119-60G40-000
Boot set,diff side
J18A:MT; 1998-05-01~2000-02-01 |
44119-60G40-000 |
— | ||
| replacements | |||||
|
5
|
5
44119-60G62-000
BOOT SET,DIFF SIDE
J18A:MT; 1998-05-01~2000-02-01 |
44119-60G62-000 |
— | ||
|
5
|
5
44119-60G63-000 BOOT SET,DIFF SIDEJ18A:MT; 1998-05-01~2000-02-01 |
44119-60G63-000 |
US $61.82 |
||
|
6
|
6
44111-53B10-000 RING,SNAPJ18A:MT; 1998-05-01~2000-02-01 |
44111-53B10-000 |
from US $1.52 |
||
|
7
|
7
44112-53B10-000 CIRCLIPJ18A:MT; 1998-05-01~2000-02-01 |
44112-53B10-000 |
from US $3.62 |
||
|
8
|
8
44121-53B10-000 BAND,BOOTJ18A:MT; 1998-05-01~2000-02-01 |
44121-53B10-000 |
from US $9.97 |
||
|
9
|
9
44123-53B10-000 BAND,BOOT SMALLJ18A:MT; 1998-05-01~2000-02-01 |
44123-53B10-000 |
from US $5.99 |
||
|
10
|
10
44111-65D00-000 RING,SNAPレフト; J18A:MT; 1998-05-01~2000-02-01 |
44111-65D00-000 |
from US $1.60 |
||
|
11
|
11
44118-60G42-000
BOOT SET,WHEEL SIDE
J18A:MT; 1998-05-01~2000-02-01 |
44118-60G42-000 |
— | ||
|
12
|
12
44124-60A00-000 BANDJ18A:MT; 1998-05-01~2000-02-01 |
44124-60A00-000 |
from US $6.80 |
||
|
13
|
13
44121-60A01-000 CLAMP,BOOTJ18A:MT; 1998-05-01~2000-02-01 |
44121-60A01-000 |
from US $13.50 |
||
|
14
|
14
09159-18008-000 NUTJ18A:MT; 1998-05-01~2000-02-01 |
09159-18008-000 |
from US $3.60 |
||
|
15
|
15
09160-18017-000 WASHER(18X35X4)J18A:MT; 1998-05-01~2000-02-01 |
09160-18017-000 |
from US $0.91 |
||
|
16
|
16
43420-50850-000
HUB SET FRONT WHEEL
J18A:MT; 1998-05-01~2000-02-01 |
43420-50850-000 |
— | ||
| replacement | |||||
|
16
|
16
43420-50853-000 HUB SET,FR WHLJ18A:MT; 1998-05-01~2000-02-01 |
43420-50853-000 |
from US $88.18 |
||
|
17
|
17
09119-12012-000 BOLT(12X38)J18A:MT; 1998-05-01~2000-02-01 |
09119-12012-000 |
from US $1.13 |
||
|
18
|
18
09283-56002-000 SEAL,OIL(56X72.2X7.8)J18A:MT; 1998-05-01~2000-02-01 |
09283-56002-000 |
from US $13.34 |
||
|
19
|
19
09381-72002-000 RING,SNAPJ18A:MT; 1998-05-01~2000-02-01 |
09381-72002-000 |
from US $4.61 |
||
|
20
|
20
09267-40001-000 BEARING(40X72X36)J18A:MT; 1998-05-01~2000-02-01 |
09267-40001-000 |
from US $67.03 |
||
|
21
|
21
43431-60G00-000 SEAL,FR WHL BRG INNER OILJ18A:MT; 1998-05-01~2000-02-01 |
43431-60G00-000 |
from US $23.67 |
||
