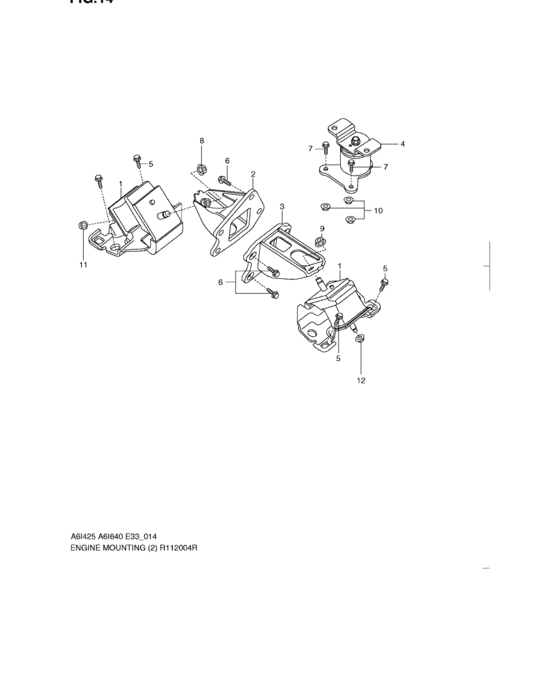

Engine mounting (QR25DE:AT) Diagram Suzuki EQUATOR
- Year
- -
- Sales region
- U.S.A.
- drive
- 2WD
- transmission
- AT
- grade
- BASE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11510-82Z00-000
Mounting, eng fr
|
11510-82Z00-000 |
— | ||
|
2
|
2
11610-82Z00-000
Mounting, engine rh
|
11610-82Z00-000 |
— | ||
|
3
|
3
11710-82Z00-000
Mounting, engine lh
|
11710-82Z00-000 |
— | ||
|
4
|
4
11810-82Z00-000
Mounting, engine rr
|
11810-82Z00-000 |
— | ||
|
5
|
5
11513-82Z20-000
Bolt
|
11513-82Z20-000 |
— | ||
|
6
|
6
11513-82Z30-000
Bolt
|
11513-82Z30-000 |
— | ||
|
7
|
7
11513-82Z00-000
Bolt
|
11513-82Z00-000 |
— | ||
|
8
|
8
1821A-82Z00-000
Nut
|
1821A-82Z00-000 |
— | ||
|
9
|
9
1821A-82Z00-000
Nut
|
1821A-82Z00-000 |
— | ||
|
10
|
10
1821A-82Z00-000
Nut
|
1821A-82Z00-000 |
— | ||
|
11
|
11
1525A-82Z00-000
Nut
|
1525A-82Z00-000 |
— | ||
|
12
|
12
1525A-82Z00-000
Nut
|
1525A-82Z00-000 |
— |
