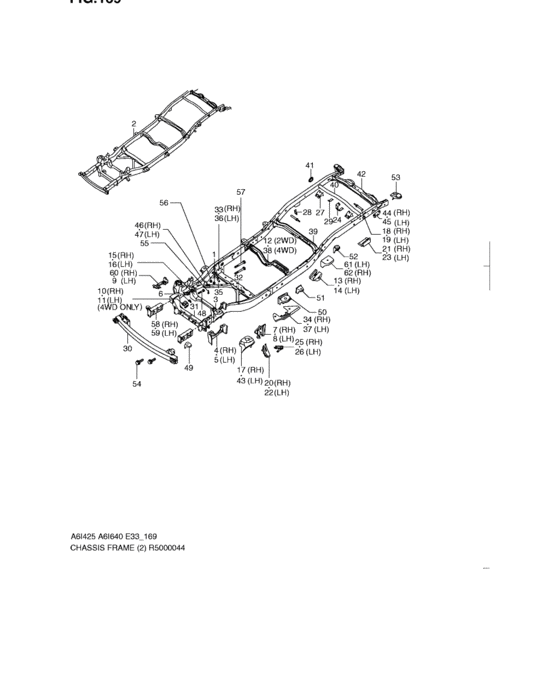

Chassis frame (CREW SHORT,CREW LONG) Diagram Suzuki EQUATOR
- Year
- -
- Sales region
- U.S.A.
- drive
- 2WD
- transmission
- MT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46636-82Z00-000
Nut
|
46636-82Z00-000 |
— | ||
|
1
|
1
46636-82Z30-000
Nut
09 MODEL,2009-6~ |
46636-82Z30-000 |
— | ||
|
2
|
2
57000-82ZC0-000
Frame assy
BASE,SPORT |
57000-82ZC0-000 |
— | ||
|
2
|
2
57000-82Z30-000
Frame assy
09 MODEL,RMZ-4,RMZ-4:SPORT PKG |
57000-82Z30-000 |
— | ||
|
2
|
2
57000-82ZD0-000
Frame assy
10 MODEL,RMZ-4,RMZ-4:SPORT PKG |
57000-82ZD0-000 |
— | ||
|
2
|
2
57000-82ZA0-000
Frame assy
SPORT:LONG:2WD |
57000-82ZA0-000 |
— | ||
|
3
|
3
57260-82Z00-000
Cross member, 3rd
|
57260-82Z00-000 |
— | ||
|
4
|
4
57120-82Z00-000
Bracket, front rh
|
57120-82Z00-000 |
— | ||
|
5
|
5
57170-82Z00-000
Bracket, front lh
|
57170-82Z00-000 |
— | ||
|
6
|
6
57811-82Z00-000
Reinforce, suspension mounting
|
57811-82Z00-000 |
— | ||
|
7
|
7
57812-82Z00-000
Reinforce, rod bracket
|
57812-82Z00-000 |
— | ||
|
8
|
8
57813-82Z00-000
Reinforce, rod bracket
|
57813-82Z00-000 |
— | ||
|
9
|
9
57871-82Z00-000
Bracket, engine mounting lh
|
57871-82Z00-000 |
— | ||
|
10
|
10
57410-82Z00-000
Bracket, diff mounting
RMZ-4,RMZ-4:SPORT PKG,SPORT:LONG |
57410-82Z00-000 |
— | ||
|
11
|
11
57460-82Z00-000
Bracket, diff mounting
RMZ-4,RMZ-4:SPORT PKG,SPORT:LONG |
57460-82Z00-000 |
— | ||
|
12
|
12
57814-82Z00-000
Bracket, center bearing
|
57814-82Z00-000 |
— | ||
|
13
|
13
57815-82Z00-000
Bracket, rear spring fr rh
|
57815-82Z00-000 |
— | ||
|
14
|
14
57816-82Z00-000
Bracket, rear spring fr
|
57816-82Z00-000 |
— | ||
|
15
|
15
57730-82Z00-000
Bracket, fr shock absorber rh
|
57730-82Z00-000 |
— | ||
|
16
|
16
57740-82Z00-000
Bracket, fr shock absorber lh
|
57740-82Z00-000 |
— | ||
|
17
|
17
57731-82Z00-000
Bracket, absorber mount rh
|
57731-82Z00-000 |
— | ||
|
18
|
18
57741-82Z00-000
Bracket, absorber mount lh
|
57741-82Z00-000 |
— | ||
|
19
|
19
57741-82Z10-000
Bracket, absorber mount lh
|
57741-82Z10-000 |
— | ||
|
20
|
20
57211-82Z00-000
Bracket, bumper rh
|
57211-82Z00-000 |
— | ||
|
21
|
21
57211-82Z10-000
Bracket, bumper rh
|
57211-82Z10-000 |
— | ||
|
22
|
22
57212-82Z00-000
Bracket, bumper lh
|
57212-82Z00-000 |
— | ||
|
23
|
23
57212-82Z10-000
Bracket, bumper lh
09 MODEL |
57212-82Z10-000 |
— | ||
|
24
|
24
57817-82Z00-000
Bracket, parking
|
57817-82Z00-000 |
— | ||
|
25
|
25
51823-82Z00-000
Bracket, brake hose
|
51823-82Z00-000 |
— | ||
|
26
|
26
51824-82Z00-000
Bracket, brake hose
|
51824-82Z00-000 |
— | ||
|
27
|
27
52825-82Z00-000
Bracket, brake hose rear
|
52825-82Z00-000 |
— | ||
|
28
|
28
52826-82Z00-000
Bracket, abs sensor
|
52826-82Z00-000 |
— | ||
|
29
|
29
52826-82Z10-000
Bracket, abs sensor
|
52826-82Z10-000 |
— | ||
|
30
|
30
57210-82Z10-000
Member, cross 1st
|
57210-82Z10-000 |
— | ||
|
31
|
31
57220-82Z00-000
Member, cross 2nd
|
57220-82Z00-000 |
— | ||
|
32
|
32
57230-82Z00-000
Member, cross 4th
|
57230-82Z00-000 |
— | ||
|
33
|
33
57231-82Z00-000
Gusset, 4th cross member
|
57231-82Z00-000 |
— | ||
|
34
|
34
57231-82Z10-000
Gusset, 4th cross member
|
57231-82Z10-000 |
— | ||
|
35
|
35
57234-82Z00-000
Reinforce, 4th cross member
|
57234-82Z00-000 |
— | ||
|
36
|
36
57232-82Z00-000
Gusset, 4th cross member
09 MODEL:CREW SHORT,10 MODEL |
57232-82Z00-000 |
— | ||
|
37
|
37
57233-82Z00-000
Gusset, 4th cross member
09 MODEL:CREW LONG,10 MODEL |
57233-82Z00-000 |
— | ||
|
38
|
38
57240-82Z00-000
Member assy, cross 5th
|
57240-82Z00-000 |
— | ||
|
39
|
39
57250-82Z00-000
Member assy, cross 6th
|
57250-82Z00-000 |
— | ||
|
40
|
40
57260-82Z10-000
Member, cross front upper
|
57260-82Z10-000 |
— | ||
|
41
|
41
27261-82Z00-000
Collar, cross member
|
27261-82Z00-000 |
— | ||
|
42
|
42
57270-82Z00-000
Member assy, cross 9th
|
57270-82Z00-000 |
— | ||
|
43
|
43
52827-82Z00-000
Panel assy, front side
|
52827-82Z00-000 |
— | ||
|
44
|
44
52828-82Z20-000
Spacer, side frame
|
52828-82Z20-000 |
— | ||
|
45
|
45
52828-82Z00-000
Spacer, side frame
09 MODEL,10 MODEL:CREW LONG |
52828-82Z00-000 |
— | ||
|
45
|
45
52828-82Z10-000
Spacer, side frame
10 MODEL:CREW SHORT |
52828-82Z10-000 |
— | ||
|
46
|
46
52829-82Z00-000
Support, cross member
|
52829-82Z00-000 |
— | ||
|
47
|
47
52829-82Z10-000
Support, cross member
|
52829-82Z10-000 |
— | ||
|
48
|
48
71516-82Z10-000
Bolt
|
71516-82Z10-000 |
— | ||
|
48
|
48
71516-82Z30-000
Bolt
09 MODEL,2009-6~ |
71516-82Z30-000 |
— | ||
|
49
|
49
57111-82Z00-000
Bracket, mounting 1st
|
57111-82Z00-000 |
— | ||
|
50
|
50
57112-82Z00-000
Bracket, mounting 2nd
|
57112-82Z00-000 |
— | ||
|
51
|
51
57113-82Z20-000
Bracket, mounting 3rd
|
57113-82Z20-000 |
— | ||
|
52
|
52
57115-82Z10-000
Bracket, mounting 2nd
09 MODEL:CREW LONG |
57115-82Z10-000 |
— | ||
|
52
|
52
57115-82Z00-000
Bracket, mounting 2nd
10 MODEL:CREW LONG:2WD |
57115-82Z00-000 |
— | ||
|
53
|
53
57116-82Z00-000
Bracket, mounting 5th
|
57116-82Z00-000 |
— | ||
|
54
|
54
5925A-82Z10-000
Bolt
|
5925A-82Z10-000 |
— | ||
|
55
|
55
5925A-82Z30-000
Bolt
|
5925A-82Z30-000 |
— | ||
|
56
|
56
5954A-82Z10-000
Nut
|
5954A-82Z10-000 |
— | ||
|
57
|
57
5925A-82Z40-000
Bolt
|
5925A-82Z40-000 |
— | ||
|
58
|
58
57110-82Z00-000
Extension, side member rh
|
57110-82Z00-000 |
— | ||
|
59
|
59
57160-82Z10-000
Extension, side member lh
BASE,SPORT,RMZ-4,RMZ-4:SPORT PKG |
57160-82Z10-000 |
— | ||
|
59
|
59
57160-82Z00-000
Extension, side member lh
SPORT:LONG |
57160-82Z00-000 |
— | ||
|
60
|
60
57821-82Z00-000
Bracket, engine mounting rh
|
57821-82Z00-000 |
— | ||
|
61
|
61
57810-82Z00-000
Bracket, cab mounting
09 MODEL |
57810-82Z00-000 |
— | ||
|
62
|
62
57820-82Z00-000
Bracket, cab body 4th
|
57820-82Z00-000 |
— | ||
|
62
|
62
57810-82Z00-000
Bracket, cab mounting
10 MODEL |
57810-82Z00-000 |
— |
