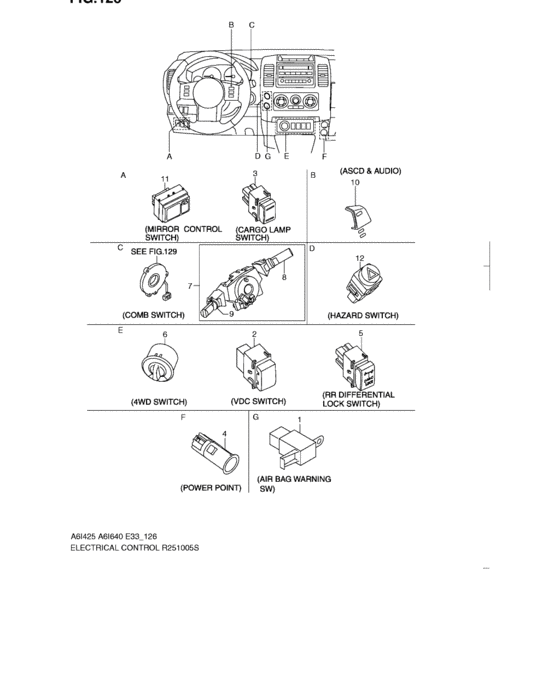

Electrical control (ELECTRICAL CONTROL) Diagram Suzuki EQUATOR
- Year
- -
- Sales region
- U.S.A.
- drive
- 2WD
- transmission
- MT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38930-82Z00-000
Warning assy instrument
|
38930-82Z00-000 |
— | ||
|
2
|
2
35180-82Z00-000
Switch assy, vdc
W/VDC:HILL DECENT |
35180-82Z00-000 |
— | ||
|
2
|
2
35180-82Z10-000
Switch assy, vehicle dynamics
W/VDC |
35180-82Z10-000 |
— | ||
|
3
|
3
39620-82Z00-000
Switch assy, cargo lamp
|
39620-82Z00-000 |
— | ||
|
4
|
4
39420-82Z00-000
Body, socket
|
39420-82Z00-000 |
— | ||
|
5
|
5
35180-82Z20-000
Switch assy, diff lock
RMZ-4,RMZ-4:SPORT PKG |
35180-82Z20-000 |
— | ||
|
7
|
7
37400-82Z01-000
Switch assy, combination
09 MODEL,BASE,PREMIUM,SPORT,SPORT LONG |
37400-82Z01-000 |
— | ||
|
7
|
7
37400-82Z70-000
Switch assy, combination
10 MODEL,BASE,PREMIUM,SPORT,SPORT LONG |
37400-82Z70-000 |
— | ||
|
7
|
7
37400-82Z21-000
Switch assy, combination
RMZ-4 |
37400-82Z21-000 |
— | ||
|
7
|
7
37400-82Z31-000
Switch assy, combination
RMZ-4:SPORT PKG |
37400-82Z31-000 |
— | ||
|
8
|
8
37310-82Z10-000
Switch assy, wiper
|
37310-82Z10-000 |
— | ||
|
8
|
8
37310-82Z20-000
Switch assy, wiper
2009-5~ |
37310-82Z20-000 |
— | ||
|
9
|
9
37400-82Z50-000
Switch assy, turn signal
BASE,PREMIUM,SPORT,SPORT LONG |
37400-82Z50-000 |
— | ||
|
9
|
9
37400-82Z60-000
Switch assy, turn signal
BASE,PREMIUM,SPORT,SPORT LONG,2009-5~ |
37400-82Z60-000 |
— | ||
|
9
|
9
37210-82Z30-000
Switch assy, turn signal
RMZ-4,RMZ-4:SPORT PKG |
37210-82Z30-000 |
— | ||
|
9
|
9
37210-82Z20-000
Switch assy, turn signal
RMZ-4,RMZ-4:SPORT PKG:2009-5~ |
37210-82Z20-000 |
— | ||
| replacement | |||||
|
9
|
9
37210-82Z30-000
Switch assy, turn signal
RMZ-4,RMZ-4:SPORT PKG:2009-5~ |
37210-82Z30-000 |
— | ||
|
10
|
10
37460-82Z30-000
Switch assy, steering
W/CRUISE CONTROL |
37460-82Z30-000 |
— | ||
|
11
|
11
37460-82Z40-000
Switch assy, combination
N/TELEPHONE |
37460-82Z40-000 |
— | ||
|
11
|
11
37460-82Z20-000
Switch assy, combination
W/TELEPHONE |
37460-82Z20-000 |
— | ||
|
12
|
12
37950-82Z00-000
Switch assy, mirror
|
37950-82Z00-000 |
— | ||
|
13
|
13
37430-82Z00-000
Switch assy, hazard warning
|
37430-82Z00-000 |
— | ||
